Manual for MULTI Winch 3000 & 5000
TREJON AB - 18 - www.trejon.se

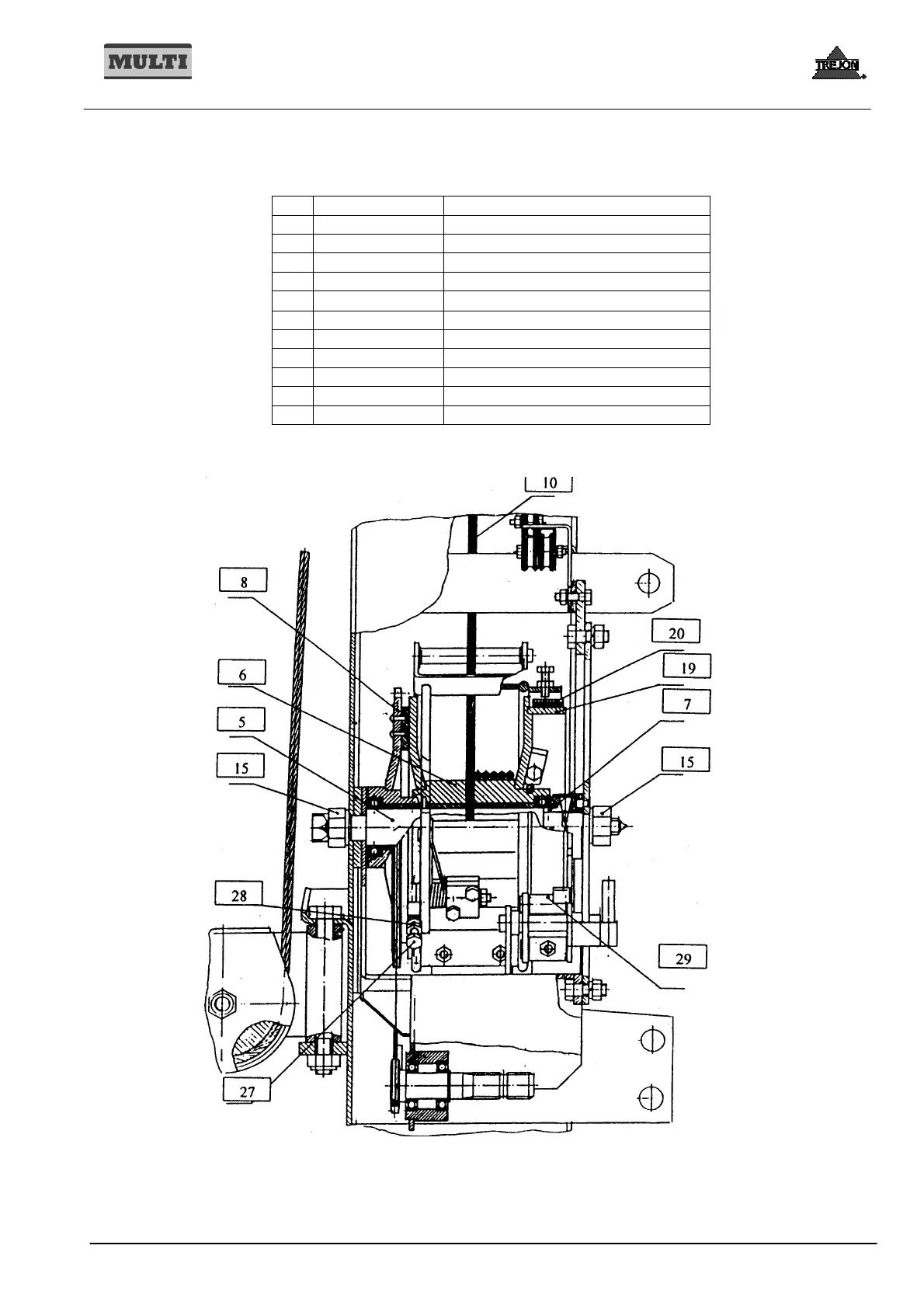

Draw 3 WINCH 5000
Nr. Marking Description
5. 075.01.00.001 Shaft
6. 075.01.01.000 Drum
7. 075.01.09.000 Coupling collar
8. 075.01.02.000 Driven chain wheel
10.
Wire ∅ 10 L=50 m
15. Nut M24
19. 075.01.01.000 Stopping belt of drum
20. 075.01.05.200 Stopping belt
27. Bolt M8 x 35
28. Nut M8
29. Oiling hole
