FIG. 11

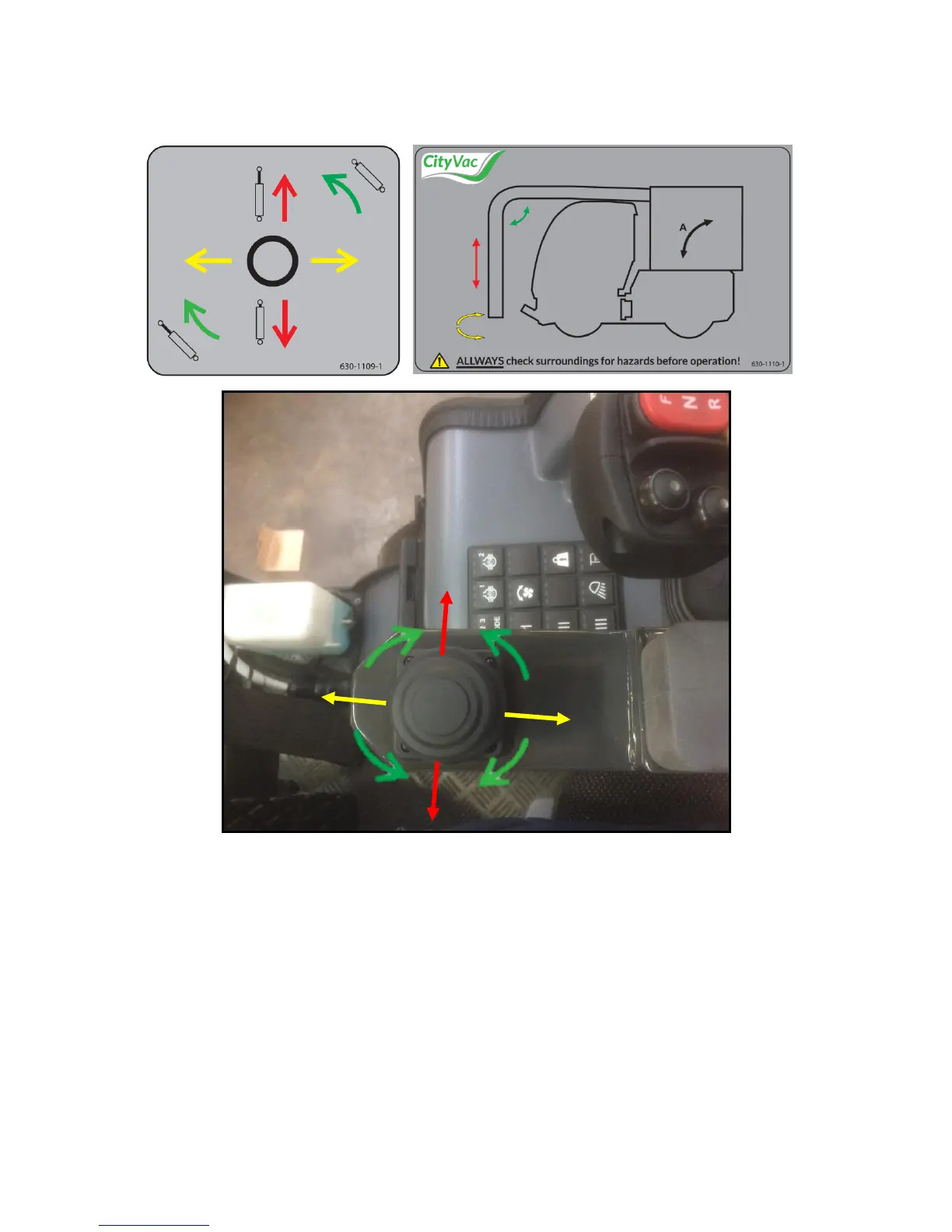

To operate the Trunk attachment, use the Joystick on the armrest shown above in Fig. 11
and follow the guidelines outlined below.
1. (Slew) To slew the trunk from left to right (Yellow Outline) push the joystick forwards
and backwards.
2. (Extend & Retract) To extend and retract the trunk (Red Outline) move the joystick
from left to right.
3. (Reach) To reach further forward or pull the trunk closer towards the operator
(Green Outline) twist the joystick knob.
