LOOM INSTALLATION AND WIRING INSTRUCTIONS

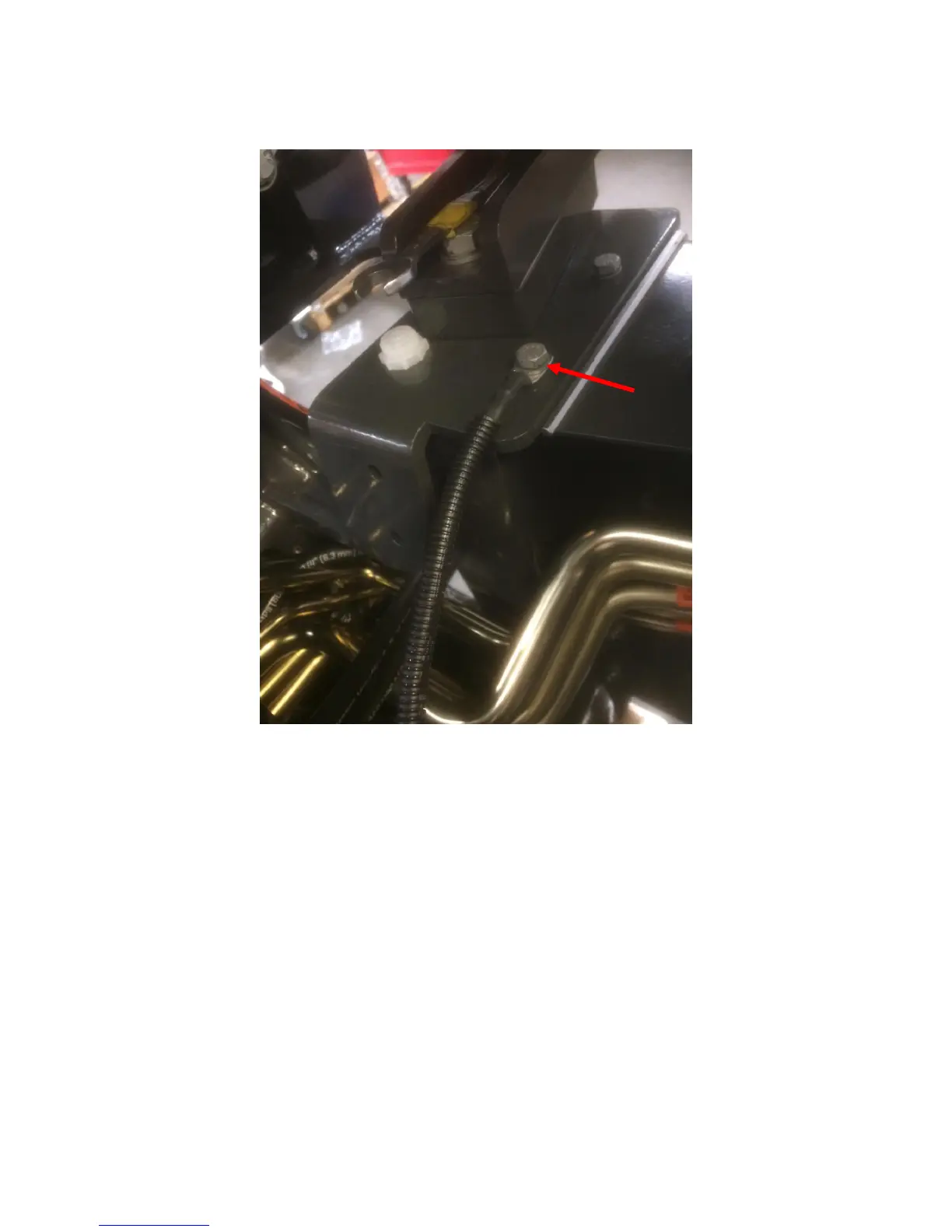

FIG. 12
The loom supplied consists of an earth cable, socket for plugging in attachment, 2-pin power
supply plug, 6-pin joystick plug and a 15-pin Bucher controller plug. As shown above in Fig.
12, bolt the Earth cable down beside the front RH cab mount. The hole available is currently
used for mounting the horn behind the front auxiliary steel pipes.
