QP TRASH PUMPS — IMPELLER REPLACEMENT KIT INSTRUCTIONS — REV. #0 (03/17/09) — PAGE 2 OF 2
MULTIQUIP INC.
POST OFFICE BOX 6254 • CARSON, CA 90749
310-537-3700 • 800-421-1244 • FAX: 310-537-3927
E-MAIL: mq@multiquip.com • www.multiquip.com

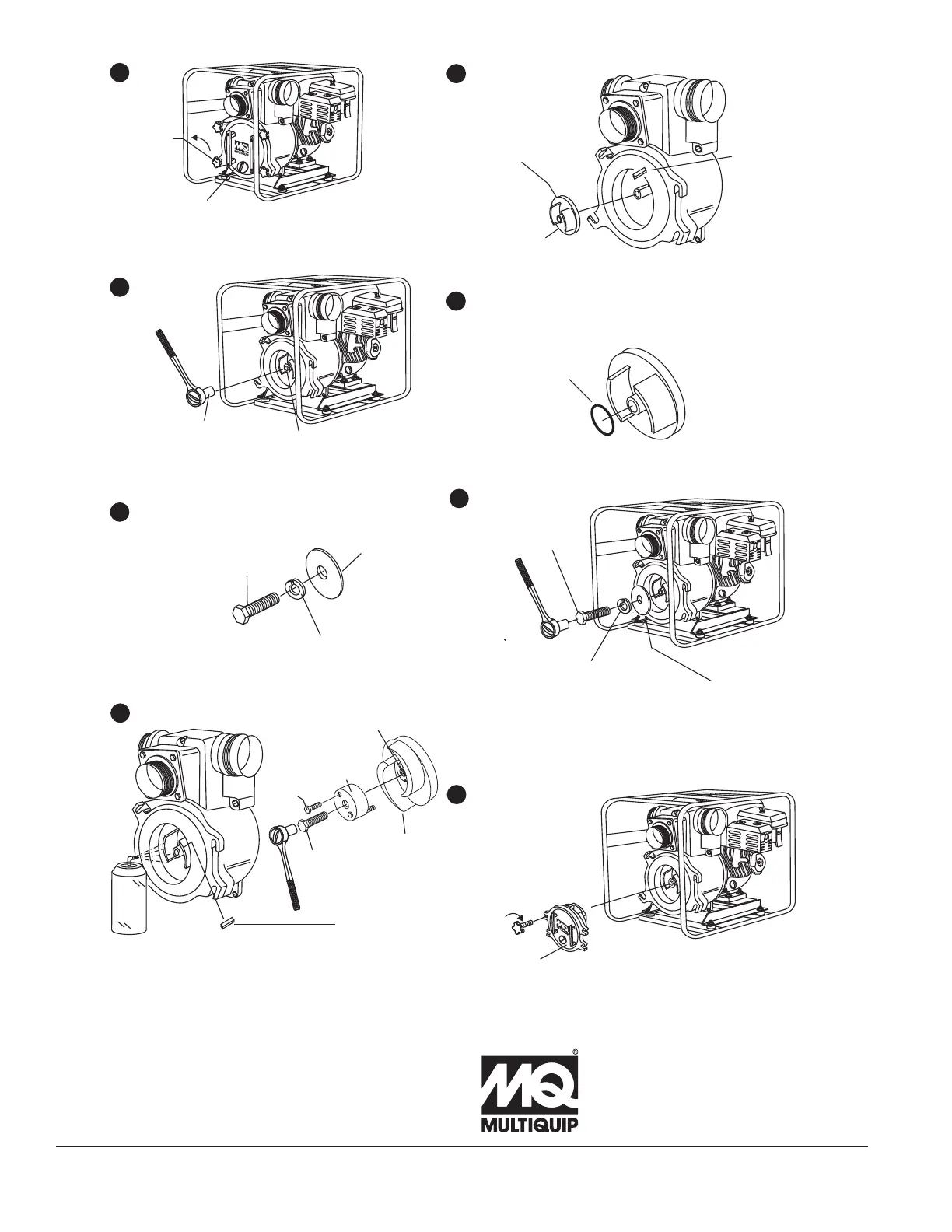

Impeller ReplacementFigure 1.
IMPELLER BOLT
(REMOVE)
3/8 RATCHET
12 MM
SOCKET
DRAIN
COVER
(INSTALL)
DRAIN
COVER
LOCKING
KNOB (4)
(TIGHTEN)
B
G
C
EXISTING
IMPELLER
LOCK WASHER
P/N 0451290080
(DISCARD)
EXISTING
IMPELLER
BOLT
P/N 0191190525
(DISCARD)
DRAIN
COVER
(REMOVE)
DRAIN
COVER
LOCKING
KNOB (4)
(LOOSEN)
A
F
H
D
EXISTING
IMPELLER
(DISCARD)
EXISTING
SHAFT KEY
P/N 0482200180
(DISCARD)
E
NEW
IMPELLER
P/N 1889040031
QP2TE/QP2TH
(INSTALL)
USE CHEMSEARCH, A
MOLY LUBRICANT. FREES
FROZEN BOLTS AND NUTS.
EXISTING
IMPELLER
FLAT WASHER
P/N 43592012400011
(INSTALL)
NEW
IMPELLER
LOCK WASHER
P/N 0458220080
(INSTALL)
NEW
IMPELLER
BOLT
P/N 0191190544
(INSTALL)
NEW
O-RING
P/N 0482200180
(INSTALL)
EXISTING
IMPELLER
FLAT WASHER
P/N 43592012400011
(RETAIN)
NEW
SHAFT KEY
P/N 0520030310
(INSTALL)
NEW
IMPELLER
P/N 2258040031
QP2TZ
(INSTALL)
CHEM
SEARCH
MOLY
LUBRICANT
WHEEL-TYPE
PULLER
70 MM
BOLT
DRILL HOLE
THEN USE 1/4” TAP
7/32”
TORQUE TO
22 FT. LBS.
(30Nm)
1/4”
BOLT
