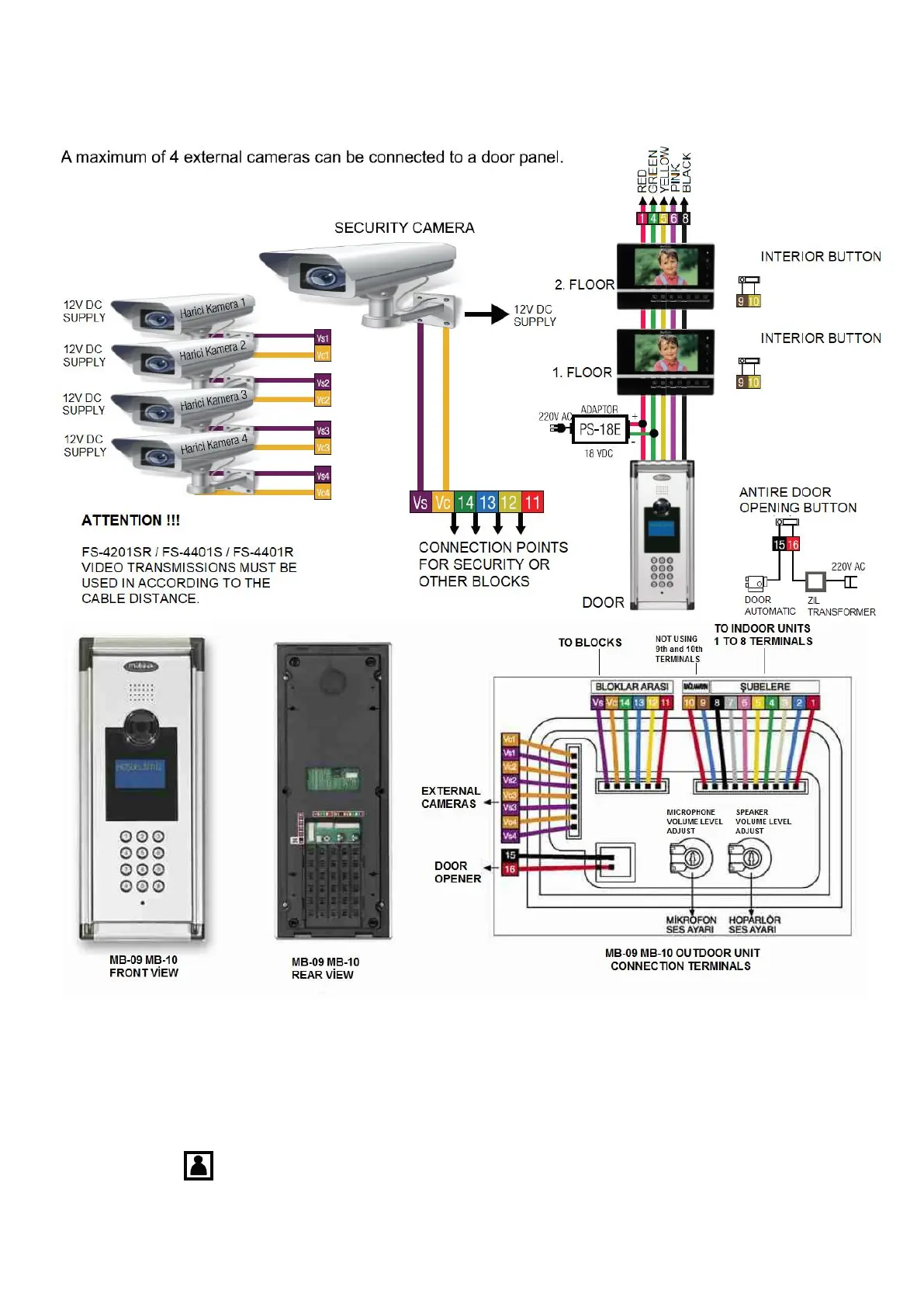

4.WIRING DIAGRAM OF MB10 PANELS
NOTES
1. The total number of external cameras connected to a building cannot be more than 5.
2. The number of external cameras connected to the door panel is defined by programming.
3. The image of the camera door panel and external cameras in a building is taken by repeatedly
pressing the button on the monitor.
