Munters EM50 User Manual

© Munters AB, 2018
15
Assembling guidelines
3.

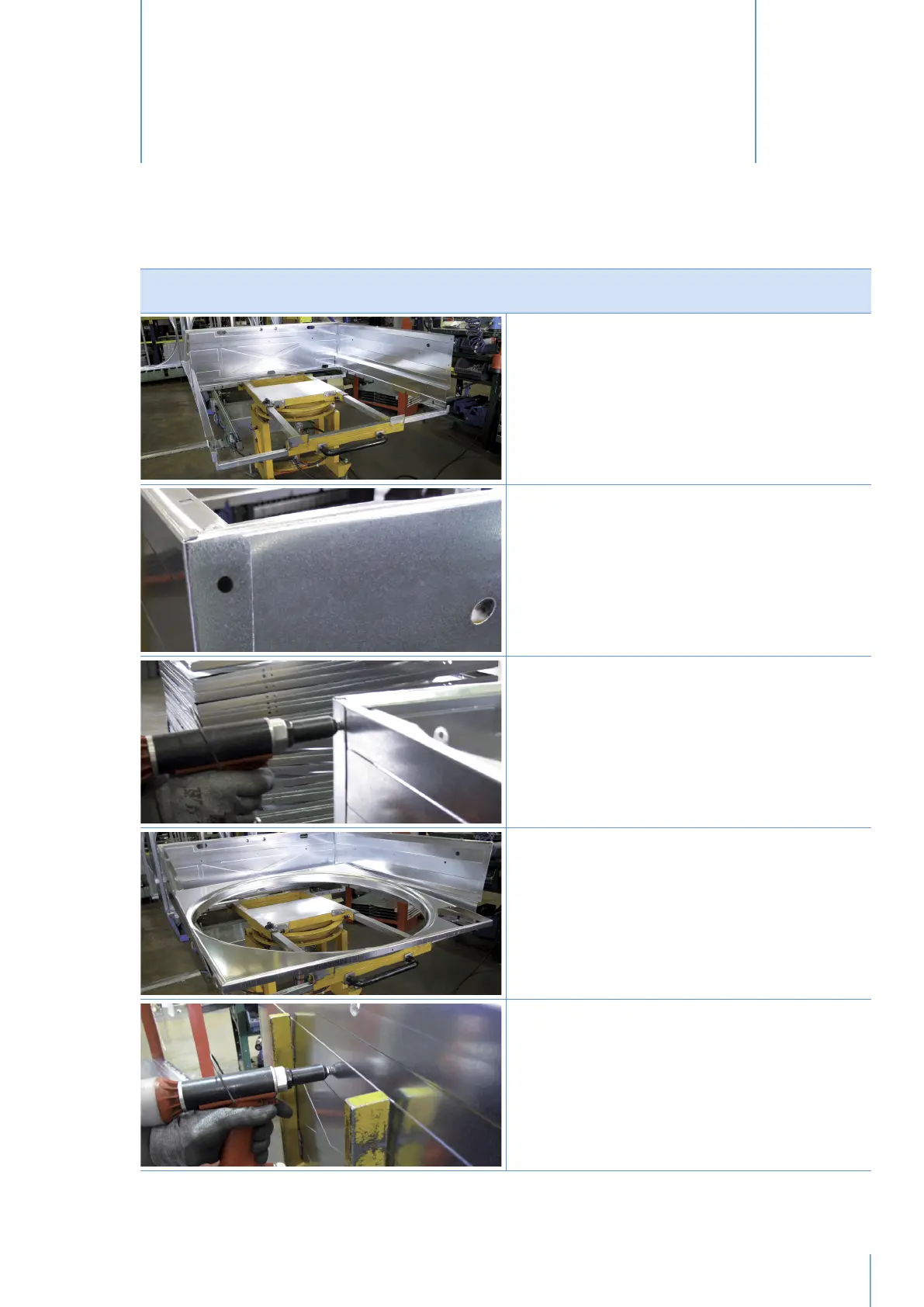

HOUSING ASSEMBLING
Take the bottom panel (ref.1.7/Body), the side panels
(ref.1.4/Body) and place these taking care that slot
for the plastic bearing is downward.
Before fixing the bottom and the side panels make
sure that these pieces are in the right position as in
the picture.
Join bottom panel to side panels and fix qty. 4 pop
rivets (ref.7.1/Bolts&nuts) for each edge by using
riveting machine (ref.1/Assembling Tools).
Insert Venturi (ref.1.6/Body) into the housing on the
right side as in the picture.
Fix Venturi to bottom panel and then to side panels
with qty.1 pop rivets for side.
