Munters EM50 - Safety Meshes Assembling

© Munters AB, 2018
21

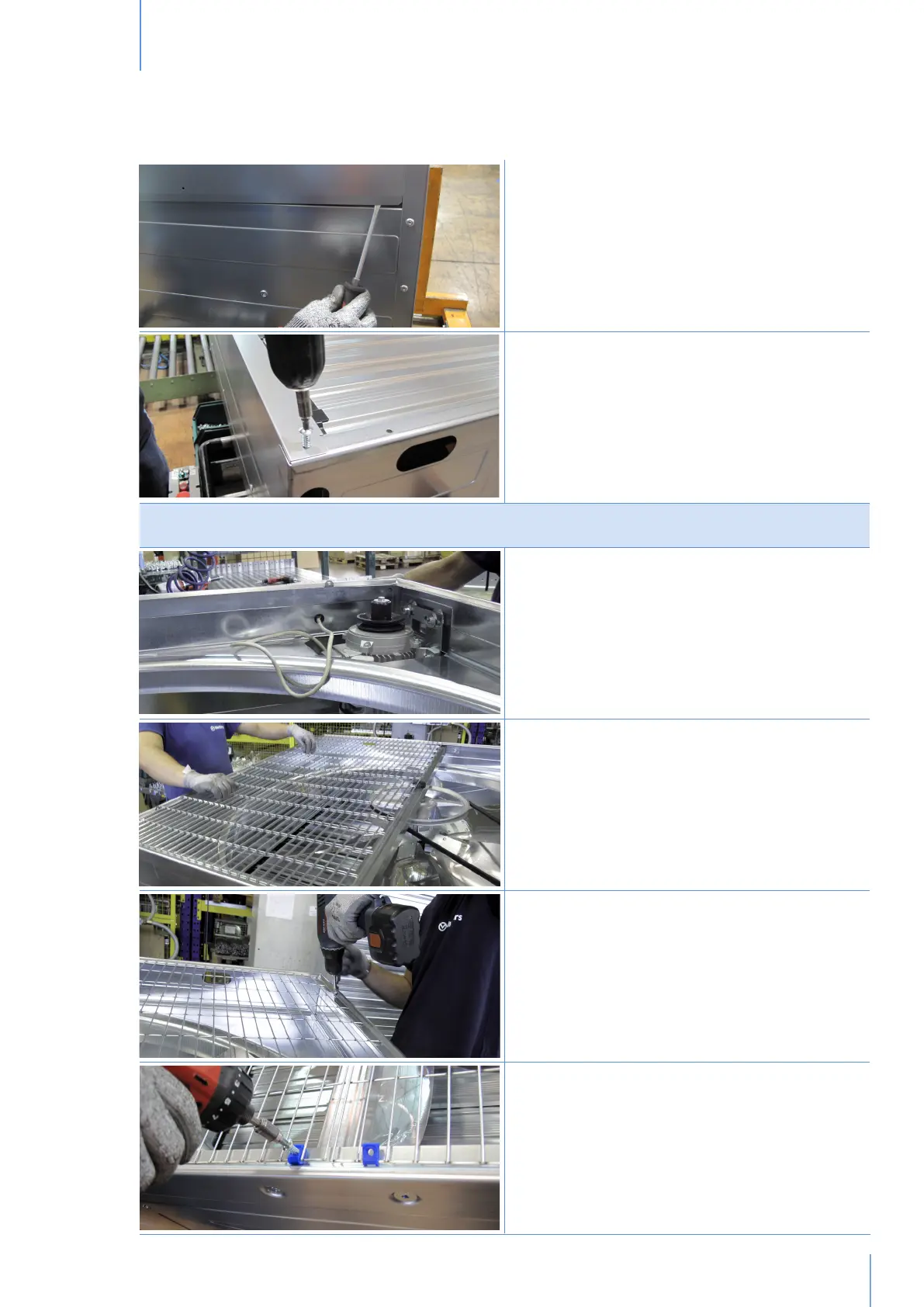

By means of a screwdriver (ref.13/Assembling tools)
insert cover plate (ref.1.3/Body) over the fan
housing.
Fix the cover plate on each side by using q.ty 2
Ø6,3×19 screws (ref.7.13/Bolts&nuts) with the
pneumatic screwdriver (ref.3/Assembling tools).
SAFETY MESHES ASSEMBLING
Turn the fan up side down and insert the electric cable
into the proper hole placed on the side panel.
Put the qty. 2 safety meshes guard (ref.1.1/Body) on
the inlet side of the fan.
Fix the qty. 6 screws (ref.7.13/Bolts&nuts) on the fan
side (qty. 3 for each side are required).
Assembling guidelinesChapter3
Fix the screws (ref.7.13/Bolts&nuts) with the plastic
clips (ref.7.14/Bolts&nuts) in correspondence of the
propeller central support on the top panel and the
bottom panel.
