Munters EM50 - CE Kit Assembling; Pyramidal Shape Mesh Assembling

© Munters AB, 2018
22

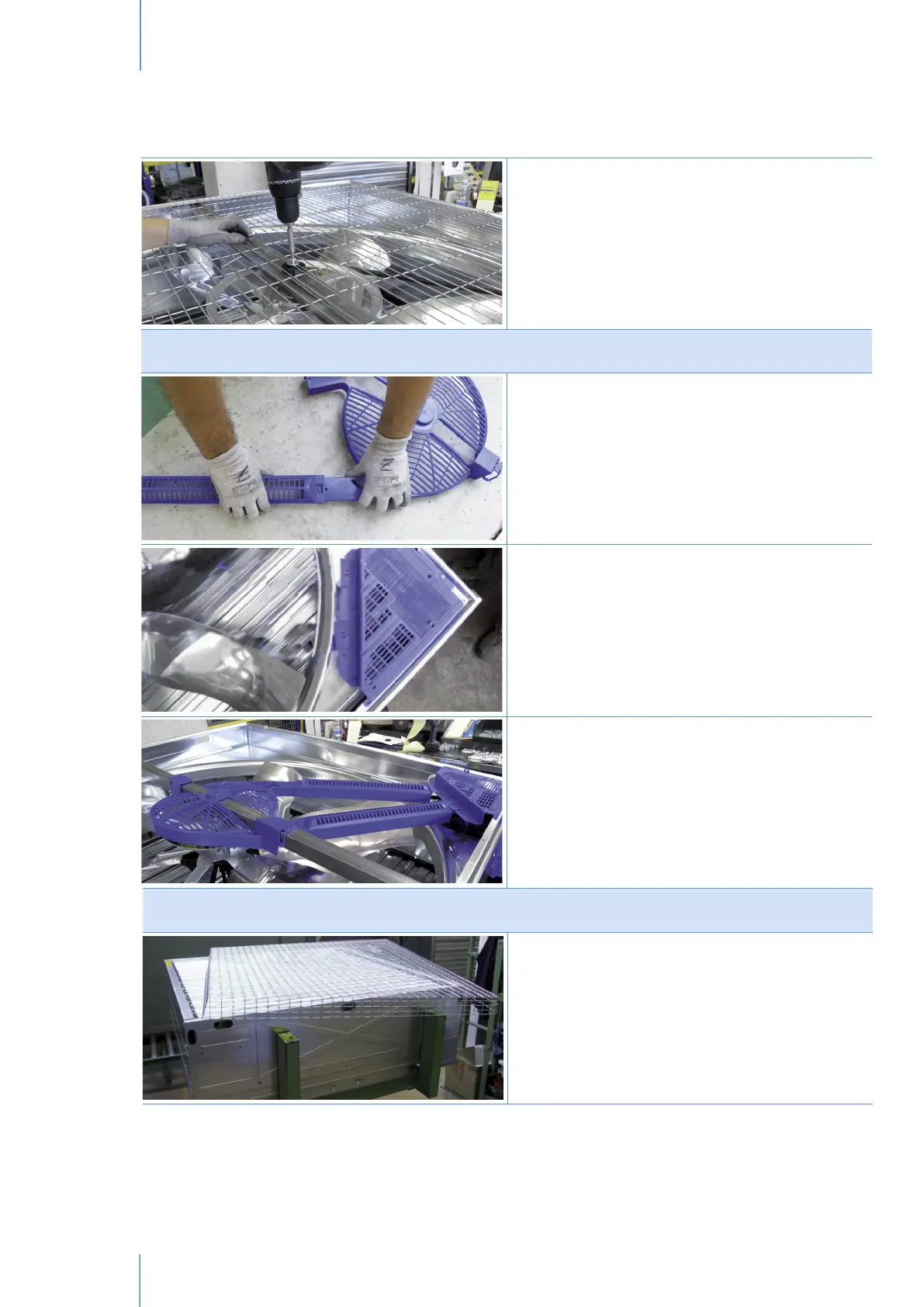

Fix the screw with the washer (ref.7.13/Bolts&nuts)
into the central pulley axle. Fix all the components by
using the pneumatic screwdriver (ref.3/Assembling
tools).
CE KIT ASSEMBLING
Before assembling the safety meshes complete the CE
kit. Join the plastic safety protection for central pulley
(ref.8.1/Optional kits) with plastic safety protection
for the V-belt (ref.8.2/Optional kits).
Place the plastic safety protection for the motor pulley
(ref.8.3/Optional kits) in the motor corner (make sure
that the plastic square pins are inserted in the proper
housing holes). Join the plastic safety protection for the
motor pulley.
Put the assembled CE plastic kit protection (make sure
that the groove of the plastic safety protection for the
V-belt are centered along the V-belt). Follow the safety
mesh guard assembling procedures and then fix the
complete assembled you have obtained by mean of
qty.1 screw (ref.8.4/Optional kits).
Assembling guidelinesChapter3
PYRAMIDAL SHAPE MESH ASSEMBLING
Put the pyramidal shape mesh (ref.8.5/Optional kits)
on the fan as in the picture. The rectangular holes must
be positioned horizontally.
