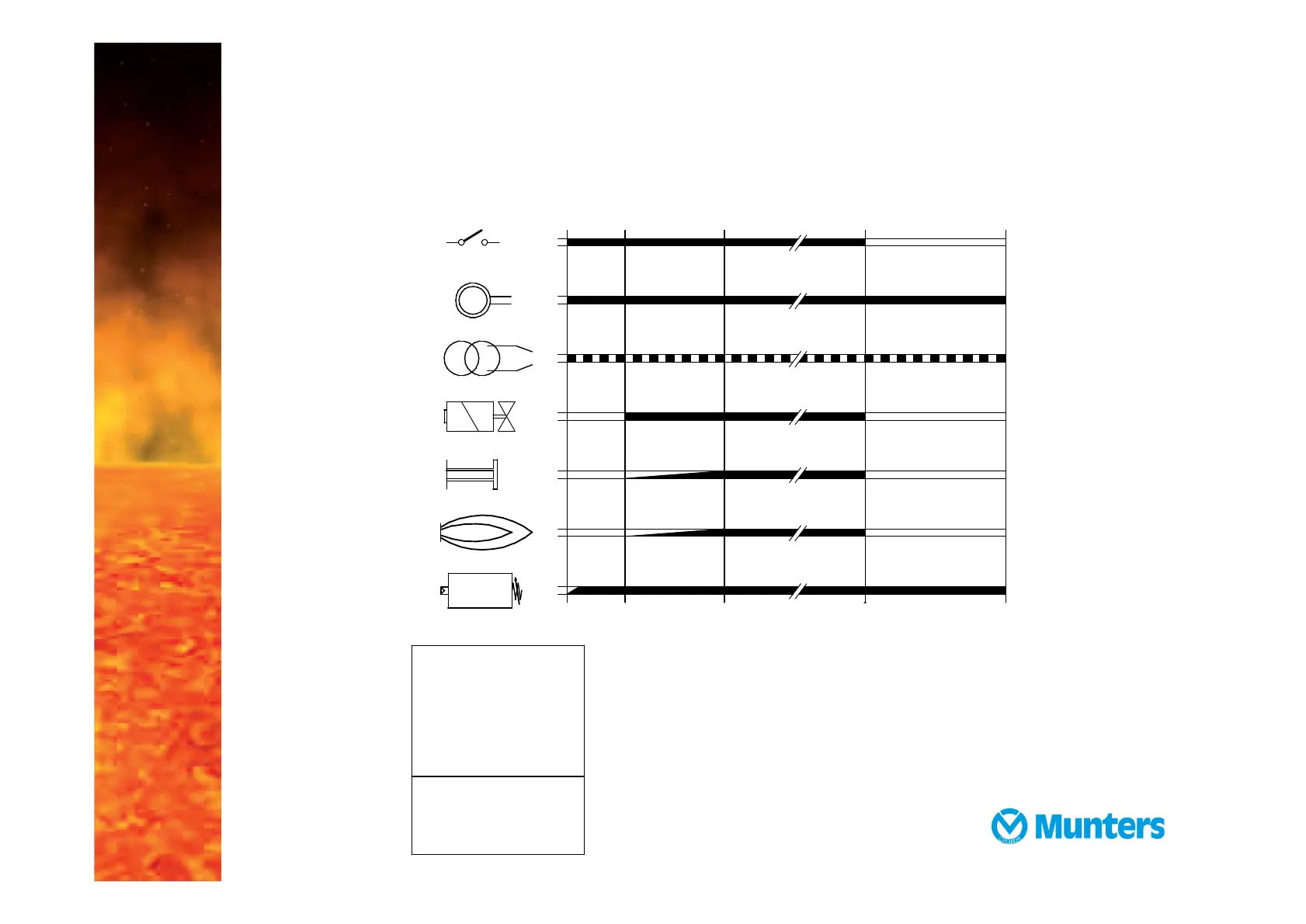

Ignition Sequence
GRY-D 60 & GRY-I 15/25/40
SW
M
T
PH
SV
F
T1 T2 T3 T4
PS
10 sec 16 sec 45 sec
M
0 secXX
work end
SW
M
T
SWITCH
MOTOR
TRANSFORMER
SV
AIR SOLENOID VALVE
PH PHOTOCELL
F
FLAME
PS
AIR PRESSURE SWITCH
T1 PREVENTILATION TIME
T2 START TIME
T3 WORK TIME
T4 POST-VENTILATION TIME
