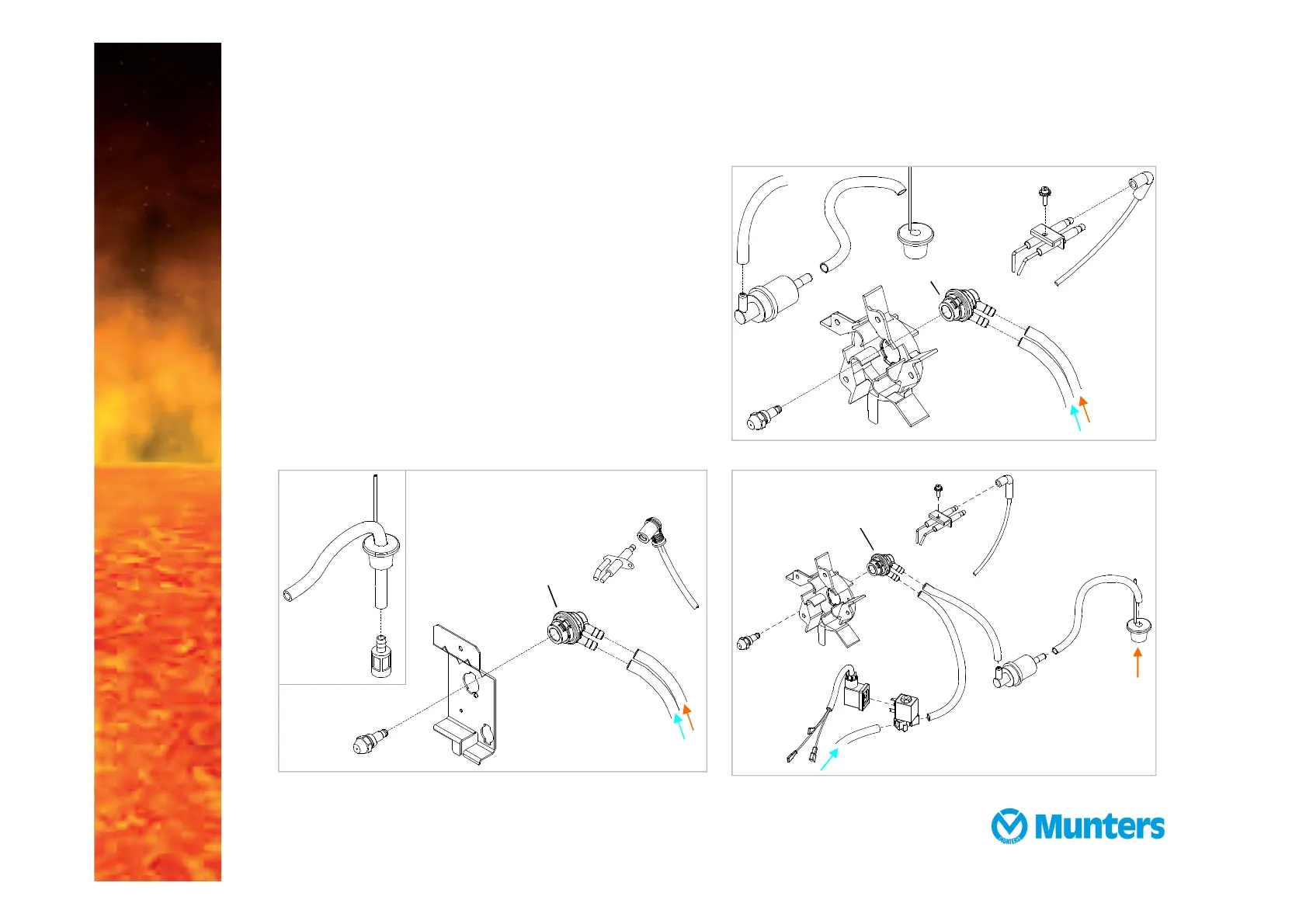

Fuel Circuit

The fuel circuit is composed of :

 fuel tank

 fuel suction hose

 fuel filter

 (air compressor)

 (air valve)

 (air hoses)

 nozzle holder (combustion head)

 nozzle

GRY-D 15 WU GRY-I Models & GRY-D 60

GRY-D Models (except 15 and 60)

Nozzle Holder

Nozzle

Nozzle Holder

Air

Fuel

Air

Fuel

Burner

Head

Burner

Head

Burner

Head

Fuel

Air

Air Cutoff

Valve

Fuel

Filter

Fuel

Filter

Fuel

Filter

Vent

Pipe

Vent

Pipe

Direct-Fired Diesel Heaters3
General Assembly4
Fan Motor Assembly6
Fuel Circuit7
Air Compressor Assembly8
Rotary Compressor9
Air Compressor10
Inlet (Low Pressure) Filter10
Outlet (High Pressure) Filter11
Burner Assembly12
Burner Assembly13
Combustion Head14
Nozzle & Nozzle Holder16
Standard Nozzle17
Syphon Nozzle17
Burner Head on Combustion Chamber18
Combustion Chamber Detail20
Fuel Filter and Air Valve21
Safety Controls22
Flame Sensor and Thermostat22
Line Fuse23
Air Pressure Switch24
Principle of Operation25
Ignition Sequence27
Wiring Diagrams29
Service31
Rotor-Stator Clearances32
Correct Stator Vs. Rotor Positioning33
Air Pressure Adjustment34
Appearance of Front Disc35
Ignition Electrode Gap36
Electronic Control Boards37
Pressure Adjustment Valve38
Air Ducting39
Draining Fuel from Tank40
Fuel Suction Hose41
Tank Cap42
Typical Air Temperatures on Direct and Indirect Heaters43
Service & Maintenance44
Measuring Devices44
