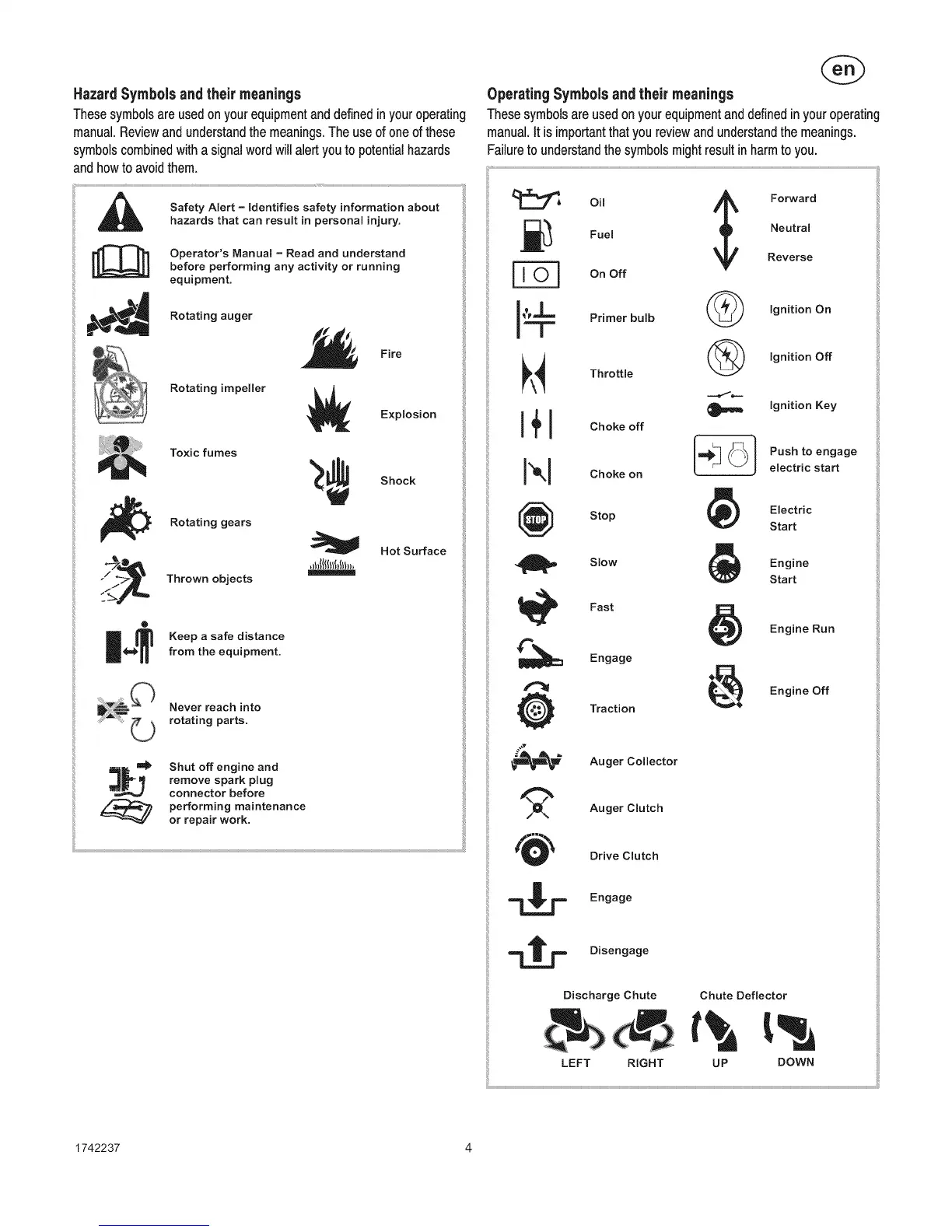

Hazard Symbols and their meanings
Thesesymbols are used on yourequipmentand defined inyour operating
manual. Reviewand understandthe meanings.The use ofone of these
symbolscombined witha signalword will alert you to potentialhazards
and how to avoidthem.
Safety Alert - identifies safety information about
hazards that can result in personal injury.
Operator's Manual - Read and understand
before performing any activity or running
equipment.
Rotating auger
Fire
o
Rotating impeller __
Explosion
Toxic fumes
_$ Shock
Rotating gears
Hot Surface
,l_lll%l_Sm),
Thrown objects
Keep a safe distance
from the equipment.
Never reach into
rotating parts.
Shut off engine and
remove spark plug
connector before
performing maintenance
or repair work.
Operating Symbolsand their meanings
Thesesymbols areused onyour equipmentand defined inyour operating
manual,it is importantthat you reviewand understandthe meanings.
Failureto understandthe symbols might result inharmto you.
Oil _ Forward
=_ Fuel Neutral
Reverse
On Off
I_=_= Primerbu, b (_ ,gnitionOn
_\_ @ Ignition Off
Throttle
Ignition Key
! + I Chokeoff
Push to engage
I×l c.o.ooo
electric start
@
Stop
Electric
Start
Slow
Fast
Engage
O Traction
Engine
Start
Engine Run
Engine Off
_%_ Auger Collector
Auger Clutch
_ Drive Clutch
Engage
Disengage
Discharge Chute
LEFT RIGHT
Chute Deflector
UP
DOWN
