REPAIR PARTSMODEL 461004x92A
46
F–040741L

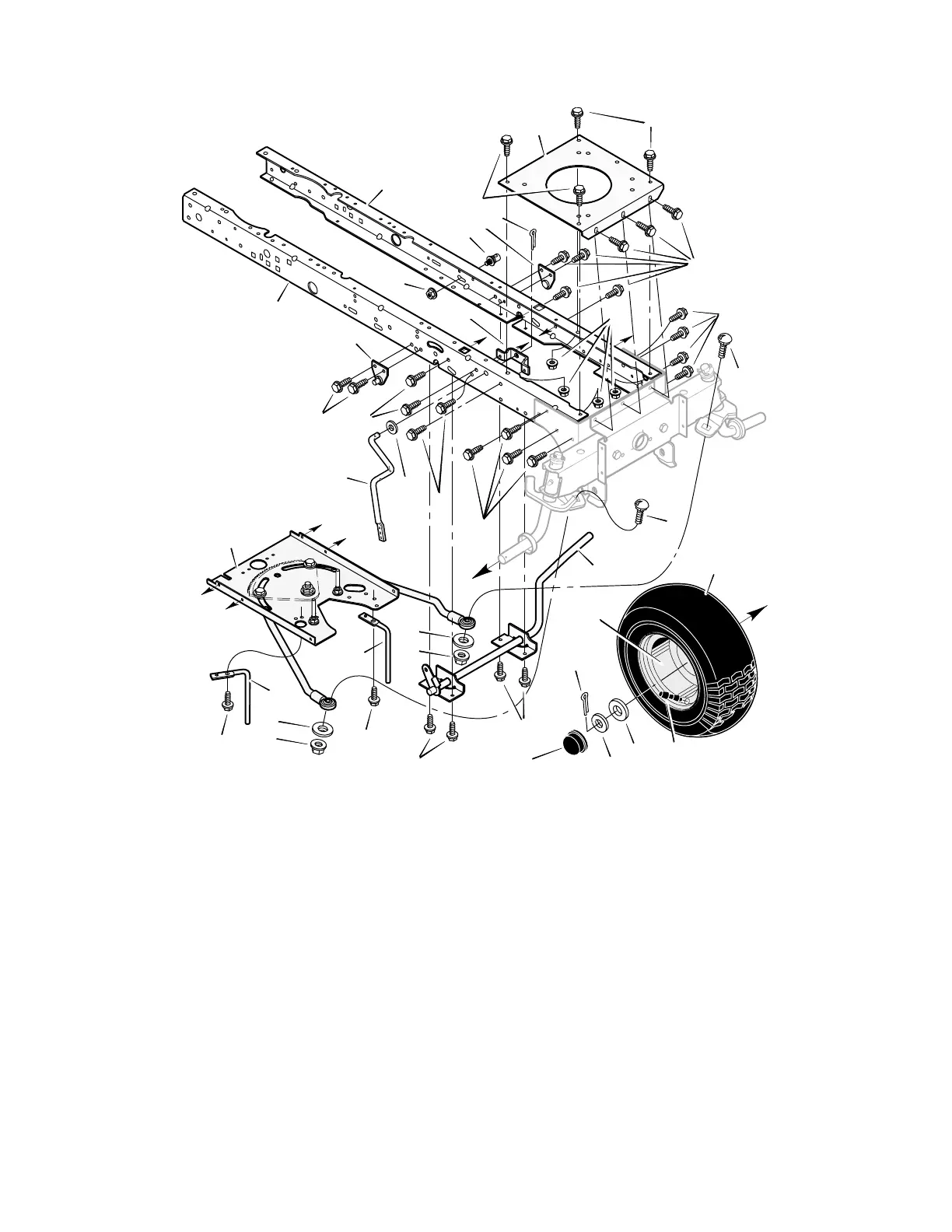

FRONT FRAME ASSEMBLY
1
2
3
4
5
5
6
7
8
7
7
7
11
11
7
7
12
13
77
10
9
14
7
7
16
15
17
18
16
15
18
17
19
20
21
22
23
24
25
26
Key
No. Part No. Description
Key
No. Part No. Description
1 1001268E701 Frame, Right
2 1001269E701 Frame, Left
3 015x84 Nut, Flange
4 690182 Stud, Swivel
5 690406E700 Bracket Ass’y, Suspension
6 030x20 Pin, Cotter
7 26x249 Screw
8 094006E701 Plate, Engine
9 015x88 Nut
10 094005E700 Bracket, PTO Crank
11 002x87 Bolt, Carriage
12 017x57 Washer
13 690394E701 Crank, PTO
14 094038E700 Lever, Brake/Clutch
15 17x152 Washer
16 015x41 Nut
17 025x15 Screw
18 690192E701 Guide, Belt
19 † Assembly, Steering *
20 092644–601 Wheel & Tire Assembly
21 024393 Tire *
–– 407049 Tube
–– 093604 Bearing, Wheel
22 024373 Stem, Valve
23 17x194 Washer
24 17x114 Washer
25 030x49 Pin, Cotter
26 094618 Cap, Hub
* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.
† See the Sector Gear Repair Parts page.
