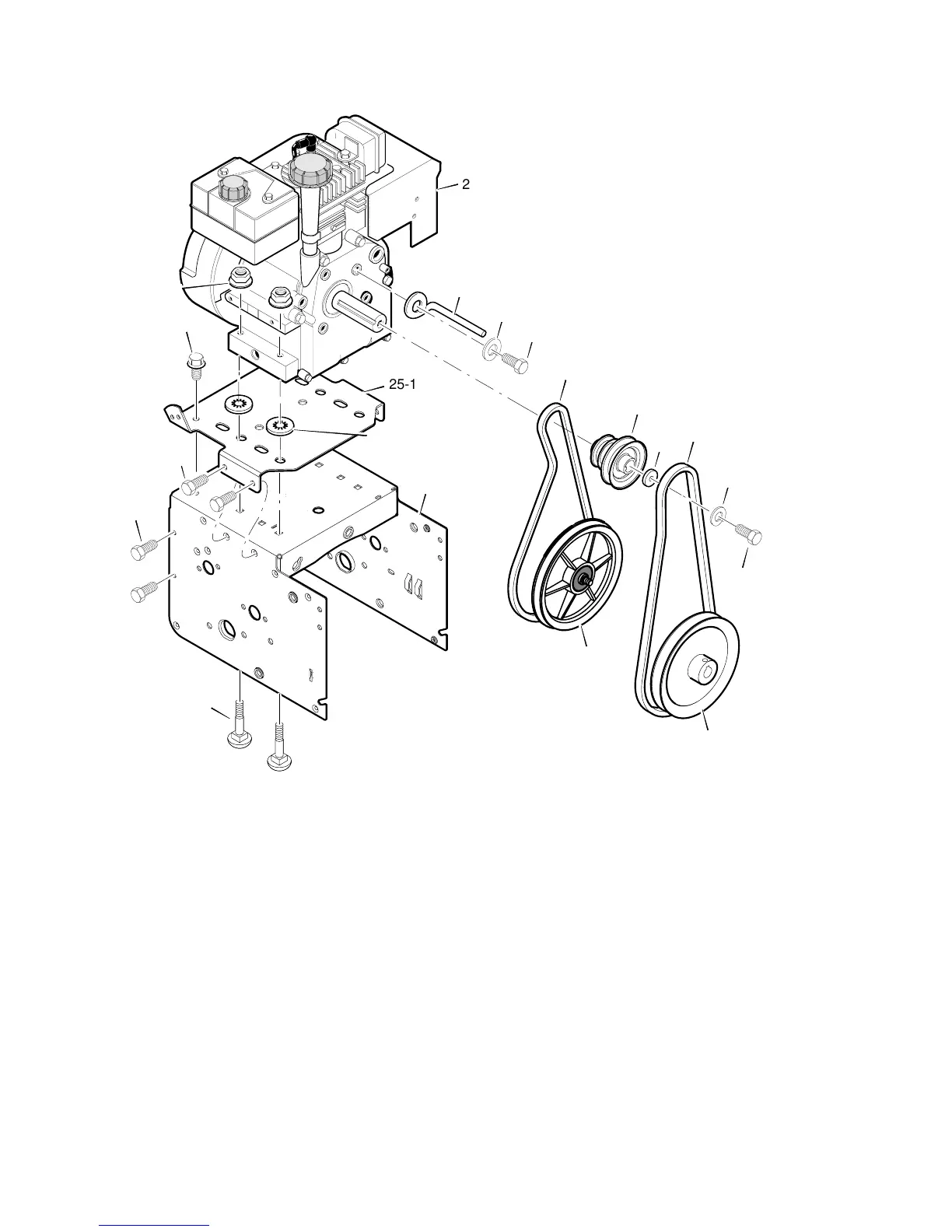

MODEL 624504x4C REPAIR PARTS
41
F-031011L
ENGINE
Á
ÁÁ
ÁÁ
25-1
2
3
25-4
25-2
25-3
6
5
20
22
24
18
8
10
12
16
Ref.Drive Page
Ref. Auger Housing Page
14
25-2
Key No. Part No. Description
2 ------ ENGINE
3 002x97 BOLT, CARRIAGE 5/16-18
5 028x76 RETAINER, PUSH
6 710026 NUT 5/16-18
8 1501109 PULLEY, ENGINE
10 710247 WASHER
12 71063 WASHER .38ID
14 71015 SCREW, 3/8-24X1.00
16 579932 BELT, V
18 585416 BELT, V 4L
20 1501201 GUIDE, BELT
22 71060 WASHER .31X.58X.08
24 710097 SCREW, 5/16-24X .75
25 ------ FRAME, MOTORBOX (5-11HP)
25-1 1501062E245 PLATE, ENGINE MOUNT
25-2 310169 SCREW, TAP 1/4-20 X .63
25-3 25x020 SCREW, TAP 5/16-18 X .50
25-4 1501049E245 FRAME, MOTOR BOX
-- F-031011L OWNER’S MANUAL
