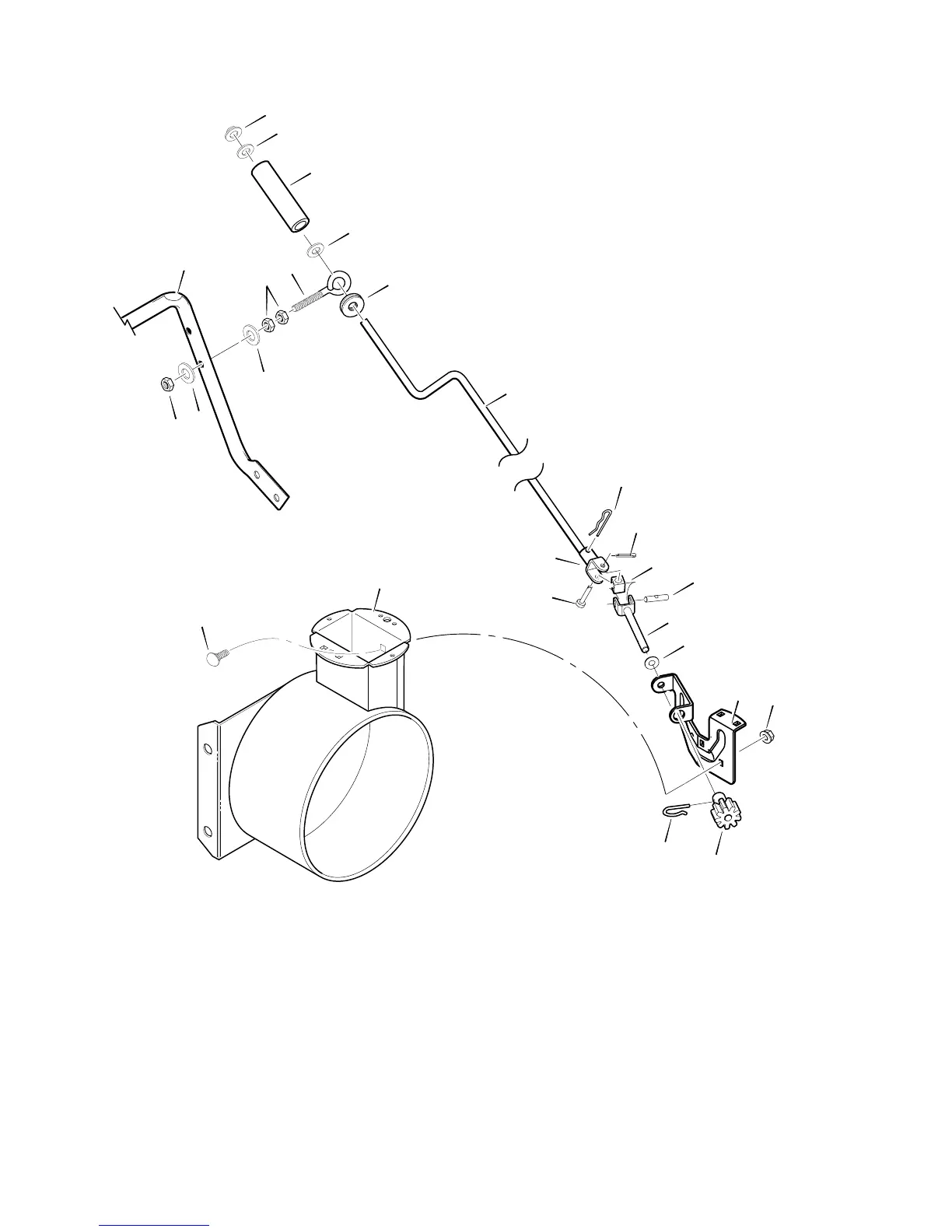

MODEL 624504x4C REPAIR PARTS
52
F-031011L
CHUTE ROD
CROD105B
856
855
854
855
861
860
863
864
864
867
Ref. Handle Assy
870
852-5
852-11
852-9
852-8
852-3
868
852-13
852-10
852-1
852-2
852-6
869
Ref. Auger Housing Assy
852-7
Key No. Part No. Description Key No. Part No. Description
852-1 1501309 YZ ASSEMBLY, YOKE & ROD
852-2 313431 WASHER, CURVED SPRING
852-3 1501067 GEAR, CHUTE ROTATION 9T
852-5 579493 PIN, COTTER
852-6 1501306E701 BRACKET, GEAR MOUNT
852-7 1501293 PIN, HAIR
852-8 1501075 YZ ASSEMBLY, YOKE ADAPTER YZ
852-9 711682 PIN, HAIR
852-10 578060 PIN, UNIVERSAL JOINT
852-11 578309 PIN, CLEVIS
852-13 578063 HOUSING, UNIVERSAL
854 51443 KNOB, SLEEVE
855 309312 FLATWASHER
856 73664 NUT, PUSH ON 3/8”
860 581618 EYE BOLT 3/8-16X6.00
861 148 GROMMET, EYE BOLT
863 71045 NUT, 3/8-16 HEXJAM
864 71072 FLATWASHER .406X.81X.066
867 71046 NUT, 3/8-16 HEXNYL
868 002X98 BOLT, CARRIAGE 1/4-20 X 1.00
869 15X145 NUT
870 1501074 YZ CRANK, ASSY CHUTE
