Murray 96014000100 - Seat Assembly View and Parts List

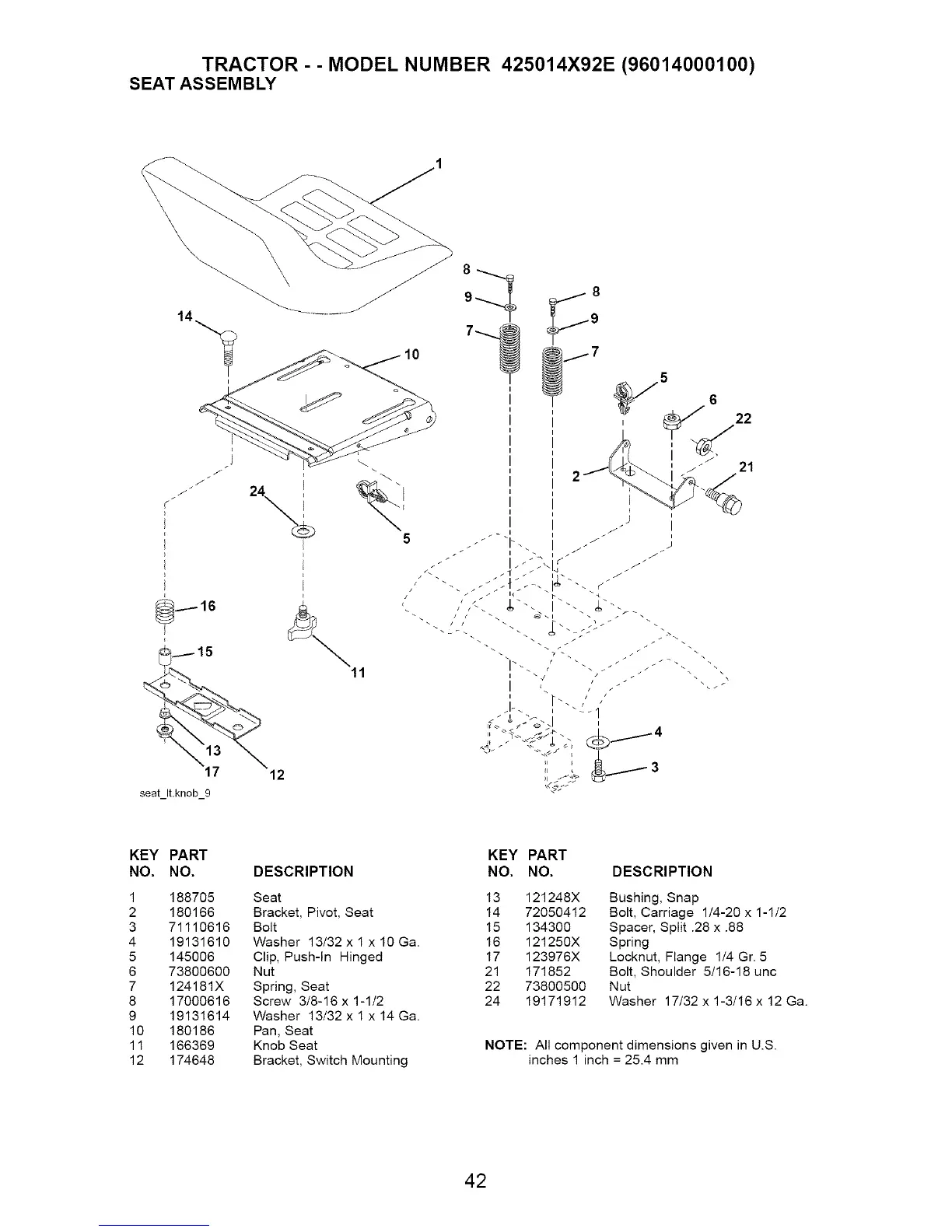

TRACTOR - - MODEL NUMBER 425014X92E (96014000100)
SEAT ASSEMBLY
12
seat_It.knob_9
11
5
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
188705
180166
71110616
19131610
145006
73800600
124181X
17000616
19131614
180186
166369
174648
DESCRIPTION
Seat
Bracket, Pivot, Seat
Bolt
Washer 13/32 x 1 x 10 Ga.
Clip, Push-In Hinged
Nut
Spring, Seat
Screw 318-16 x 1-1/2
Washer 13/32 x 1 x 14 Ga.
Pan, Seat
Knob Seat
Bracket, Switch Mounting
KEY PART
NO. NO. DESCRIPTION
13 121248X Bushing, Snap
14 72050412 Bolt, Carriage 1/4-20 x 1-1/2
15 134300 Spacer, Split .28 x .88
16 121250X Spring
17 123976X Locknut, Flange 1/4 Gr. 5
21 171852 Bolt, Shoulder 5/16-18 unc
22 73800500 Nut
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
42
