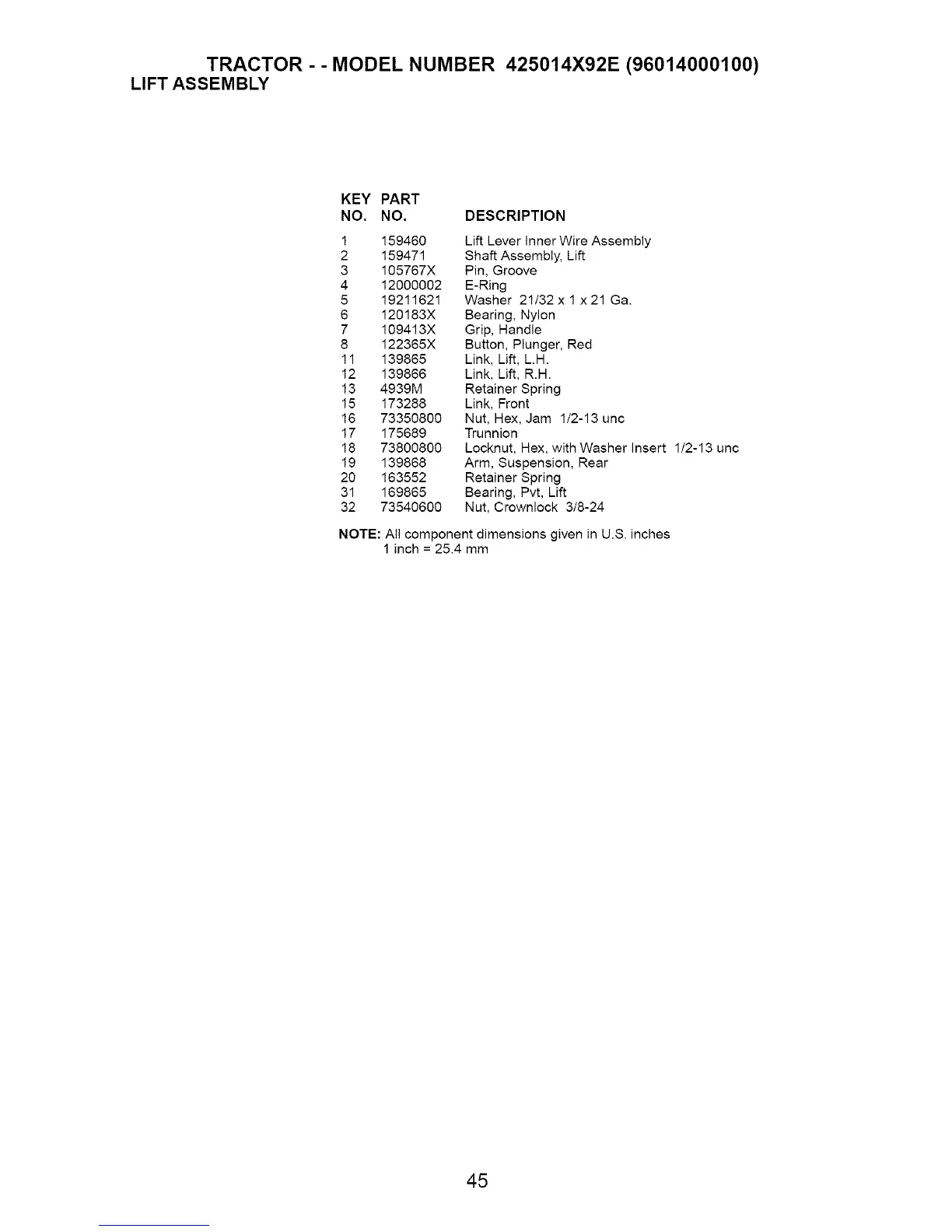

Murray 96014000100 - Lift Assembly Parts List

TRACTOR - -MODEL NUMBER 425014X92E (96014000100)
LIFT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 159460 Lift Lever Inner Wire Assembly
2 159471 Shaft Assembly, Lift
3 105767X Pin, Groove
4 12000002 E-Ring
5 19211621 Washer 21/32 x 1 x21 Ga.
6 120183X Bearing, Nylon
7 109413X Grip, Handle
8 122365X Button, Plunger, Red
11 139865 Link, Lift, L.H.
12 139866 Link, Lift, R.H.
13 4939M Retainer Spring
15 173288 Link, Front
16 73350800 Nut, Hex, Jam 1/2-13 unc
17 175689 Trunnion
18 73800800 Locknut, Hex, with Washer Insert 1/2-13 unc
19 139868 Arm, Suspension, Rear
20 163552 Retainer Spring
31 169865 Bearing, Pvt, Lift
32 73540600 Nut, Crownlock 318-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
