Murray M26-S - Fitting Trimmer Head

Not for
Reproduction
13
BENT SHAFT
1. Replace blade protector.
2. Align hole in flange and housing.
3. Insert Allen Key (supplied) into hole
in flange and housing.
4. Grip the cast head and rotate
anti-clockwise to remove.
5. Refitting is in reverse order.
Ensure the blade on guard is
covered.
Always disconnect spark plug
H.T. lead before any work is
done on the trimmer.
STRAIGHT SHAFT
1. Replace blade protector.
2. Align hole in flange and housing.
3. Insert Allen Key (supplied) into hole in flange and housing.
4. Grip the cast head and rotate clockwise to remove.
5. Refitting is in reverse order.
Ensure the blade on
guard is covered.
Always disconnect spark
plug H.T. lead before
any work is done on the
trimmer.
Note: Not aligning the flange to the housing hole will cause
damage.
Trimmer nylon line will deteriorate/with time resulting in more
frequent line breakages.

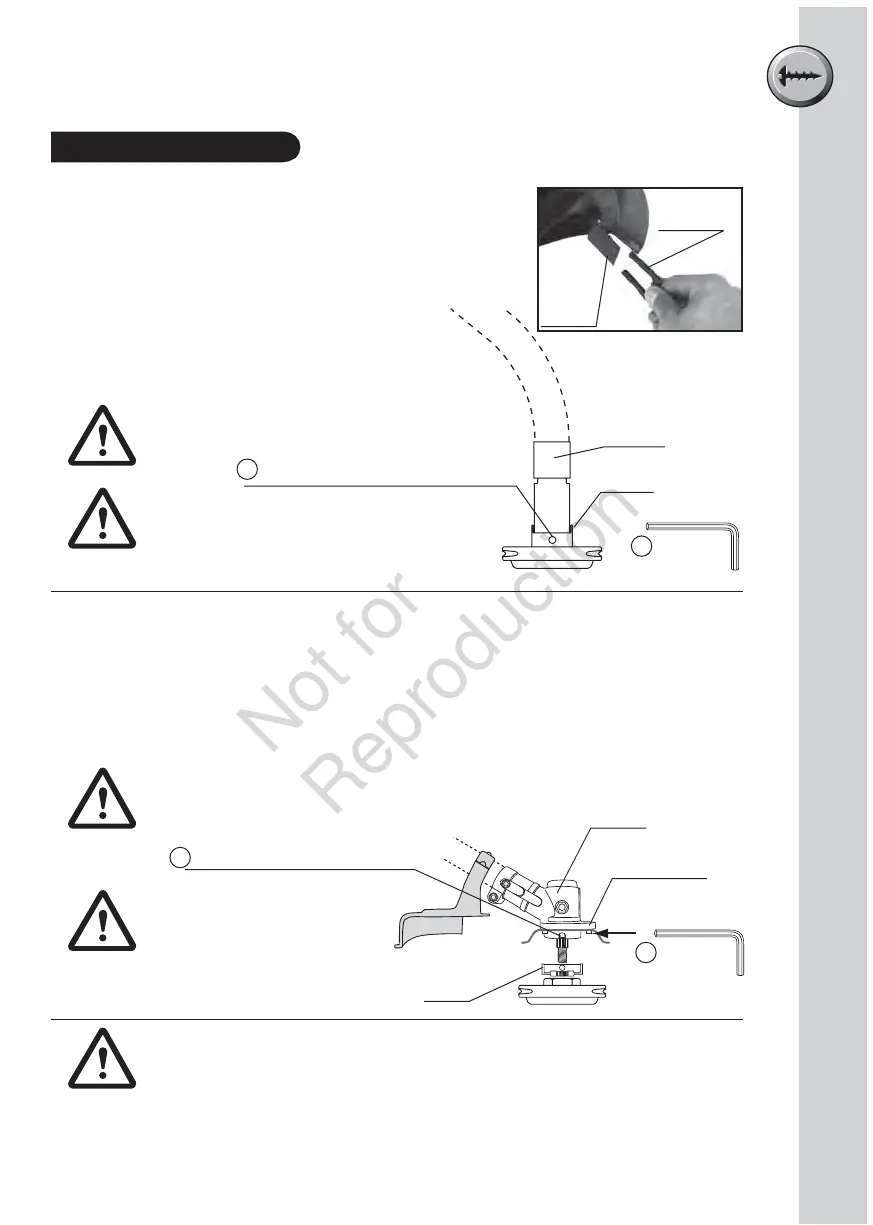

Fitting Trimmer Head
2. Align housing slot with key hole
3. Allen Key
Flange
Housing
Line
cutting
blade
Blade
protector
Trimmer Flange
Flange
Housing
3. Allen Key
2. Align housing slot with key hole
ASSEMBLYPROCEDURES
