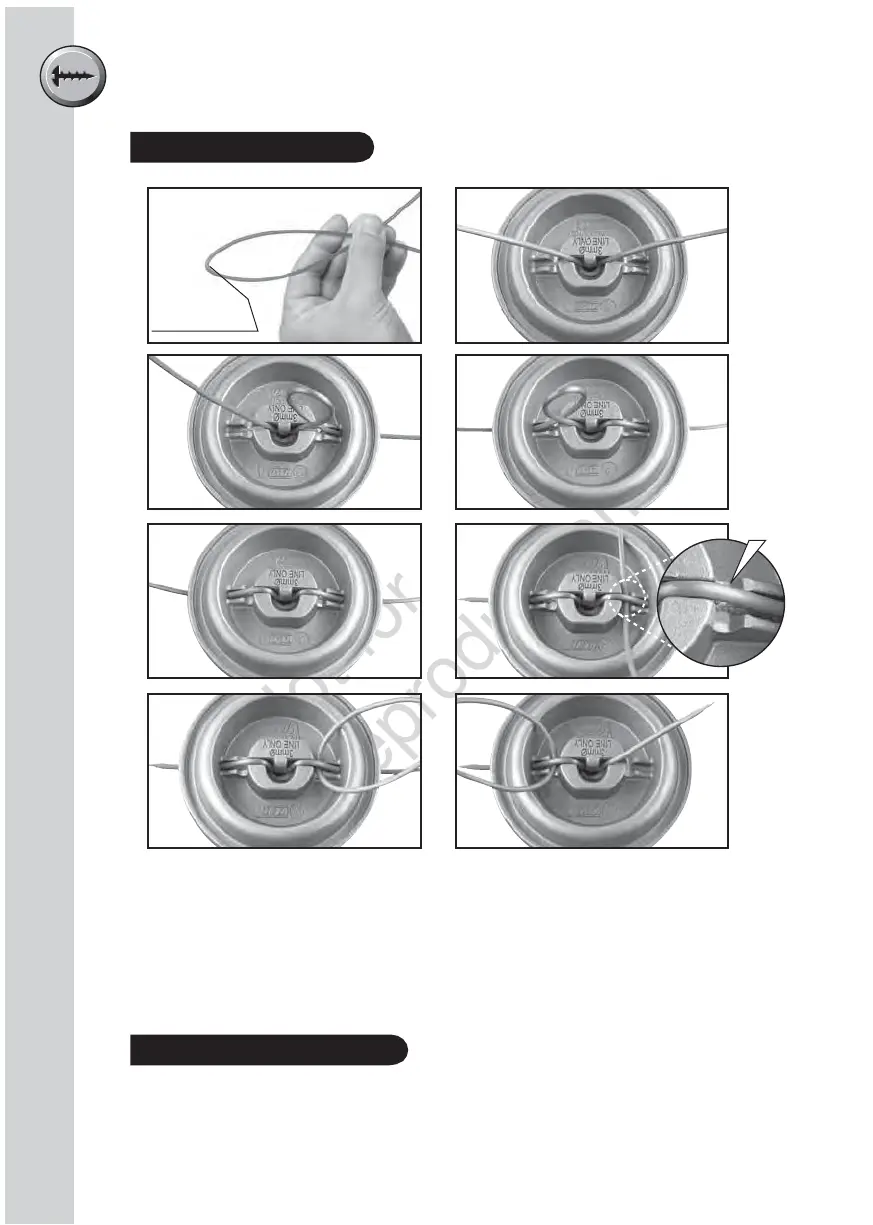

(1) Cut a length of line to 44cm, Bend it in half (equal ends). Use only 3mm diameter Nylon
line (Fig: 1)
(2) Push the bent end of the line under the lug of the trimmer head
(3) Push one end of the line into the hole on the same side of the head as the line end.
Pull the line through the hole until loops or slack between the hole and centre lug is
removed.
(4) Repeat step 3 for opposite side. (5) Refer to image for correct complete assembly of the
nylon line into the head.
(6) To remove used line, bend new line as in (1), slide new line under used line through slot
in cast head.
(7) Holding both ends of the new line together, pull the old line out of the cast head. Repeat
process for the other side (8).
Fitting Trimmer Line
Removing Trimmer Line
4
3
5
7
8
21
Bend middle
6
Slot in
cast
head
ASSEMBLYPROCEDURES
