60 960G00604103

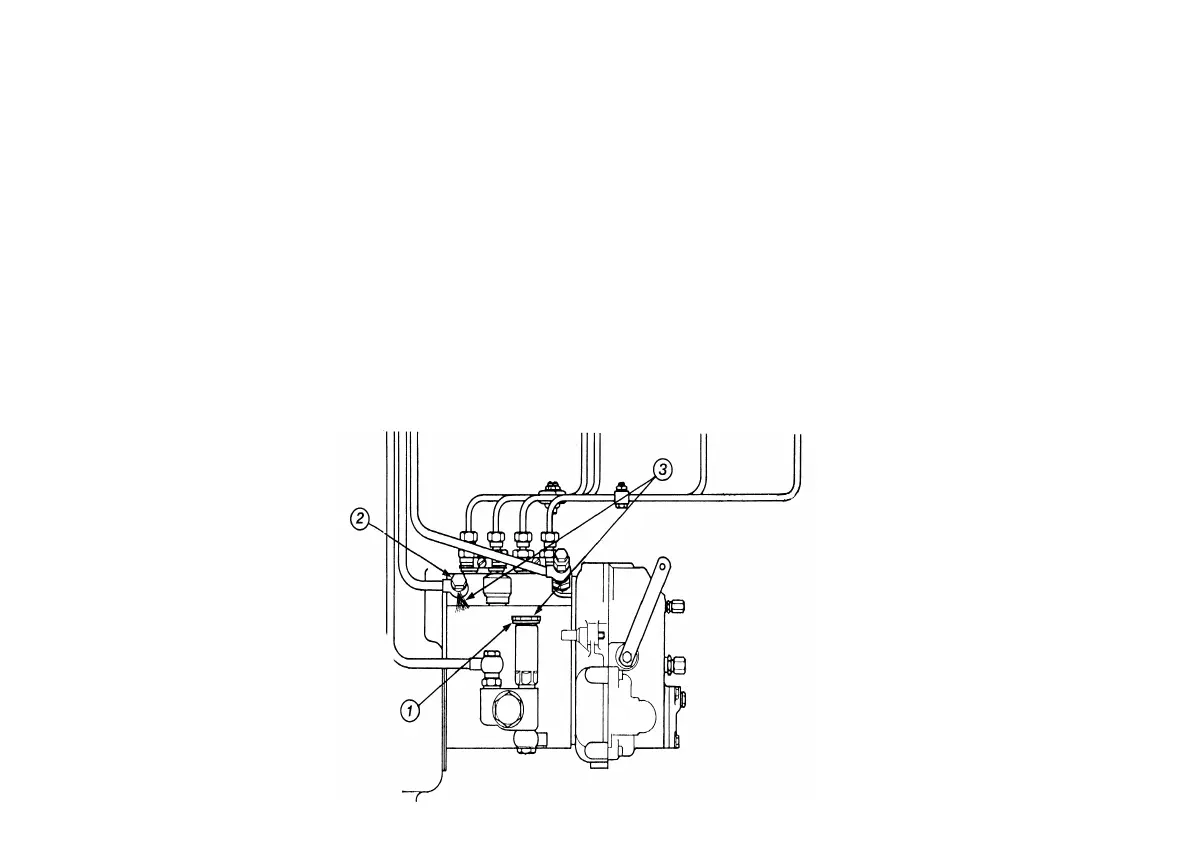

1 Soltar o manípulo de aciona-
mento manual.
2 Soltar o parafuso de entrada de
combustível na bomba.
3 Acionar a bomba manual até que
o combustível saia pelo parafuso
isento de bolhas de ar.
Apertar o parafuso de entrada de
combustível na bomba e continuar
acionando a bomba manual até que
a pressão do óleo vença a válvula de
pressão (o manípulo ficará mais duro
de ser acionado).
Fixar o manípulo.
1 Soltar la perilla de accionamiento de
la bomba manual.
2 Soltar el tornillo de entrada de com-
bustible a la bomba.
3 Accionar la bomba manual hasta
que el combustible salga por el torrillo
sin burbujas de aire.
Apretar el tornillo de entrada de
combustible a la bomba y continuar
accionando la misma hasta que la
presión de aceite venza la válvula
de presión (la perilla ofrecerá más
resitencia).
Fijar la perilla.
1 Loosen manual pump operating knob.
2 Loosen fuel inlet screw.
3 Drive the manual pump until fuel
comes through the screw free of air
bubbles.
Tighten the fuel inlet screw and continue
pumping manually until the pressure
exceeds the pressure valve (pumping
will get harder).
Relock the knob.
