10. COMMISSIONING THE SHOWER
1. Make sure that the electrical supply has been
isolated at the double pole isolating switch.
2. Turn the bottom temperature control knob anti-
clockwise to the full cold position.
3. Ensuring the water supply is fully on at the mains
stop cock and isolating service valve (if fitted),
check that water is not leaking from the bottom of
the case.
4. Switch on the electrical supply at the double pole
switch. The ‘Power’ neon indicator will light at
switch.
5. Press the ON/OFF button this action will activate
the internal solenoid valve turning the water on
whilst simultaneously pressing the ECO1 button
and keep pressed for 4 seconds this will turn the
shower to the cold setting, wait until the water runs
freely. The water from the shower head should now
be at full force and at a cold temperature..
6. Now press the ECO1 button and turn the
temperature knob clockwise to about
12 o’clock, wait for the water to start to get warm,
repeat this process for the ECO2 and then repeat
for the high power settings increasing the water
flow on each setting, this shows that all the power
settings are working correctly.
7. Turn the bottom temperature control knob
clockwise for hotter water and anti-clockwise
for cooler water. Allow a few seconds between
selections for the temperature change to reach the
showerhead.
NOTE. When the temperature is changed the flow
rate alters.
8. Push the ON/OFF button to stop the flow. Turn
the power selector knob to the OFF position. Note
as a safety feature the unit is designed so water
will continue to run for a few seconds after the off
button is pressed.
9. Switch off pull-cord or wall mounted switch.
10. Remove the shower head and make sure no
debris has worked into it. Clean and refit.
11. Remove the filter and clean out any debris from
the pipework, clean and refit.
IMPORTANT
The shower unit must be full of water before heat settings are used.
IMPORTANT
Turn the Temperature control knob anticlockwise until the valve is fully open before switching on the unit.
This will ensure a fast fill up of the unit when the shower is first switched on.

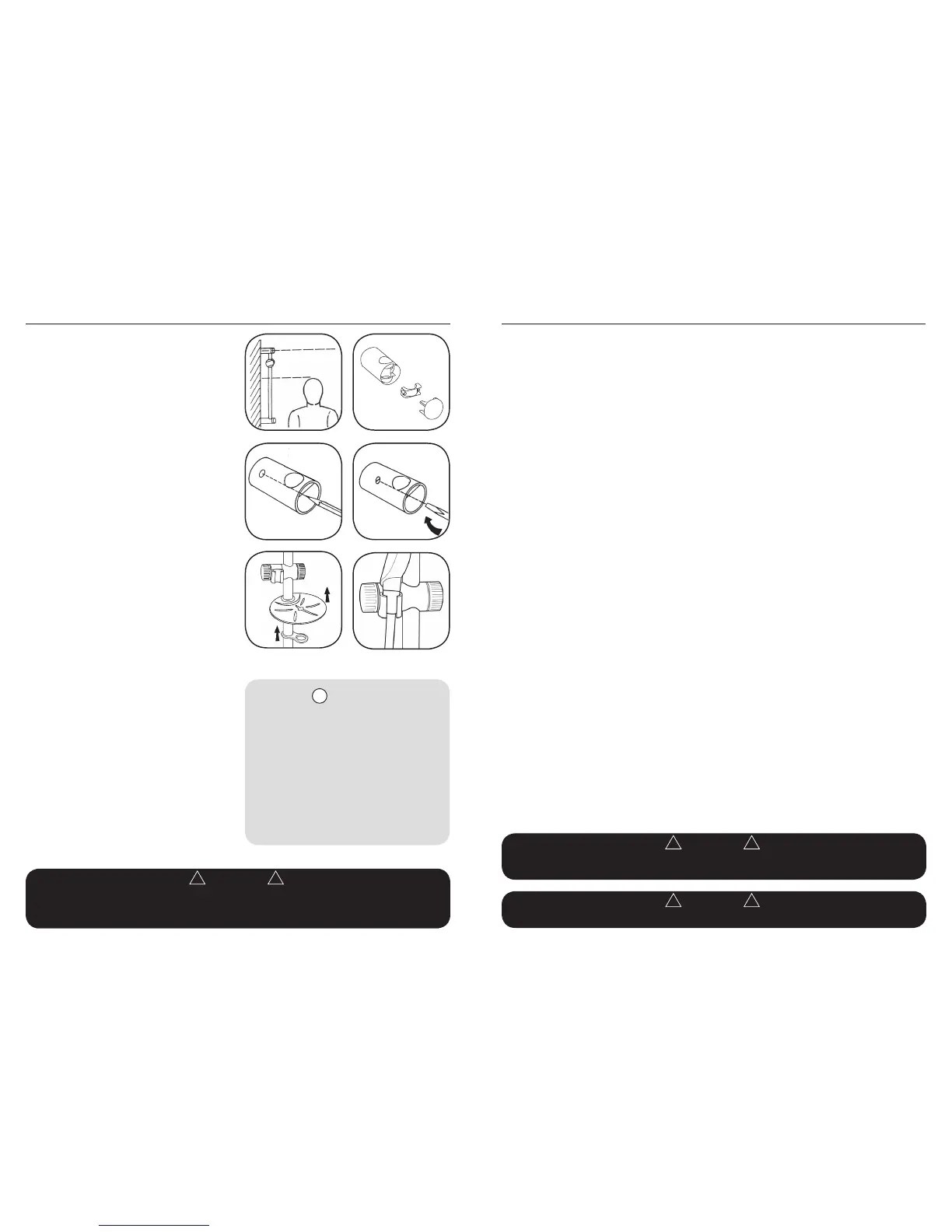

9. RISER RAIL FITTING INSTRUCTIONS
1. Establish holes to be used.
2. Remove caps and covers from brackets.
3. For new installation Drill, plug and screw.
For replacement installation locate bottom hole and
screw.
4. Fit rail through lower bracket and clamp. Place
the remaining bracket on top of the rail making
sure the slot in the rail is located in the notch. If
replacement riser fix and screw into existing hole. If
new installation ensure the hole position is vertically
aligned and mark the wall. Unclamping the lower
bracket and remove the rail then drill and plug the
wall.
5. Slide the height adjuster onto the rail. Tighten to
the rail by turning the locking cap. Then fit the
soap dish, dampening the rail will make it easier to
slide on. Finally fit the hose retaining ring onto the
bottom of the rail below the soap dish.
6. Replace the rail assembly through the lower
bracket and clamp. Fix top bracket to wall and
then loosen lower bracket and fit rail into top
bracket ensuring the slot locates into the notch and
retighten lower bracket. Refit caps.
NOTE: The adjustable height adjuster grips the conical
ends of the hose, not the handle of the showerhead.
CAUTION
Check there are no hidden cables or pipes before drilling holes for wall plugs.
Exercise great care when using power tools near water.
The use of a residual current device (RCD) is recommended.
