mxr TOM MORELLO POWER 50 - External Controls Overview; Pedal Controls

MXR | Power 50 2

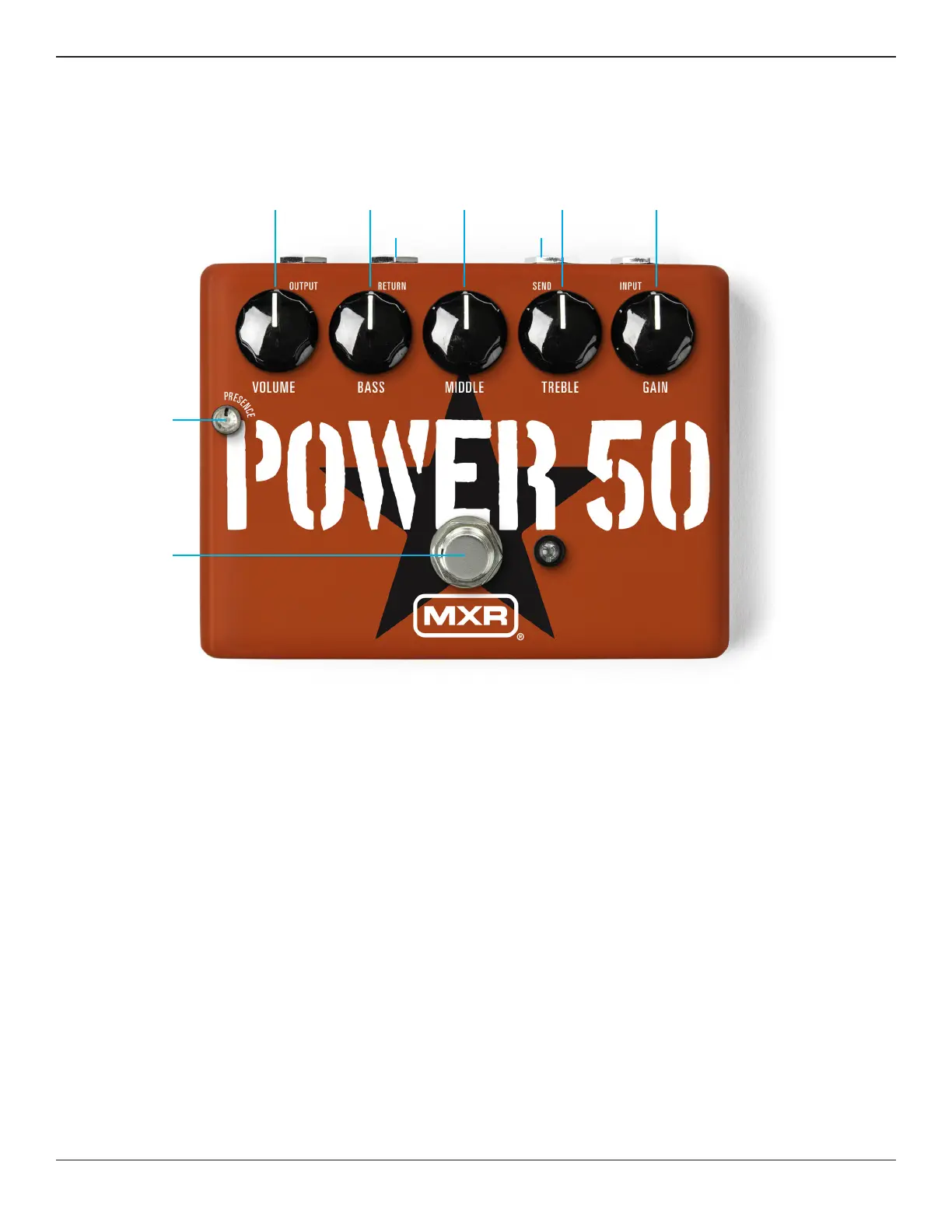

1 FOOTSWITCH toggles effect on/bypass (red LED indicates on)
2 PRESENCE knob adjusts high-end frequencies of overall
output signal
3 VOLUME knob controls overall volume of pre-effects loop
signal
4 BASS knob cuts/boosts low frequencies of pre-effects loop
signal
5 RETURN jack breaks effects loop connection and receives
effects loop output signal
6 MIDDLE knob cuts/boosts midrange frequencies of pre-effects
loop signal
7 SEND jack transmits post-EQ signal to effects loop
8 TREBLE knob cuts/boosts high frequencies of pre-effects loop
signal
9 GAIN knob sets overdrive intensity
1
2
3 4
5 7
6 8 9
External Controls
