Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.5 Reassembly
5-47
Suction cover tightening bolts Inside of suction cover

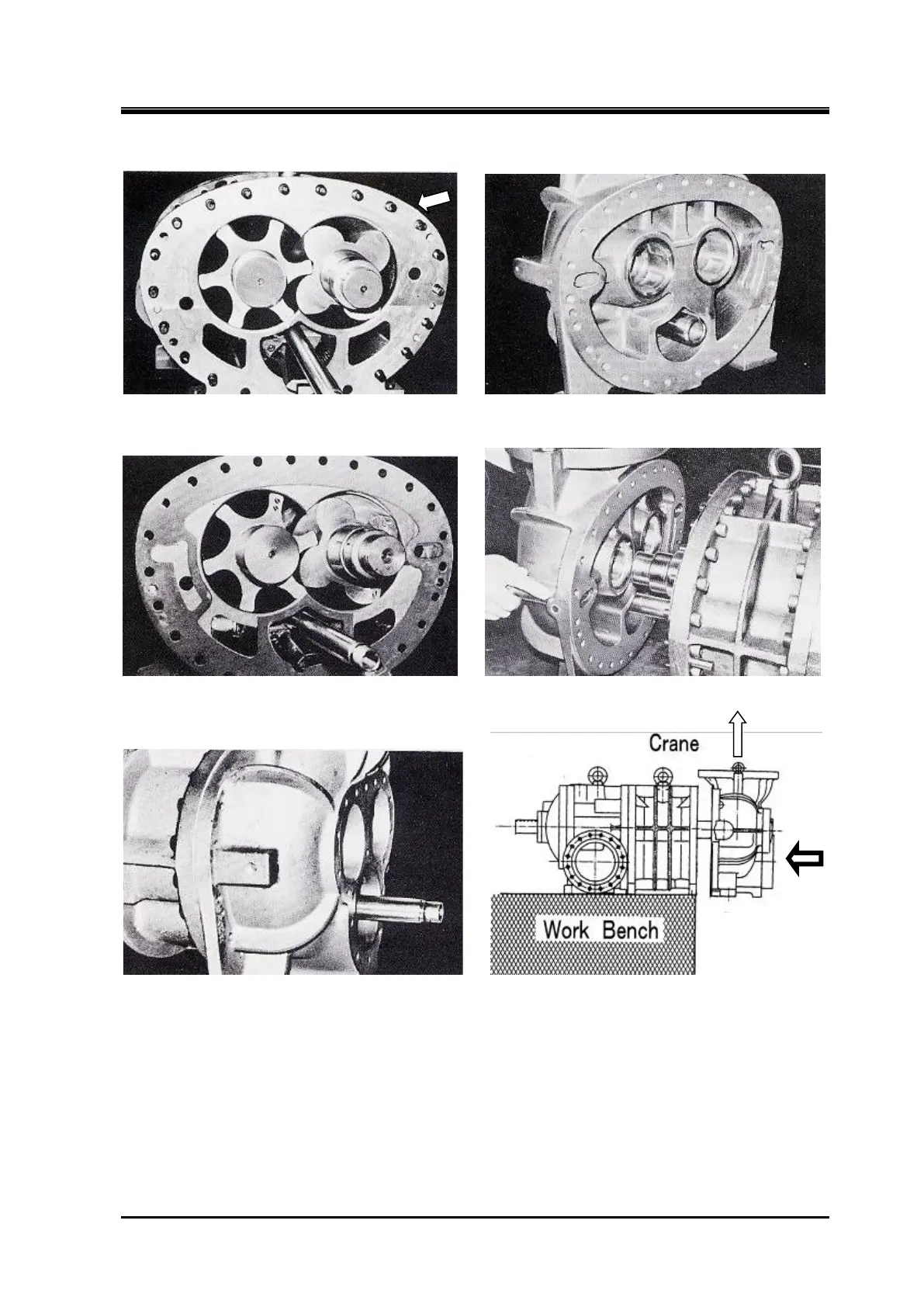

Suction Cover Gasket left-right asymmetric Install Suction Cover (125-320)
Fitting the unloader push rod Figure 5-21 Setting Suction Cover
