7.2 Disassembly Tools

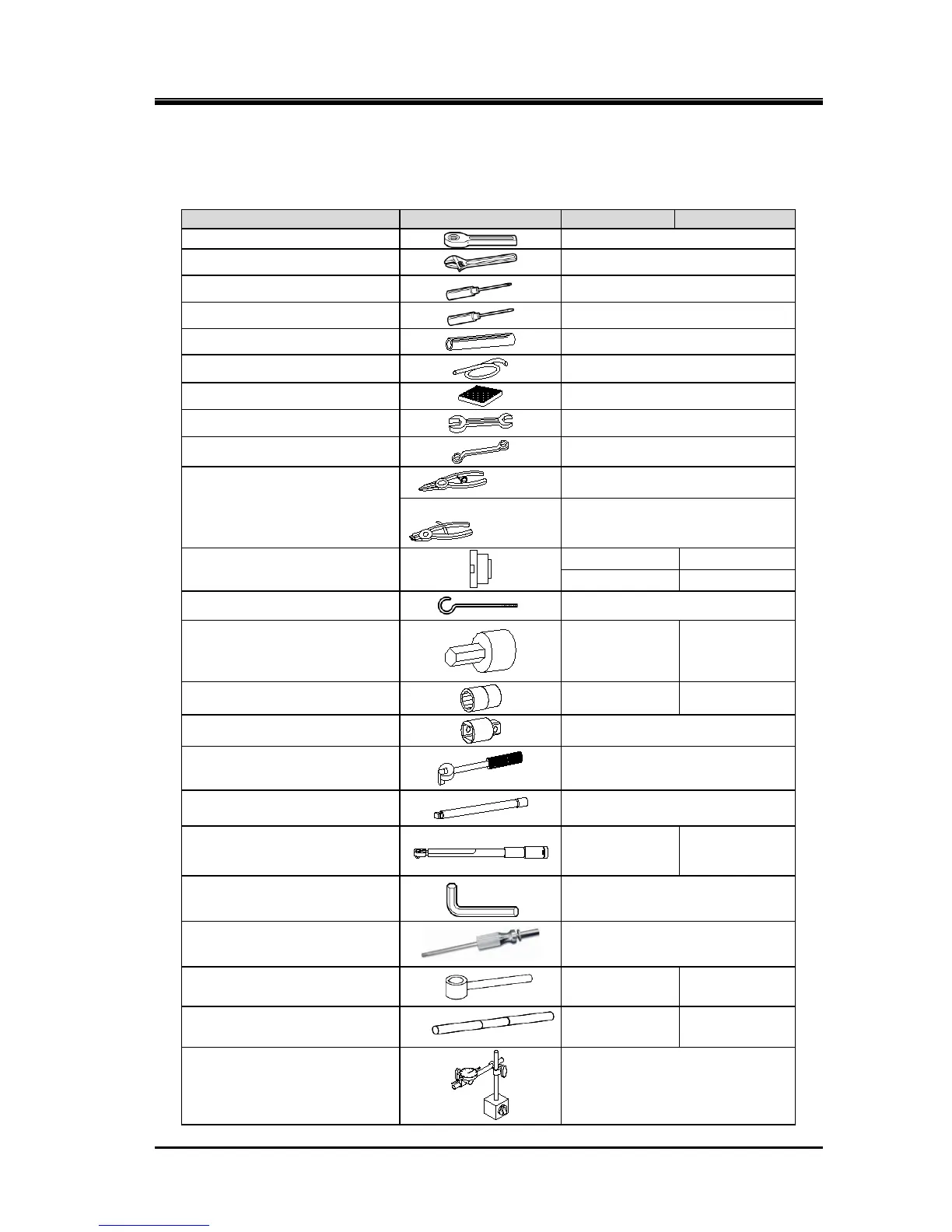

Table 7-2 List of Tools
Tool
i125*
i160*
Ratchet wrench
1/4”
Adjustable wrench
250 mm
Screwdriver
(Phillips)
Screwdriver
(flat blade)
Handle for hexagonal wrench key
Φ20 × L 300 (mm)
Vinyl hose
Φ15 × L 720 (mm)
Sponge
160 mm x 160 mm x 20 mm
Double ended wrench
17 mm × 19 mm
Box end wrench
30 mm × 32 mm
Retaining ring pliers
(Snap ring pliers)
(external)
205 mm, tip size: Φ2.3 mm
(internal)
300 mm, tip size: Φ3.0 mm
Lock nut socket
(Nut dimensions)
AN-8
AN-11
AN-9
AN-12
Eye Bolt
M8 (two-piece set)
Hexagon socket
width across flat
8 mm
10 mm
14 mm
5 mm
8 mm
10 mm
14 mm
Socket for socket wrench
13 mm –
Socket adapter
19.5 female × 12.7 male
Socket wrench handle
12.7 male × L 300 mm
Extension bar 12.7 male × L 250 or 300 mm
Preset torque wrench
200 N·m
420 N·m
–
200 N·m
420 N·m
550 N·m
Hexagonal wrench key set
(width across flat)
2, 3, 4, 5, 6, 7, 10, 12, 14 mm
Slide hammer For M6
Rotor shaft stopper 1
Hole Dia. 38.3
mm
Hole Dia. 45.3
mm
Rotor shaft stopper 2
Φ30 × L 340 mm Φ35 × L 400 mm
Dial gauge & magnet stand
