5.4.2 Bearing Cover
5.4.2.1 Disassembly
a) Remove two threaded alignment pins [3] by using a slide hammer (Photo 006).
b) Attach lifting tools, and remove all of the hexagon socket head cap screws. If the bearing cover
gasket [17] is stuck, use a jack bolt to remove.
At this moment, lubricating oil remaining inside the bearing cover will flow out. Prepare a container
to catch oil.
c) Remove the bearing cover [16]. Exercise care not to let it hit against the shaft and cause damage.

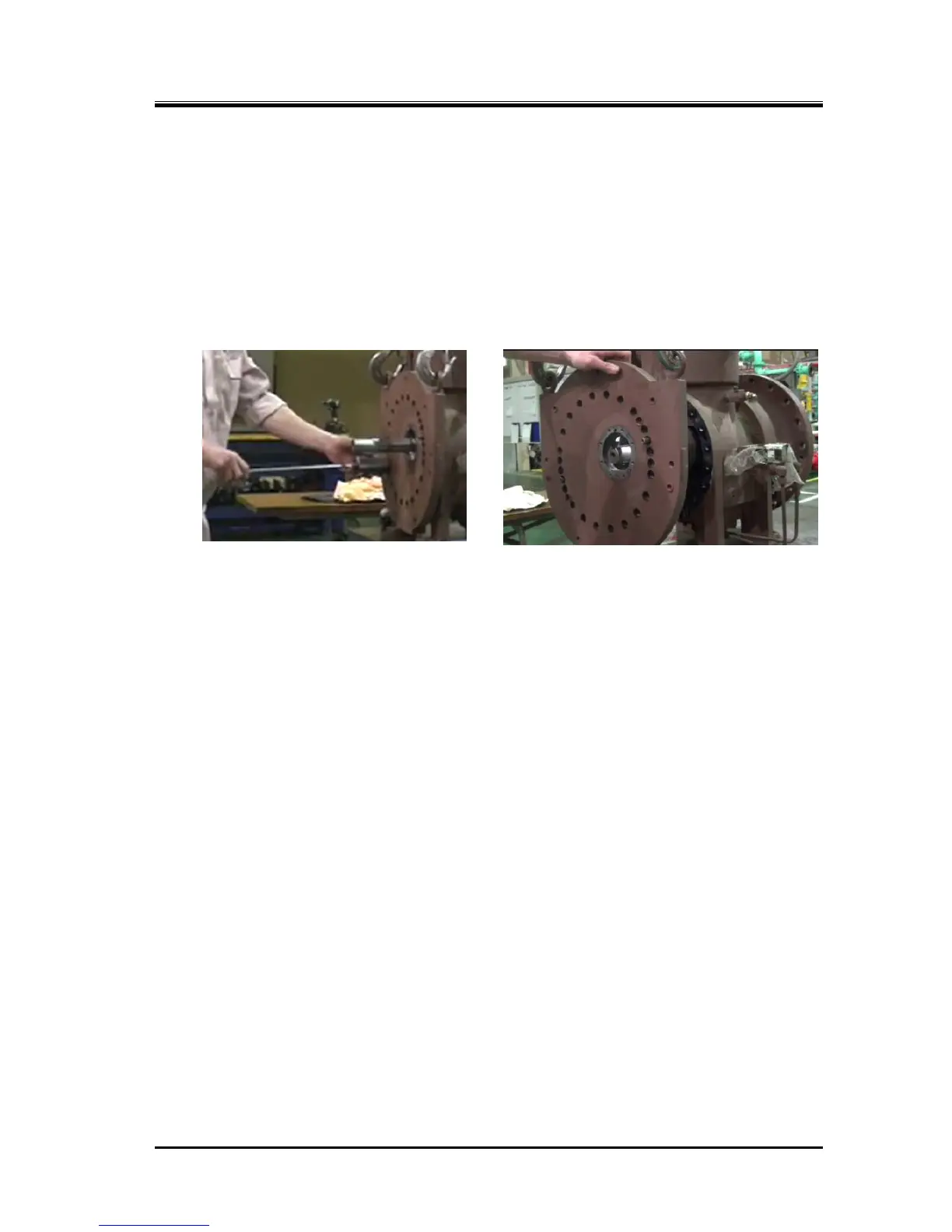

Photo 006 Removing Alignment Pin
5.4.2.2 Inspection
a) If the alignment pin is bent or worn, replace it with a new one.
b) The bearing cover gasket must be replaced with a new one.
