KICKSPACE
®
500, 600, 600-12V & 800
7.0 Water Connection
l Connect valve ends of the flexible pipes to the KICKSPACE
®
.
Note: The direction of the arrows on the valves are not
significant in this application.
l Open valves fully, check pipe connections for leaks and vent
the heat exchanger. A vent screw is provided to vent the heat
exchanger.
Isolating valves
Air vent screw
Flexible pipes

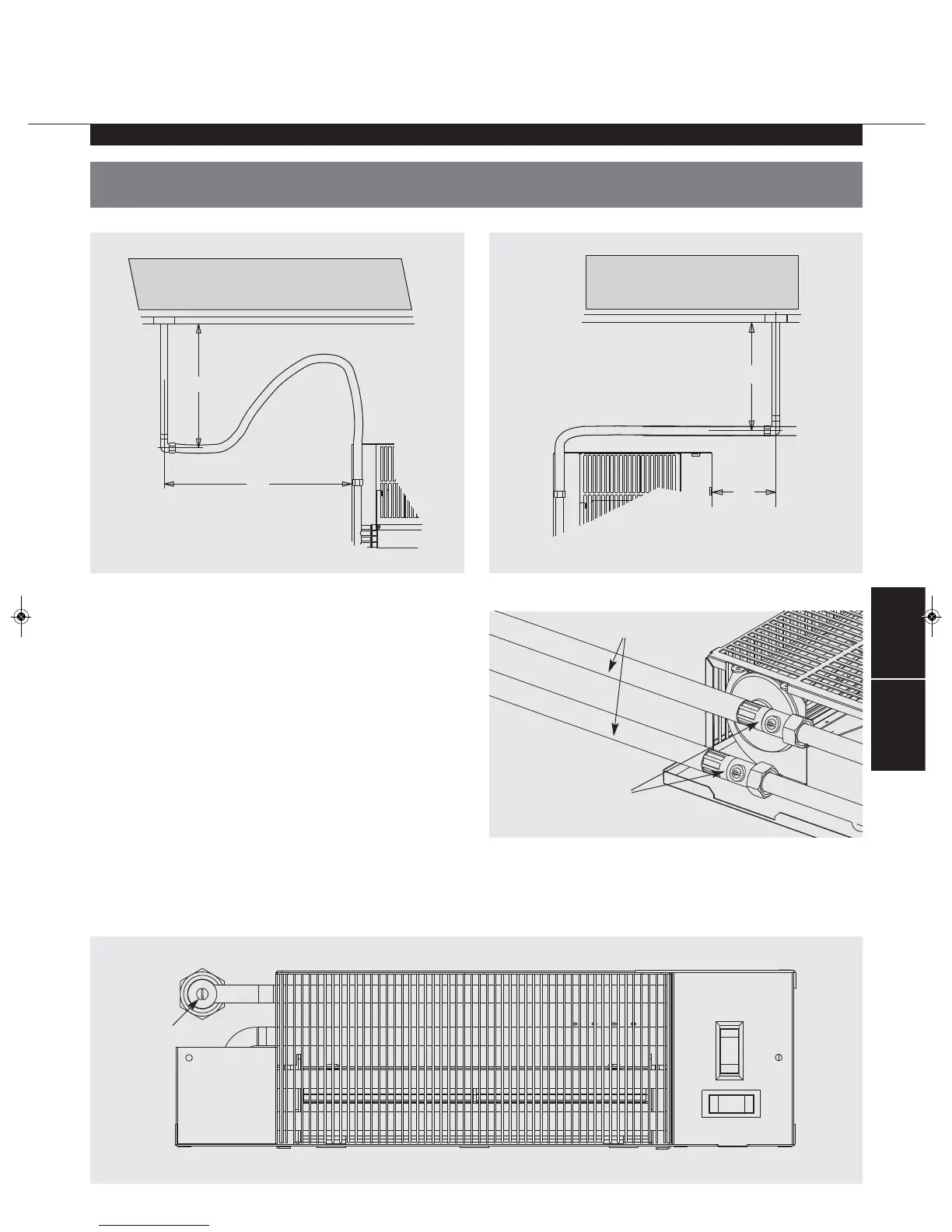

Pipework must be positioned correctly to ensure flexible hoses are not kinked when installed. See Fig. 3.
Only use the hose sets supplied with this unit. Do not use old or alternative hose sets.
Fig. 3a Left hand view - suggestion only
Fig. 4
Fig. 5
Fig. 3b Right hand view - suggestion only
