KICKSPACE
®
500, 600, 600-12V & 800
l Position the KICKSPACE
®
under the cupboard in the required
location, with the front edge just behind the line of the plinth.
l Ensure that the flexible hoses are not kinked and that the
electrical cord is not in contact with hot surfaces.
l Replace the plinth and bring the KICKSPACE
®
forward into
the opening so the front edge projects 8mm through the
plinth.
8.0 Fitting the KICKSPACE
®
Grille securing screws

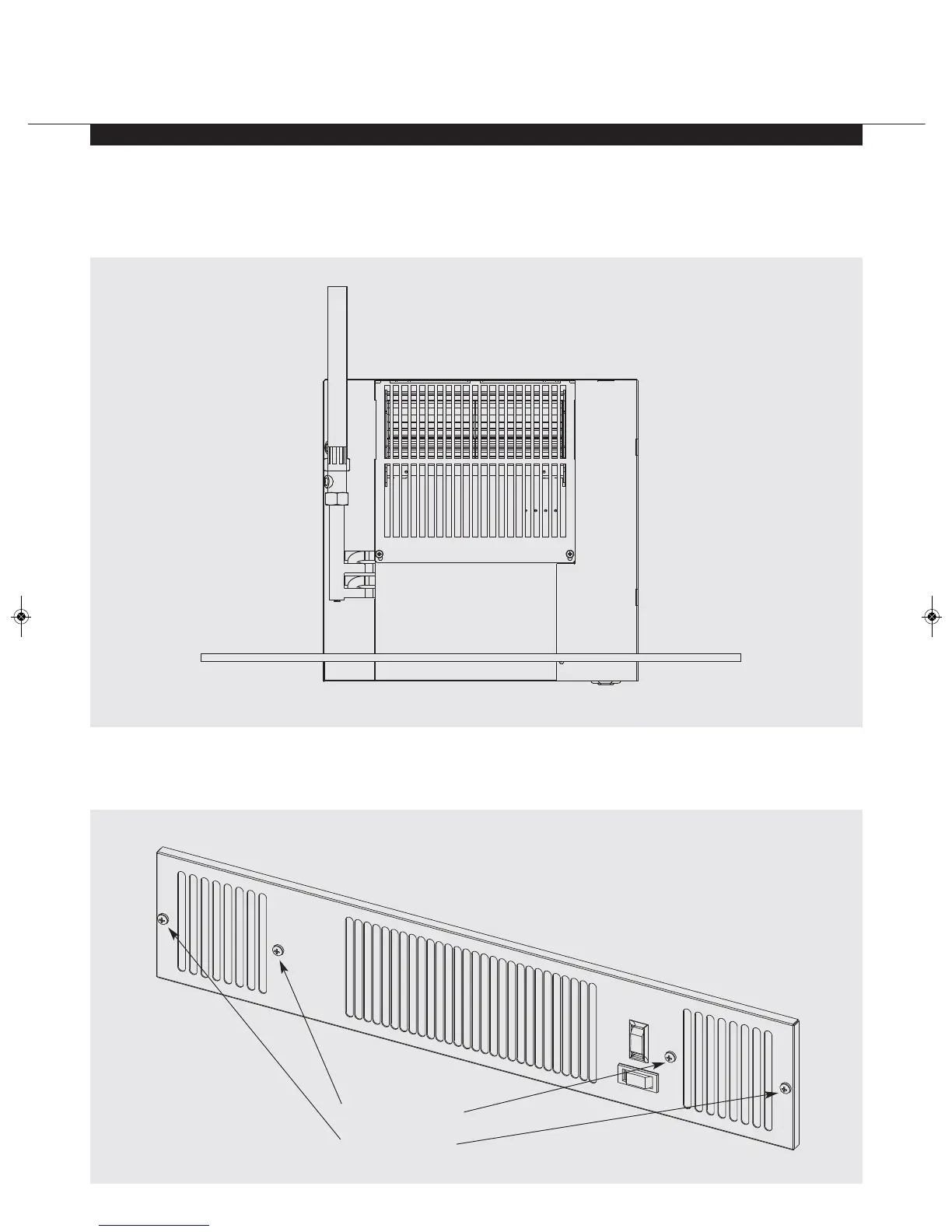

Front view of unit
Top view of unit
8mm projection
Fig. 6
Fig. 7
Unit securing screws
l Align the grille and secure it to the unit with two screws
supplied (use the shorter screws).
l Secure the unit/grille to the plinth with two screws supplied
(use the longer screws).
