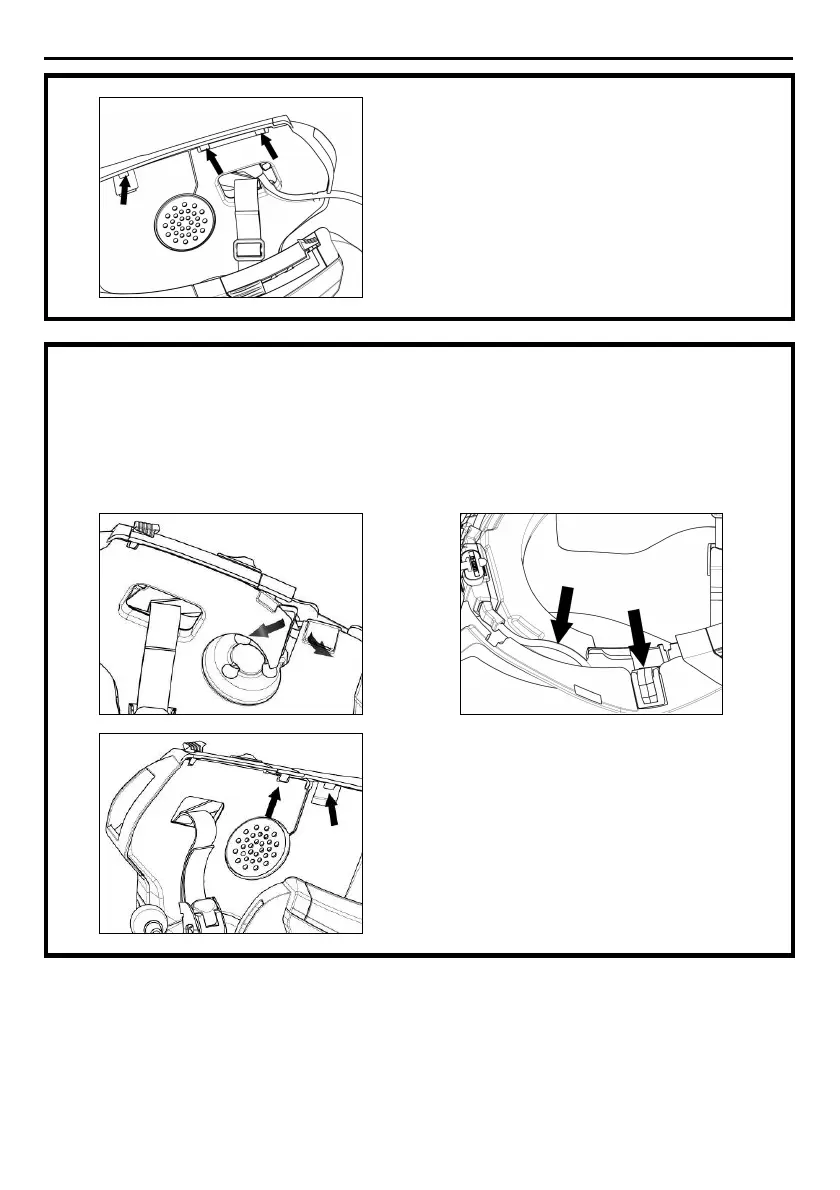

Fig. 11
ONLY FOR HELMET N100-5 – positioning of wiring and microphone
Positioning the left side wiring
:
• Lift up the plastic lining of the cheek padding (Fig. 12).
• Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 13).
• Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 14).
Fig. 12 Fig. 13
Fig. 14
