N90-3 HELMET
• After having repositioned the shell edge gasket, peel off sections 1 and 2 of the film of the
double-sided adhesive tape.
N.B.
: It is recommended to cut off the piece of remaining film so that
it is not visible once the adapter is applied to the helmet shell.
• Apply adapter “A” to the helmet shell, following the predefined template. The adapter has to
match up with the lines of the helmet and allow easy access to the screw of the shell edge gasket
(Fig. 24).
• Hook the light to the adapter, making it slide downwards (Fig. 25).

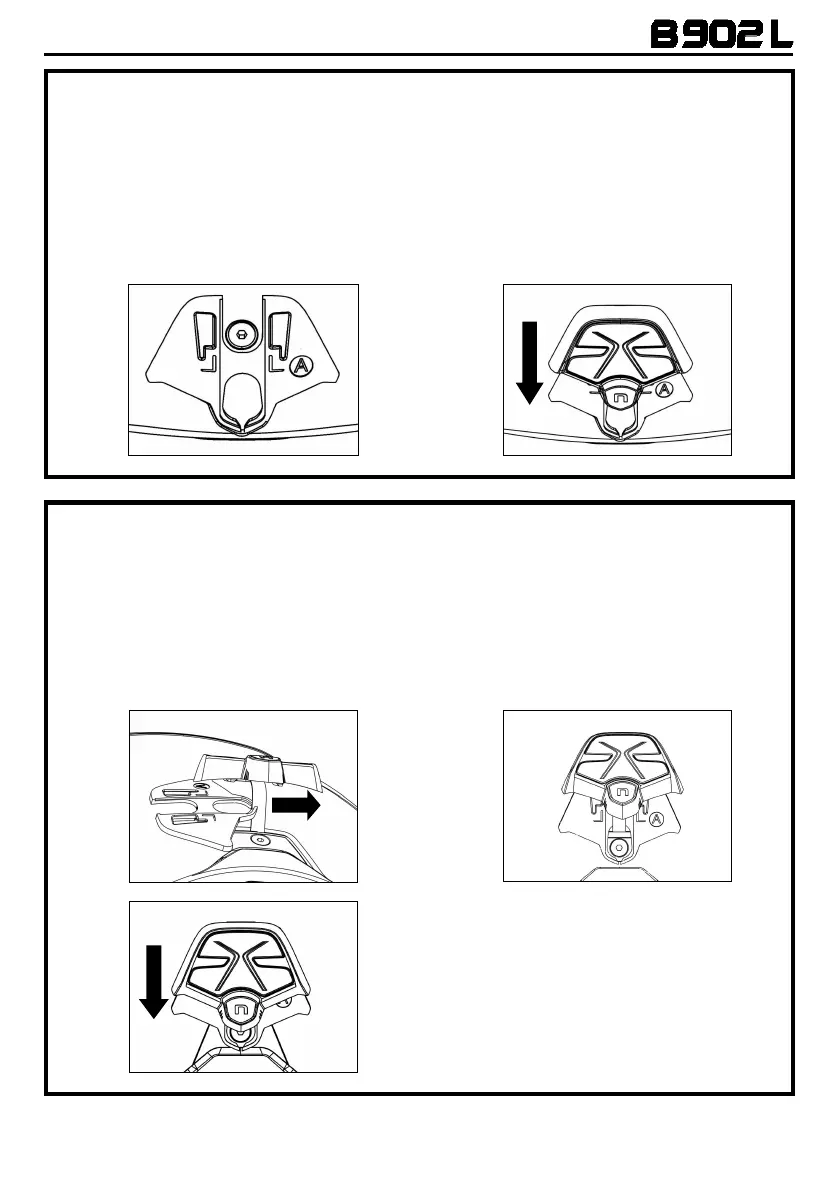

Fig. 24
Fig. 25
N87 HELMET
• After having repositioned the shell edge gasket, peel off sections 2 and 3 of the film of the
double-sided adhesive tape.
N.B.
: It is recommended to cut off the piece of remaining film so that
it is not visible once the adapter is applied to the helmet shell.
• Insert the flex cable of the ESS system in the hole of adapter “A”, as shown in Fig. 26.
• Rotate the adapter and apply it to the helmet shell. The adapter has to match up with the lines of
the helmet and allow easy access to the screw of the shell edge gasket (Fig. 27).
• Hook the light to the adapter, making it slide downwards (Fig. 28).
Fig. 26
Fig. 27
Fig. 28
