Chapter 5 Installation
32
• Do not fail to tap the taper pin (with M8 screw)
Step 11
embedded in the reduction gear.
• Perform steps 1 and 4.
For the C series (bolt-clamping output shaft type)
Perform steps 1 to 6 by taking care regarding the following precautions.
• Attach an O-ring (III) to the center tube, and then
Step 1
attach the center tube to the reduction gear according to
the positions of the tapped holes on the shaft.
(Reference: “4.2.6 O-rings”)
• Take extra care so that the O-ring is not caught by the
mating section.
• Confirm that the centering shaft of the center tube is
correctly fitted into the centering hole of the reduction
gear (shaft section).
• Check that there is no foreign matter adhering to the
mounting surface.
If the O-ring is caught by the mating section, it could cause leakage of the lubricant.
If there is foreign matter adhering to the mounting surface, the mounting surface of the reduction
gear may be deformed, which could cause deterioration of performance, such as abnormal noise
and torque irregularity, and durability.
The shape of the reduction gear may differ from the illustration below depending on the ordered
specifications.
Note

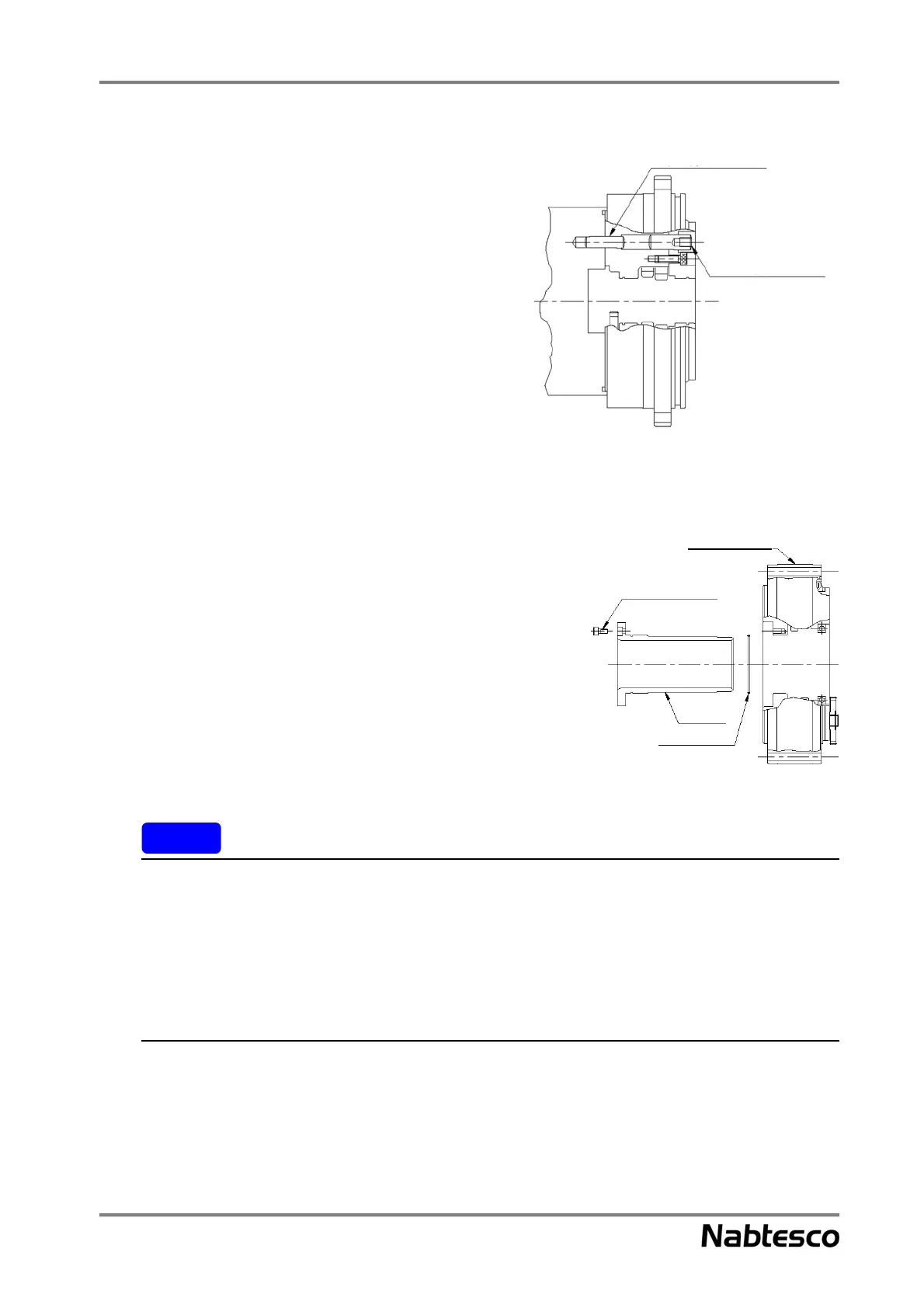

Fig. 5-12
Taper pin with
screw
Taper pin with
screw
(with M8 screw)
Fig. 5-13
head cap screw
Center tube
O-ring (III)
To Next Page
