Chapter 6 Filling the Lubricant
60
Table 6-4
Model
Required
amount
Dimensions
a
(mm)
Dimensions
b
(mm)
Reduction
gear
external
capacity
(cc)
Center
gear
external
capacity
(cc)
(cc) (g)
*1
RV-10C 167 (150) 9.5 16.85 4 70
RV-27C 305 (275) 10 21.35 10 83
RV-50C 571 (514) 11 23.35 21 208
RV-100C 857 (771) 9.9 29.45 57 369
RV-200C 2,076 (1,868) 18.5 37.7 93 642
RV-320C 4,047 (3,642) 25 46.75 197 1,275
RV-500C 6,900 (6,210) 32 49.7 310 1,803
*1. Density of VIGOGREASE RE0: 0.9 g/cc
 Be sure to leave a space about 10% of the total volume. If overfilled, the temperature increases
during operation and the internal pressure also increases. As a result, an oil seal could fall off or
lubricant could leak.
 If the filling amount of the lubricant is insufficient, it could cause premature damage to the reduction
gear.
 The shape of the reduction gear may differ from the illustration in Fig. 6-3 and Fig. 6-4 above,
depending on the ordered specifications. For details on the shape, refer to the catalog and the
separately provided “Outer dimensions” drawings and specification sheet.

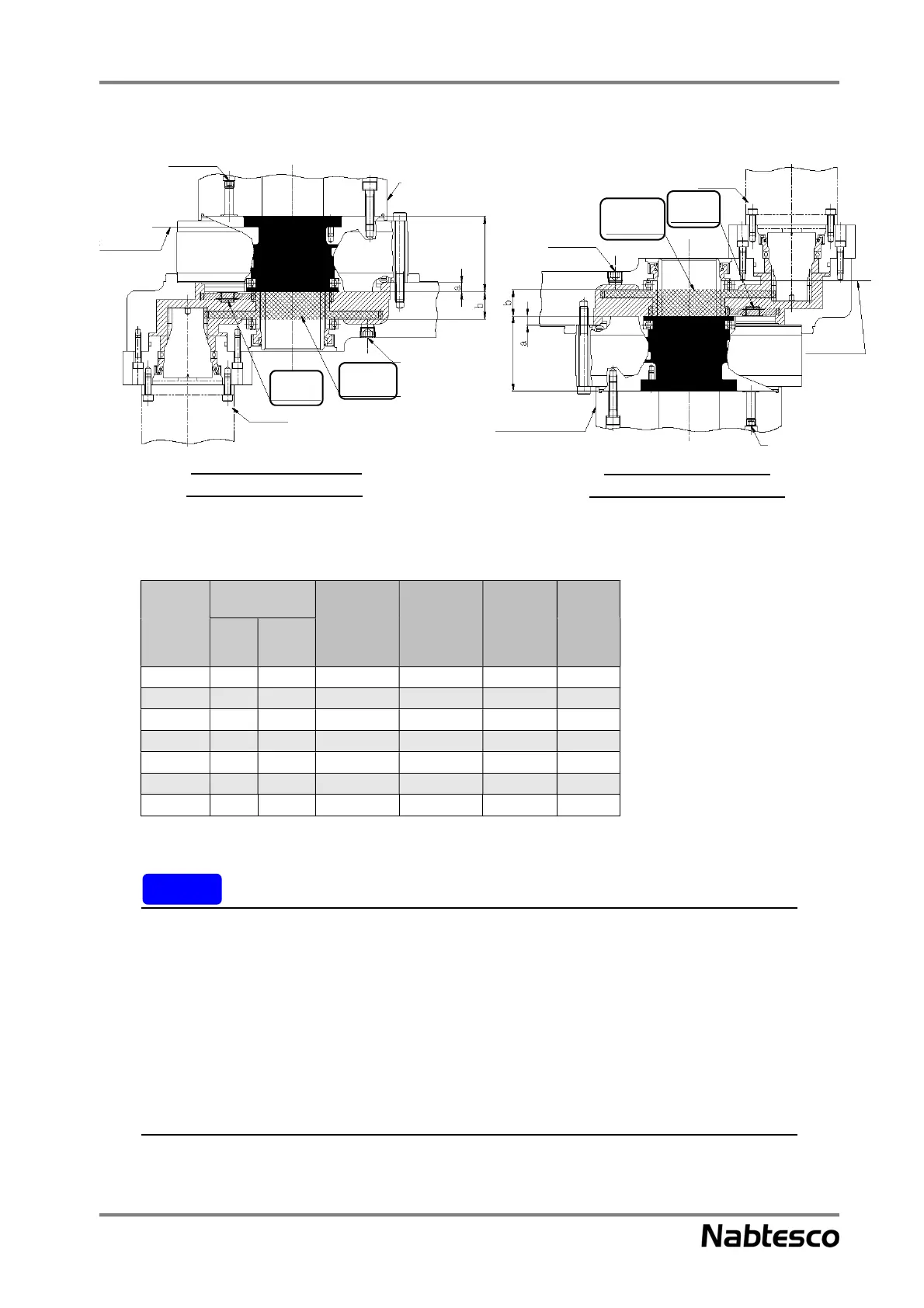

C series
Fig. 6-4
Vertical shaft installation
(with shaft facing downward)
Vertical shaft installation
(with shaft facing upward)
Shaft installation
component
Shaft installation
component
Tapped hole for
injecting/draining
grease
Tapped
hole for
injecting/
draining
grease
Lubricant
surface
Lubricant
surface
Tapped hole for
injecting/draining grease
Tapped hole for
injecting/draining
grease
Motor
Motor
Center gear
external
capacity
Center gear
external
capacity
Reduction
gear external
capacity
Reduction
gear external
capacity
Target range
Target range
Note
