Appendix: Design Scheme of Input Gear
81

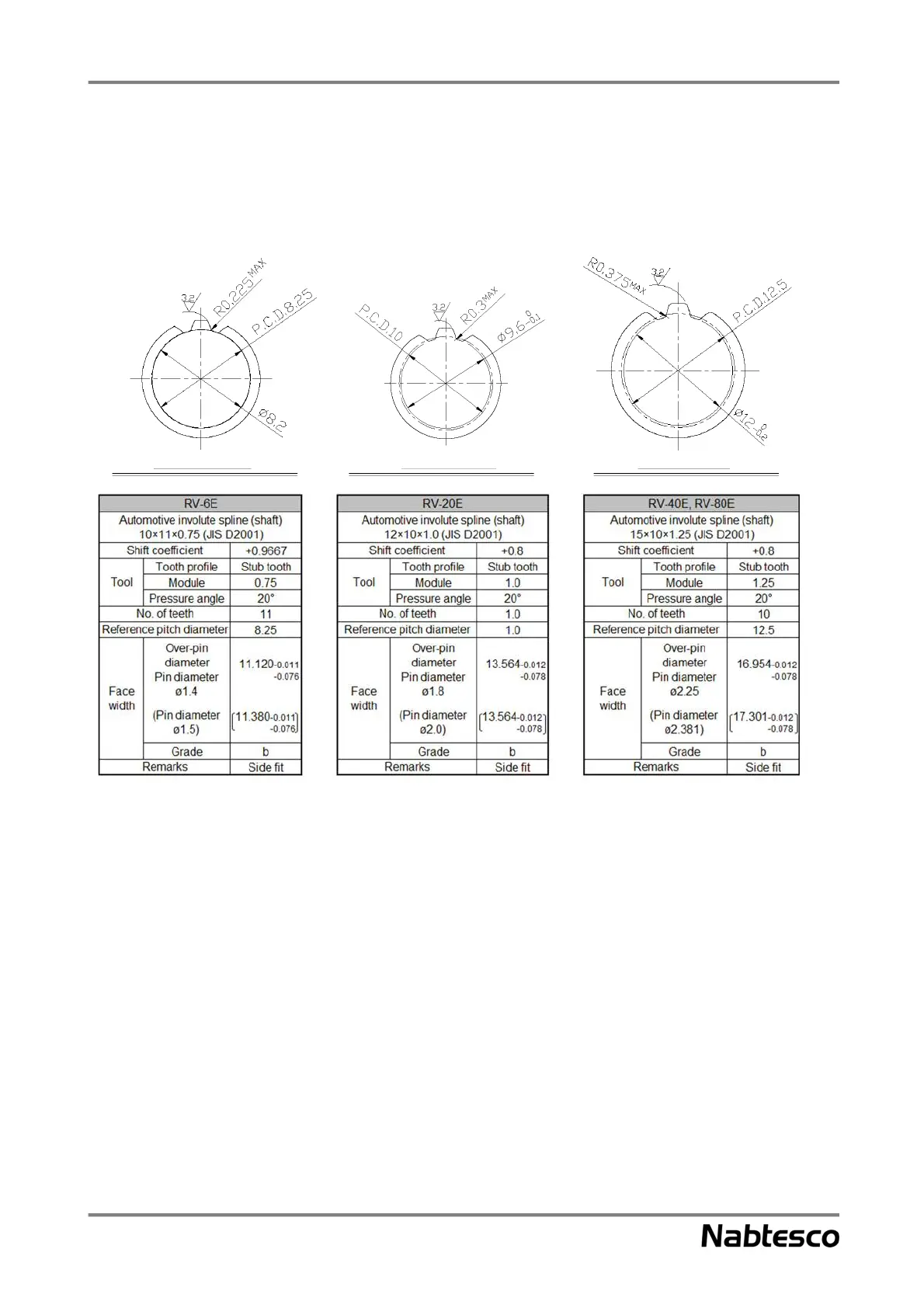

Input gear tooth specifications for each model
Refer to the specifications shown in the following tables when designing with a processed or non-standard
input spline.
The specifications of the hardness and material are the same as those of the input gear.
Detailed drawing of spline section Detailed drawing of spline section Detailed drawing of spline section
