NAD 116 - Disassembly Instructions; Top Cover Removal Procedure

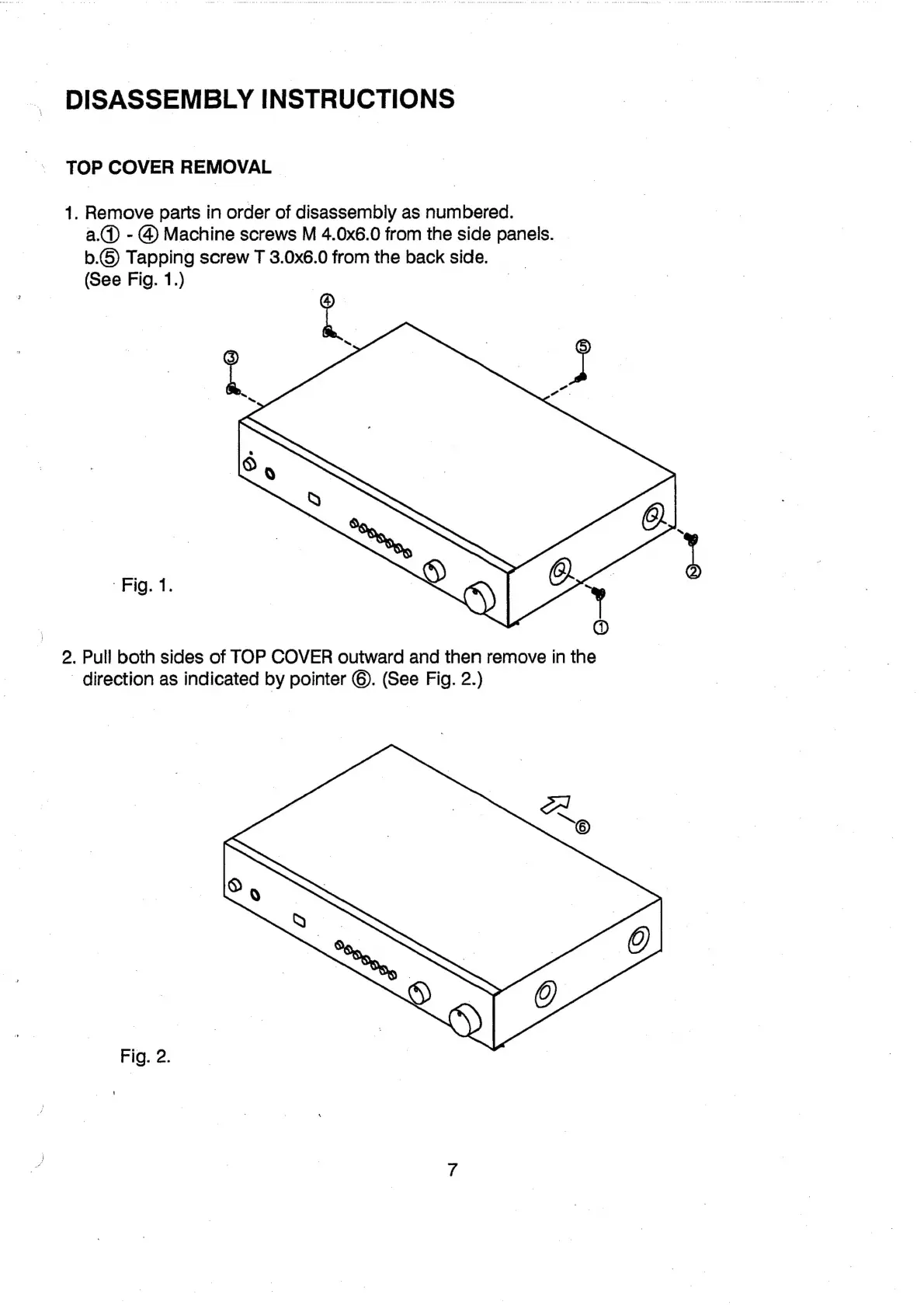

DISASSEMBLY INSTRUCTIONS
TOP COVER REMOVAL
1. Remove parts in order of disassembly as numbered.
a.@) - @ Machine screws M 4.0x6.0 from the side panels.
b.6) Tapping screw T 3.0x6.0 from the back side.
(See Fig. 1.)
Fig. 1.
2. Pull both sides of TOP COVER outward and then remove in the
direction as indicated by pointer ©. (See Fig. 2.)
Fig. 2.
