NAD 3020B - 3120 Exploded View

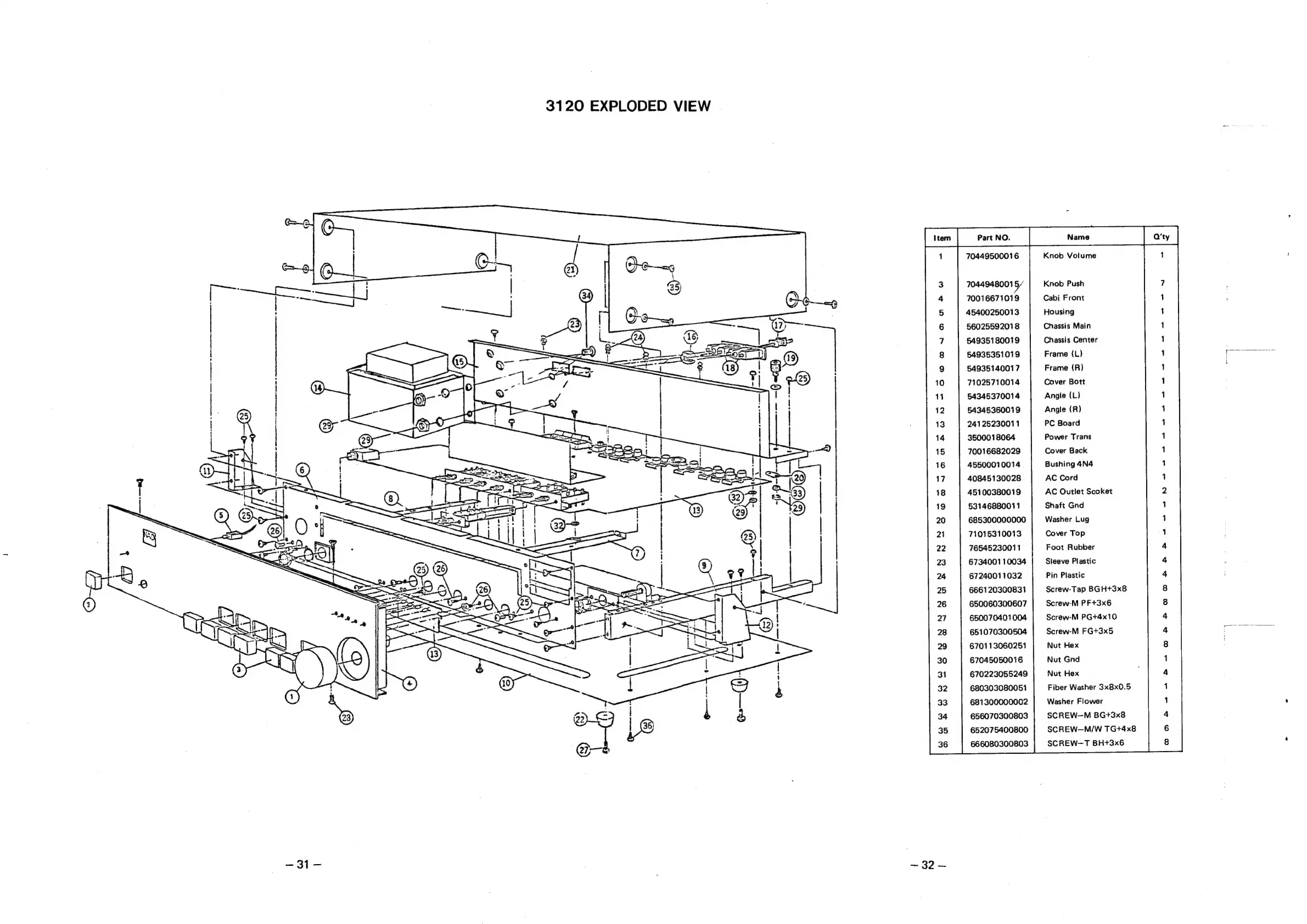

3120 EXPLODED VIEW
70449500016
7044948001 5/
70016671019
45400250013
56025592018
54935180019
54935351019
54935140017
71025710014
54345370014
54345360019
24125230011
3500018064
70016682029
45500010014
40845130028
45100380019
53146880011
685300000000
71015310013
76545230011
6734001 10034
67240011032
666120300831
650060300607
650070401004
651070300504
670113060251
67045050016
670223055249
680303080051
681300000002
656070300803
652075400800
666080300803
Knob Volume
Knob Push
Cabi Front
Housing
Chassis Main
Chassis Center
Frame (L)
Frame (R)
Cover Bott
Angle (L)
Angle (R)
PC Board
Power Trans
Cover Back
Bushing 4N4
AC Cord
AC Outlet Scoket
Shaft Gnd
Washer Lug
Cover Top
Foot Rubber
Sleeve Plastic
Pin Plastic
Screw-Tap BGH+3x8
Screw-M PF+3x6
Screw-M PG+4x10
Screw-M FG+3x5
Nut Hex
Nut Gnd
Nut Hex
Fiber Washer 3x8x0.5
Washer Flower
SCREW—M BG+3x8
SCREW—M/W TG+4x8
SCREW-—T BH+3x6
