7-1-5 Cleaning the Fibre Optic Cable
Never use any solvent products to clean the Fibre Optic Cable as the solvent
may cause irreparable damage.
1.Remove the Fibre Optic Cable as described in section 7-30 page 93
2. Wipe and clean the surface of the Fibre Optic Lens with a clean, dry, lint
free cloth.
3. Reassemble in reverse order.

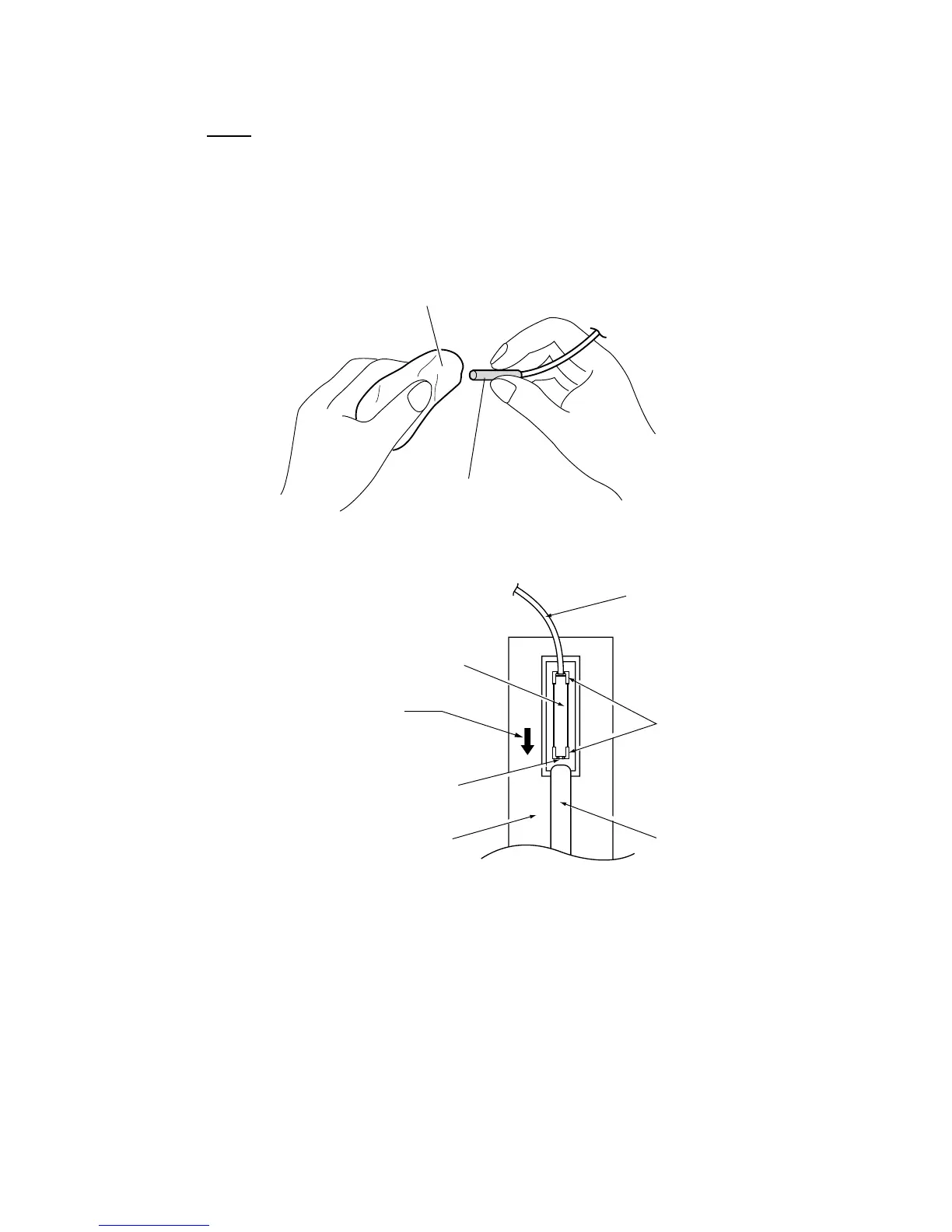

Soft, dry cloth
Fibre optic
Fiber Optic Cable
Holder
Xenon Tube
Xenon PC Board
When refitting, push the
Fiber Optic in until the end
comes into contact with
the stopper in the holder
Stopper
