NANO FONT - Module Inputs and Outputs; Control Voltage Inputs; Audio Input and Filter Outputs

NANO Modules - València 2019 ©
Inputs & Outputs
• Inputs
/CVF
Cutoff frequency control voltage. This signal
is attenuated and polarized by the
corresponding knob.
/OCT
1 V/Oct cutoff frequency control. This input is
very helpful for getting the filter frequency to
track the keyboard note.
Notice that when resonance is set to its
maximum value, with no input signal, FONT
behaves like a sine wave oscillator.
/CVR
Resonance control voltage. A voltage of +4V
starts bringing the filter to self-oscillation.
/IN
Signal input. This input is DC-coupled.
• Outputs
/LP2 | 2-pole 12 dB/octave
Passes low-frequency signals and attenuates
high-frequency signals
/BP2 | 2-pole 12 dB/octave
Passes frequencies within a certain range and
attenuates frequencies outside that range.

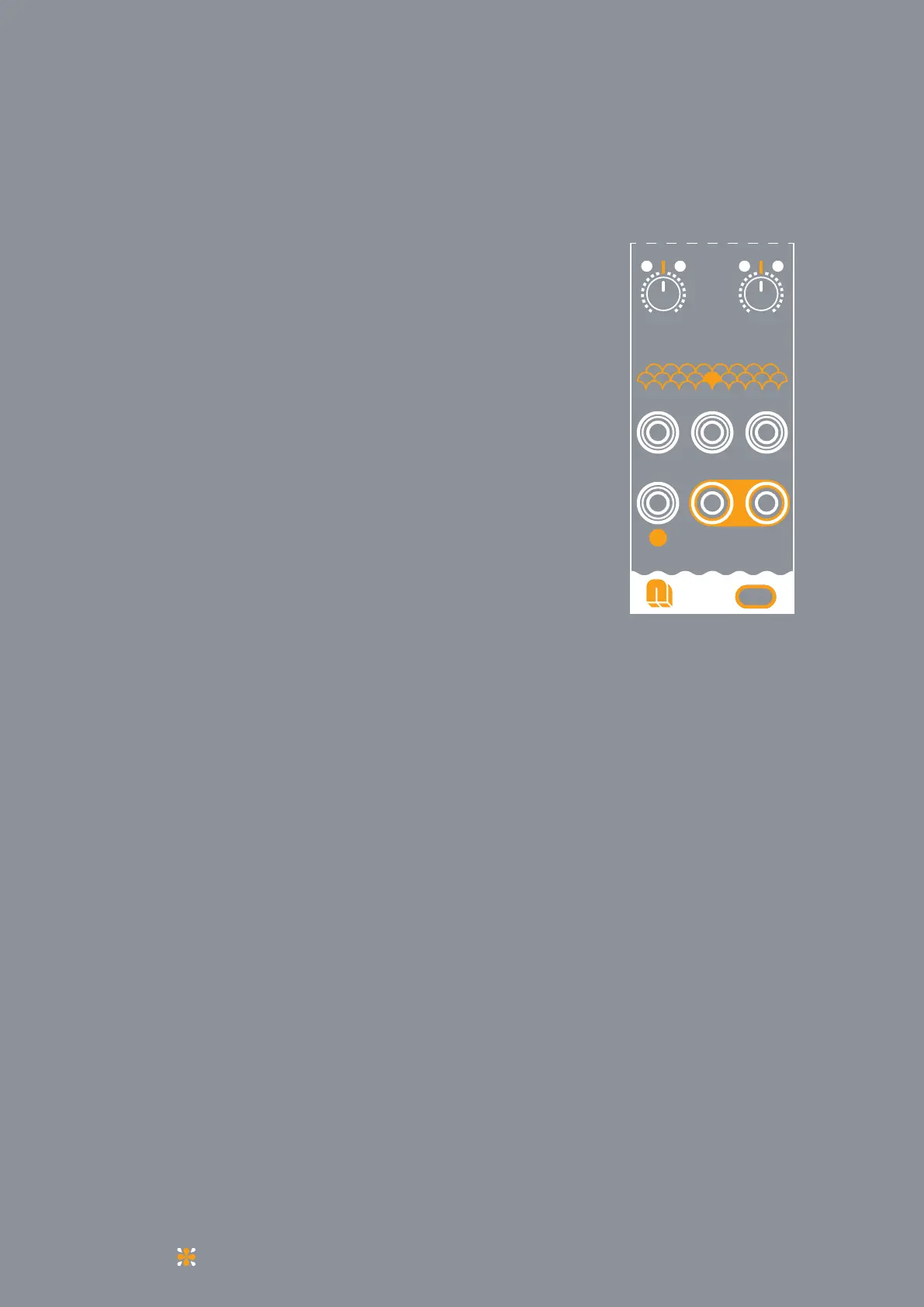

FONT
CVF CVR
FREQ
RES
+-
+-
CVF
LP2 BP2
CVROCT
IN
