NANOTEC SMCI36 User Manual

Technical Manual
SMCI36
Connecting and commissioning
2.2 Stepper motor

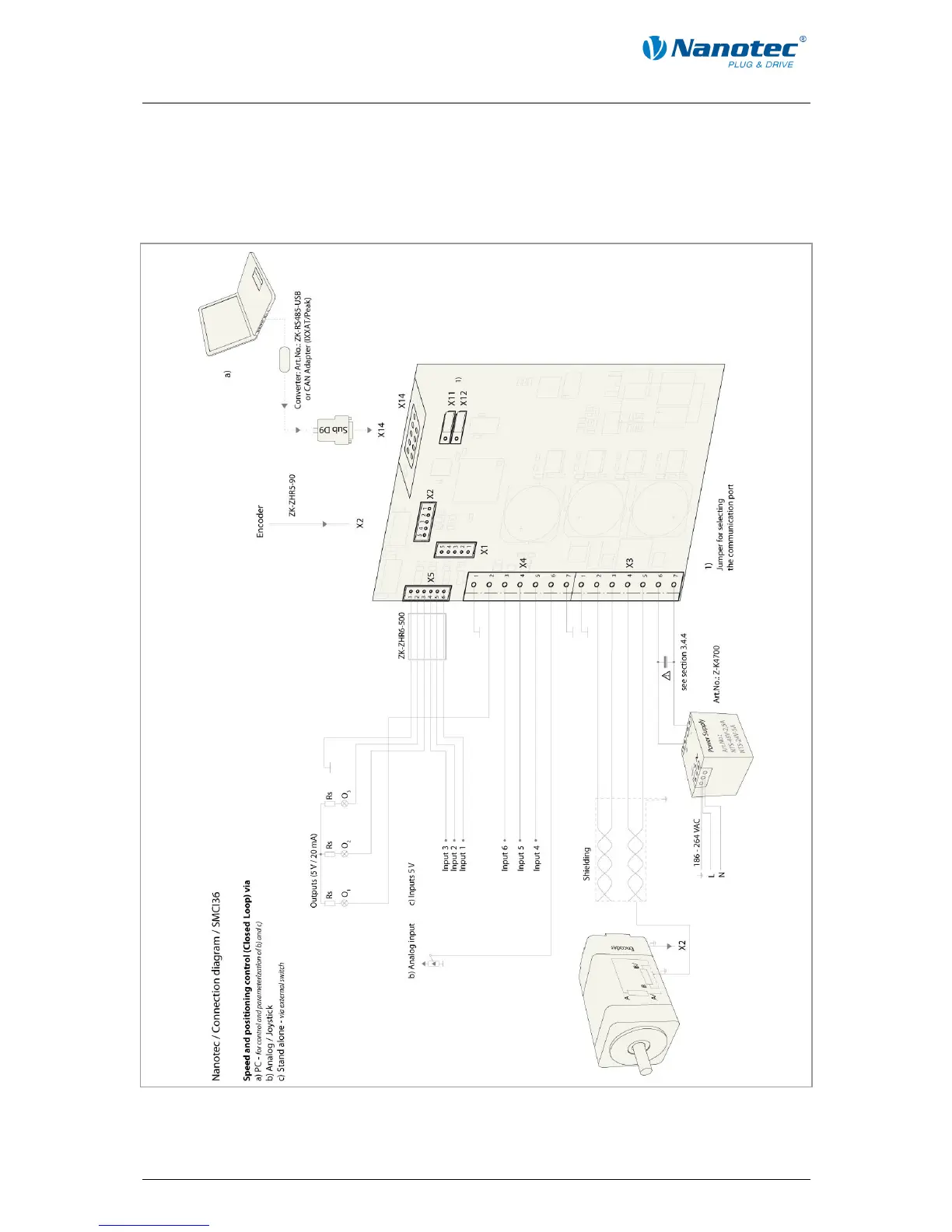

Connection diagram
To operate a stepper motor using the SMCI36, the wiring must be implemented
according to the following connection diagram.
8 Issue: V 1.0
The pin configuration for the motor can be found on the motor data sheet, which can
be downloaded from www.nanotec.de.
