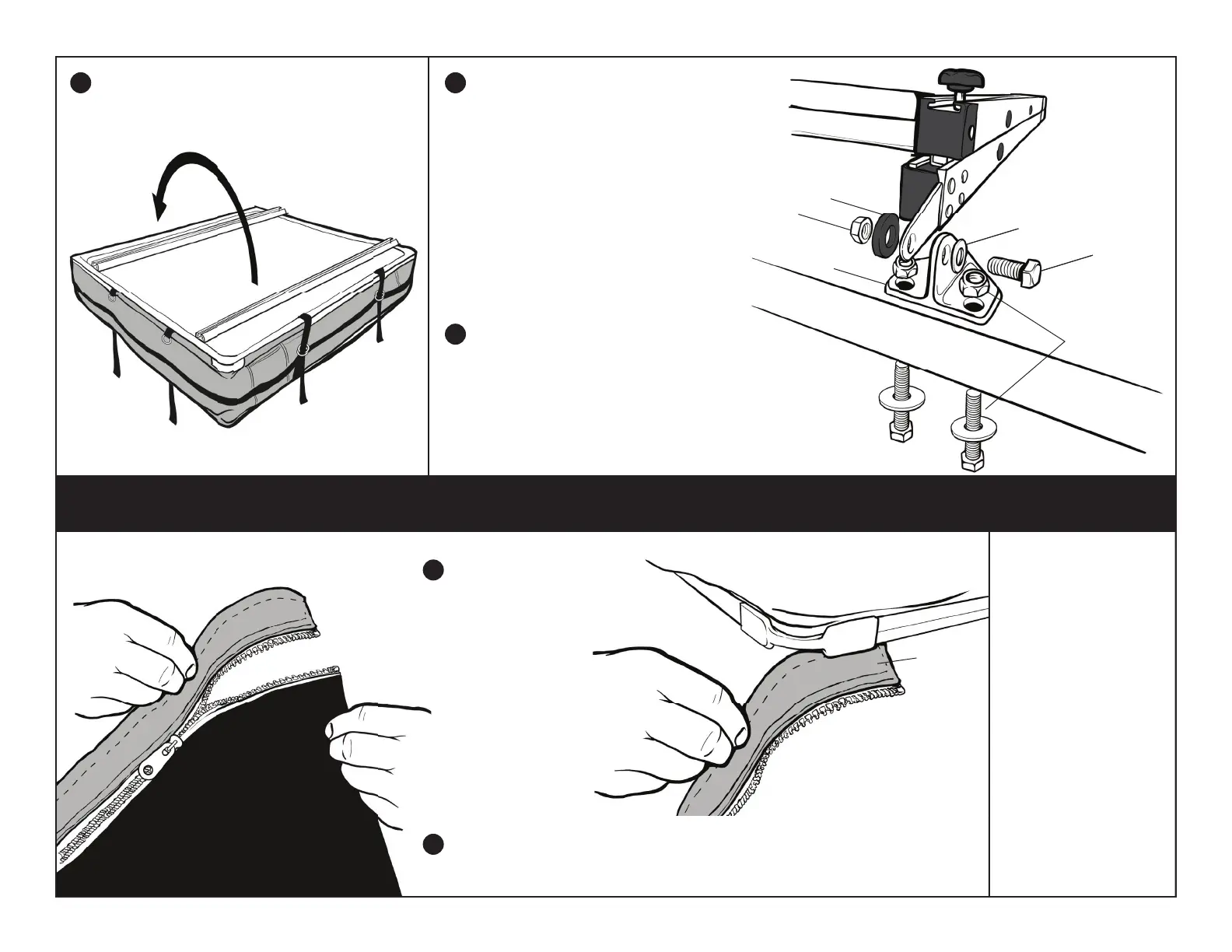

COVER ATTACHMENT
A) Secure the two long-looped straps.
Flip the tent base over.
4
B) Undo the two long-looped straps.
Fasten the ladder brackets (i) to the holes
near the end of the tent base using the bolts
on the ladder brackets; 13mm steel bolt,
washer and nut (ii).
C) Slide the bolts between the mattress and
the base. You will need to pass each one
through the following: the steel washer, the
hole in the tent base, and the ladder
bracket—secure with a nylon lock nut.
4
Attach the ladder by using the supplied
10mm x 20mm bolt (iii). Pair with a steel
washer (iv) and rubber washer (v), then
fasten to the side holes of the ladder bracket
and the hole on the ladder using a nylon lock
nut (vi). Secure the ladder with Velcro strap.
5
Place the black cover over top of the tent. Close the cover with the zipper, ensuring no
fabric gets caught along the way. Fasten the long loop straps on either side of the ladder.
A) Unzip black cover
from fabric portion.
B) Feed the fabric
portion of the cover
into the rounded
channel. Slide through
until all fabric is
secured in the channel
(on three sides).
6
7
2
Steps 1-6
first time
use only
Steps 1 - 6 are for
first time use only
and do not need to
be repeated or
disassembled. Once
these steps are
complete, your tent
is ready to be
installed on your
vehicle.
(i)
(ii)
back side
of fabric
(iii)
(iv)
(v)
(vi)
