NARDINI MASCOTE MS-175E - Oil Change Procedures

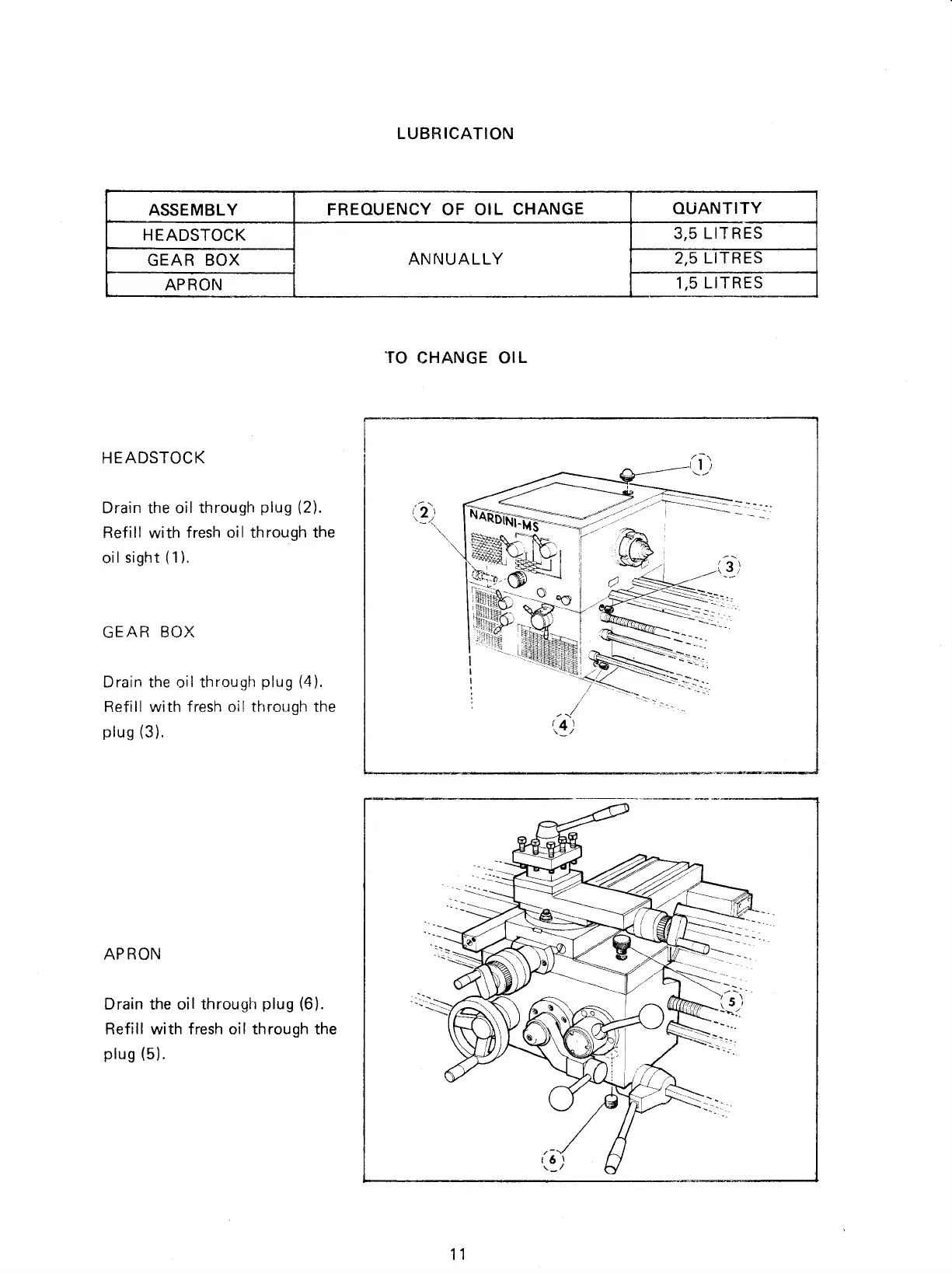

LUBRICATION
TO
CHANGE
OIL
HEADSTOCK
Drain the oil through
plug
(2).
Refill with
fresh oil through the
oil
sight
(1).
GEAR
BOX
Drain the
oil
through
plug
(4).
Refill with fresh oil through the
plus
(3).
APRON
Drain the oil through
plug
(6).
Refill with fresh oil through the
plus
(5).
ASSEMBLY
FREOUENCY OF OIL
CHANGE
OUANTITY
HEADSTOCK
ANNUALLY
3,5 LIT RES
GEAR BOX
2,b
Lt I Hh
APRON
1,5 LITRES
11
