NARDINI MASCOTE MS-175E - Chip Guard

o!
(o
./lo7l
-to7?
__=to73
---
lO74
-1
lt
I
a
il
)77

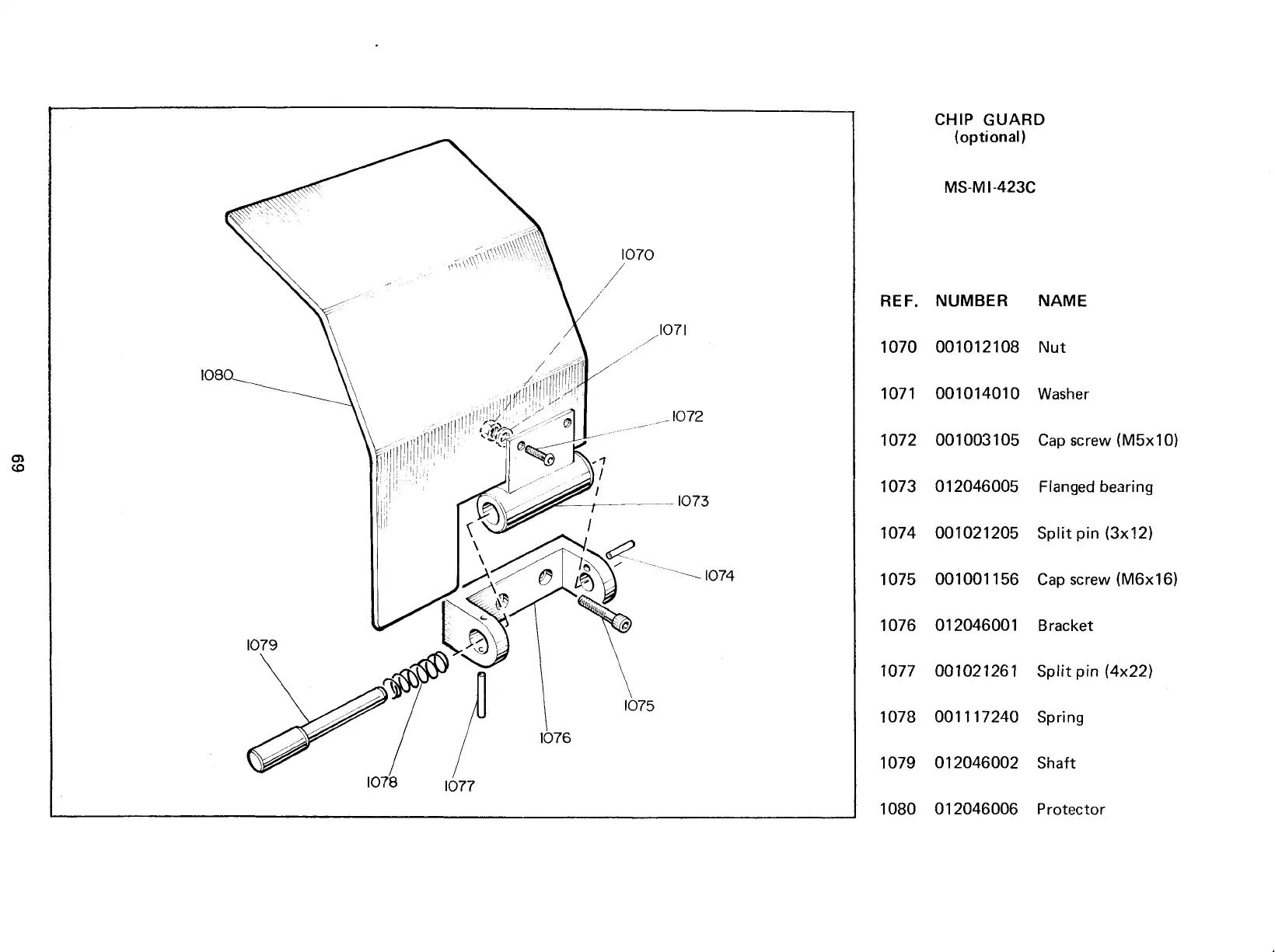

CHIP
GUARD
(optional)
MS-Mt-423C
REF.
NUMBER NAME
1070 001012108 Nut
1O71 001014010
Washer
1072 001003105 Cap screw
(MSx10)
1073
012046005
Flanged bearing
1074 OO1O212O5
Split
pin
(3x12)
1075
001001156
Cap
screw
(M6x16)
1076 012046001 Bracket
1077 001021261
Split
pin
(4x221
1078
O41117240
Sprins
1079
012046002
Shaft
1080 012046006 Protector
