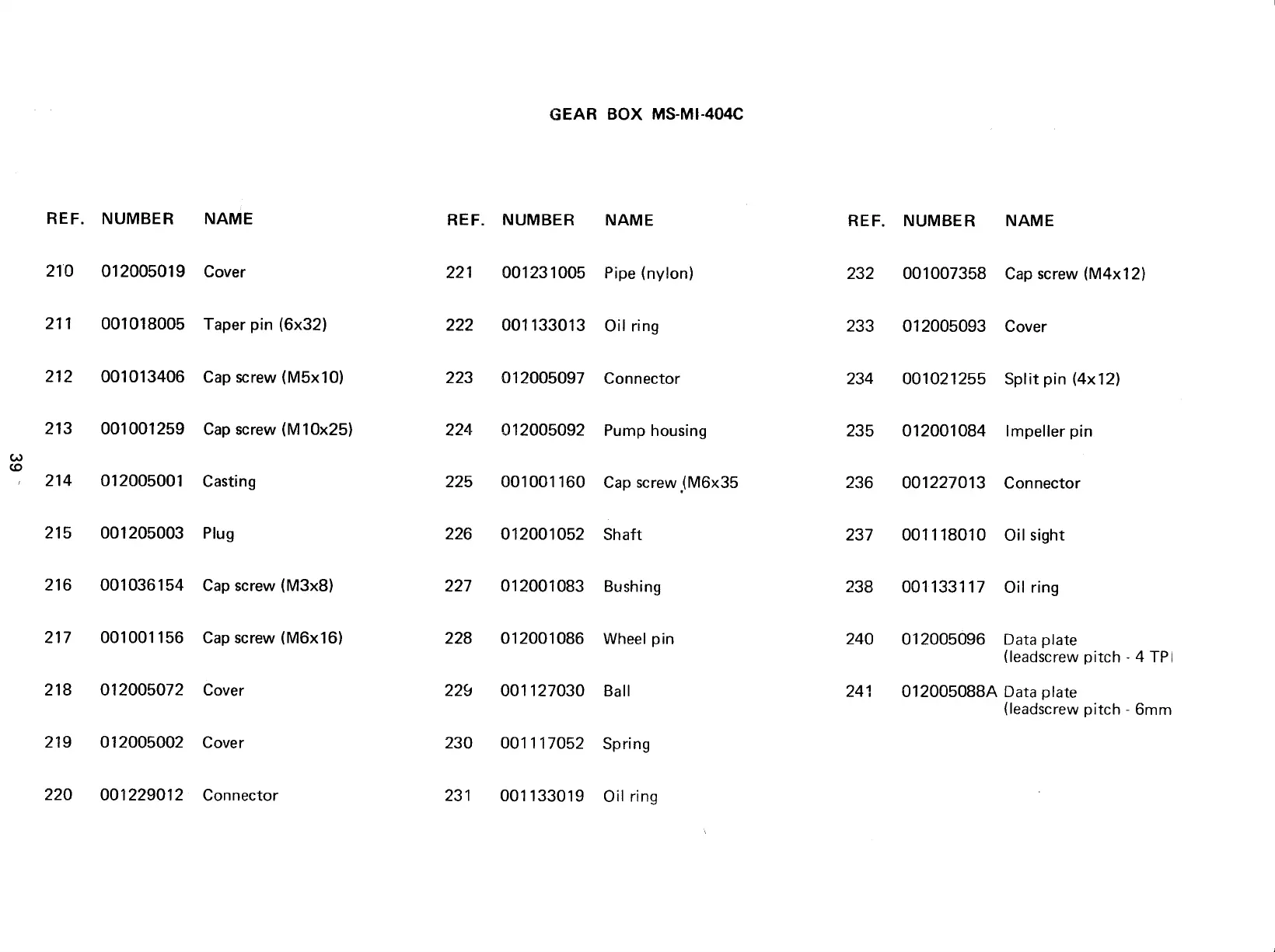

NARDINI MASCOTE MS-175E - Page 39

GEAR
BOX MS-MI.4O4C
(^)
(o
REF. NUMBER
210
012005019
211
001018005
212 001013406
213 001001259
214 012005001
215 001205003
216 001036154
217 001001 156
218 012005072
219 012005002
220
001229012
NAME
Cover
Taper
pin
(6x32)
Cap screw
(M5x10)
Cap screw
(M10x25)
Casting
Plug
Cap screw
(M3x8)
Cap screw
(M6x16)
Cover
Cover
Connector
REF. NUMBER
221 001231005
222 001 133013
223 012005097
224 012005092
225 001001 160
226 012001052
227
012001083
228 012001086
229 001 127030
230 001117052
231 001 133019
NAME
Pipe
(nylon)
Oil ring
Connector
Pump housing
Cap
screw
1M6x35
Shaft
Bushing
Wheel
pin
Ball
Spring
Oil
ring
REF. NUMBER NAME
232 001007358
Cap screw
(M4x12)
233 012005093 Cover
234 001021255 Split
pin
Ax12l
235 012001084 lmpeller
pin
236
OO1227O13
Connector
237 001118010
Oil
sisht
238
001 1331 17
Oil rins
24O
012005096 Data
plate
(leadscrewpitch-4TPl
241 0120050884 Data
plate
(leadscrew
pitch
-
6mm
