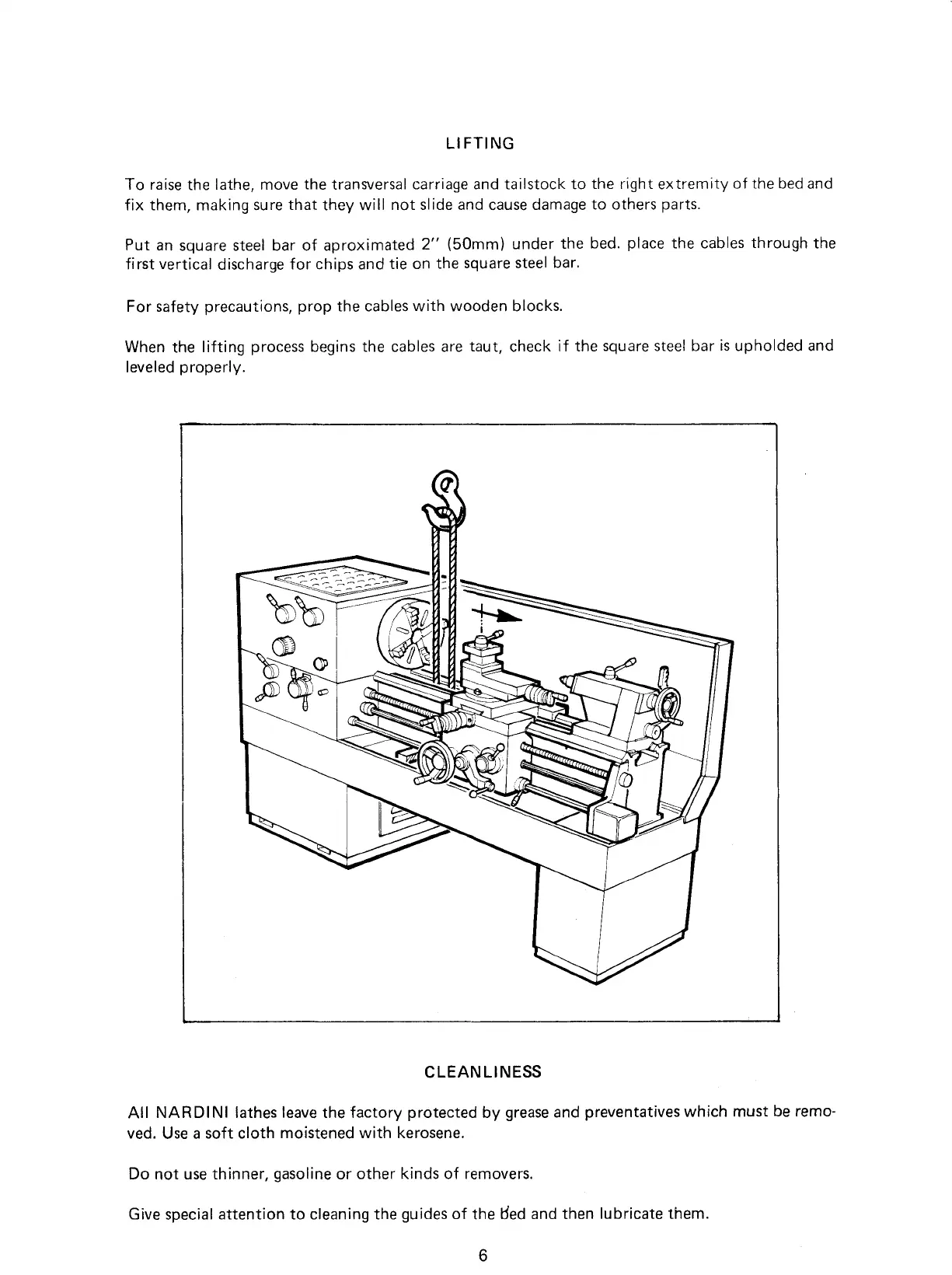

LIFTING
To raise
the
lathe, move
the
tranwersal
carriage and tailstock to
the right
extremity
of
the bed
and
fix
them, making sure
that
they will
not slide and
cause
damage
to others
parts.
Put
an square steel bar of aproximated
2"
(50mm)
under
the
bed,
place
the cables
through
the
first
vertical
discharge
for chips and
tie on
the
square steel
bar.
For safety
precautions,
prop
the cables with wooden blocks.
When
the
lifting
process
begins the cables are
taut,
check
if the
square
steel
bar
is
upholded and
leveled
properly.
CLEANL]NESS
All
NARDINI lathes
leave
the factory
protected
by
grease
and
preventativeswhich
must
be remo-
ved.
Use a
soft cloth
moistened with kerosene.
Do
not
use thinner,
gasoline
or other
kinds of removers.
Give
special
attention to cleaning the
guides
of
the ded
and then
lubricate them.
