NARDINI MASCOTE MS-175E - Page 67

o,
{
to22
l
s
to23

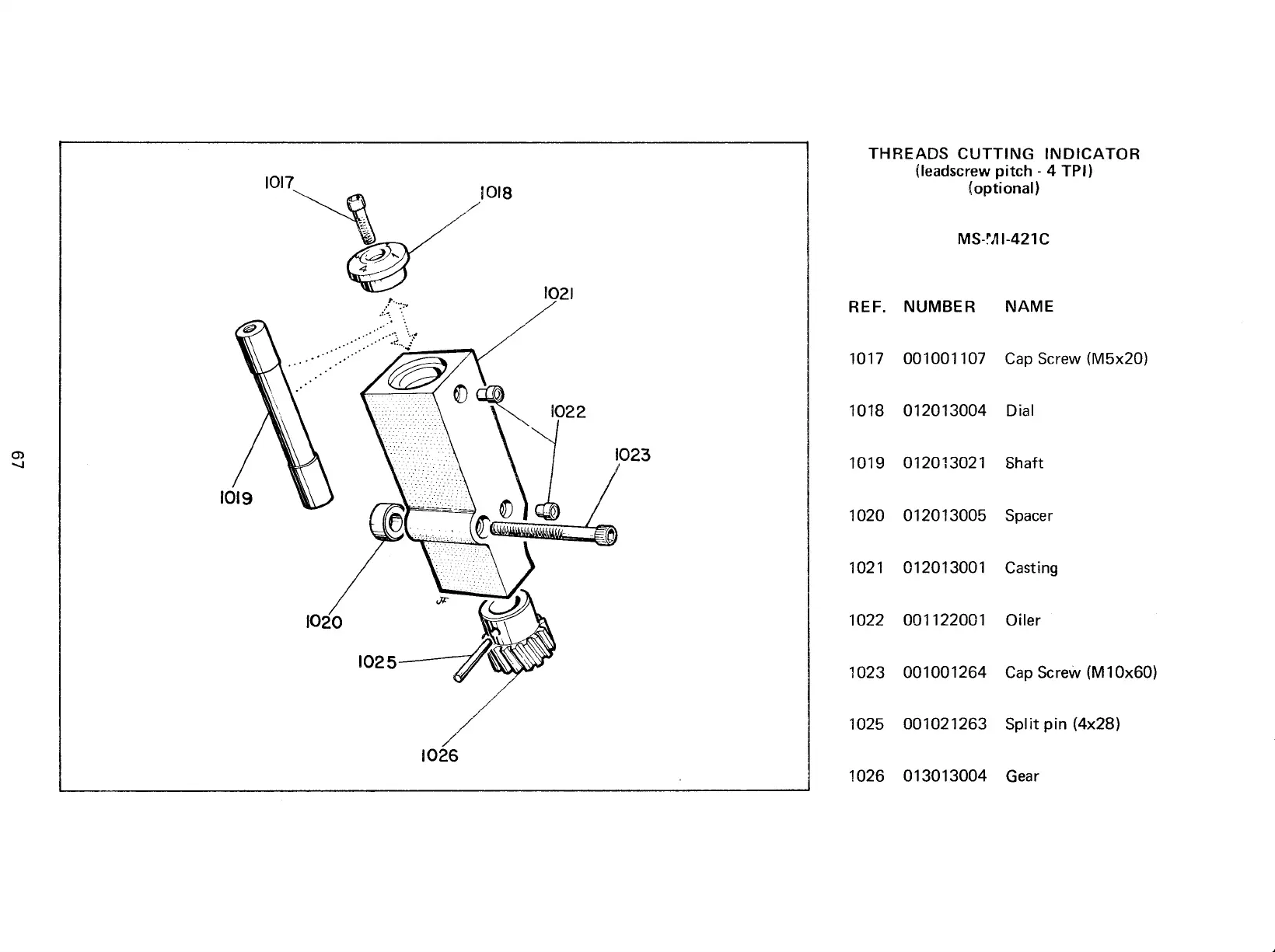

THREADS CUTTING INDICATOR
ileadscrew
pitch
-
,1
TPI)
{oPtional}
MS-l/il-421C
REF.
NUMBER
1017
001001 107
1018 012013004
1019
012013021
1020 012013005
1021 012013001
1022 0011220A1
1023 001001264
1025
001021263
1026 013013004
NAME
Cap Screw
(M5x20)
Dial
Shaft
Spacer
Casting
Oiler
Cap Screw
(M10x60)
Split
pin
(4x281
Gear
