National Instruments Ettus E3 Series User Manual

Ettus E3XX Getting Started Guide ANGRYVIPER Team

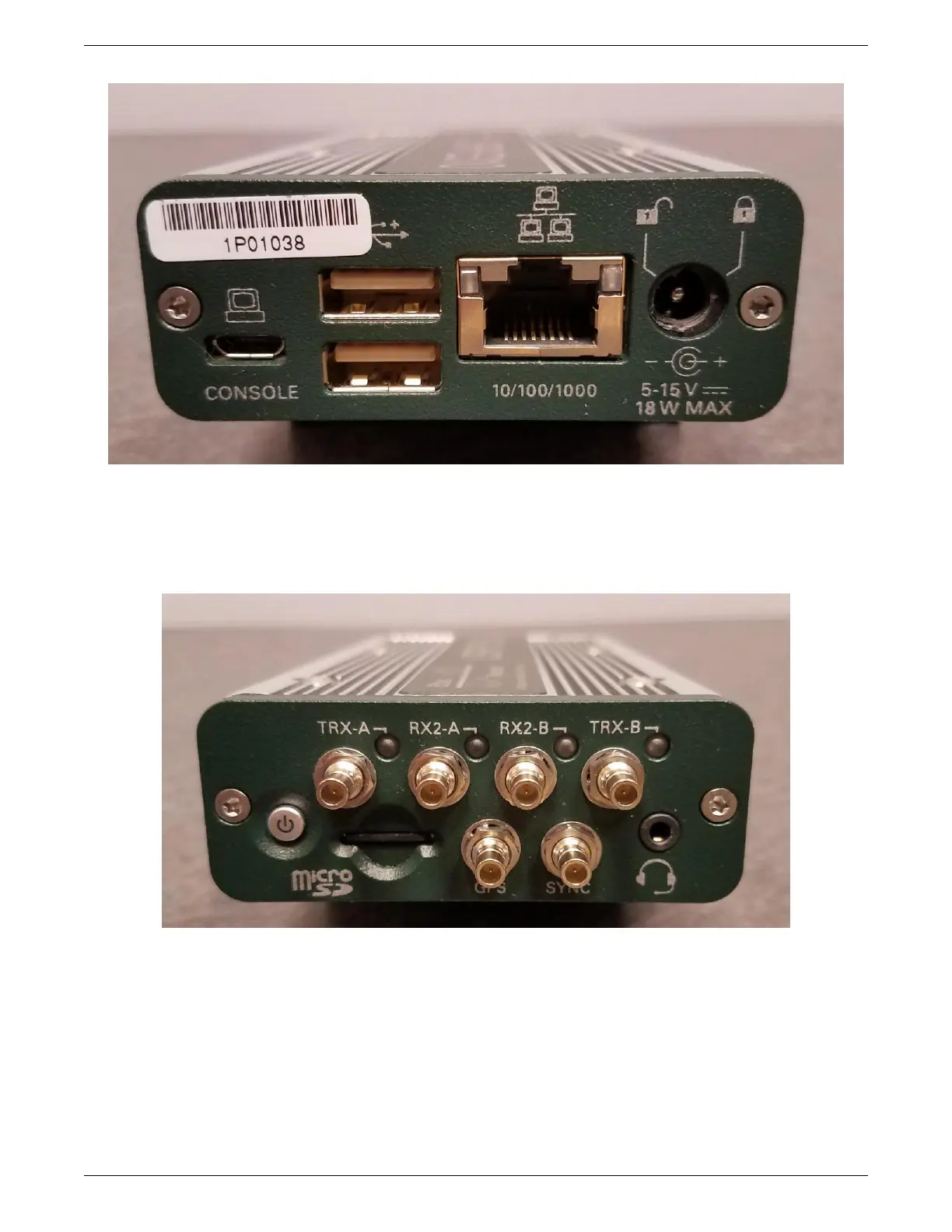

Figure 2: Back Panel
• Ethernet cable: An Ethernet port is available on the E310 (Figure 2) and is required when the Network
mode (discussed later) environment is used. The OpenCPI BSP for the E310 is configured for DHCP.
Figure 3: Front Panel
• Access to a network which supports DHCP. (Network Mode)
• SD card: As mentioned earlier, a 4GB or larger SD card should come with the SDR. The bootable SD card
slot is located on the front of the unit (Figure 3) and ejects by gently pushing it in and releasing.
• SD card reader
• Further information on front panel: Also found on the front panel of the SDR are six labeled SMB (50
Ohm) connectors: TRX-A, RX2-A, RX2-B, TRX-B, GPS, and SYNC (Figure 3). The upper connections are
