NI 6601/6602 Calibration Procedure 6 ni.com
3. Route the 10 MHz stable clock of the PXI-6608 onto PFI_35.
a. Configure counter 1 on the PXI-6608 to perform simple event
counting.
b. Configure the source of counter 1 as RTSI line 0.

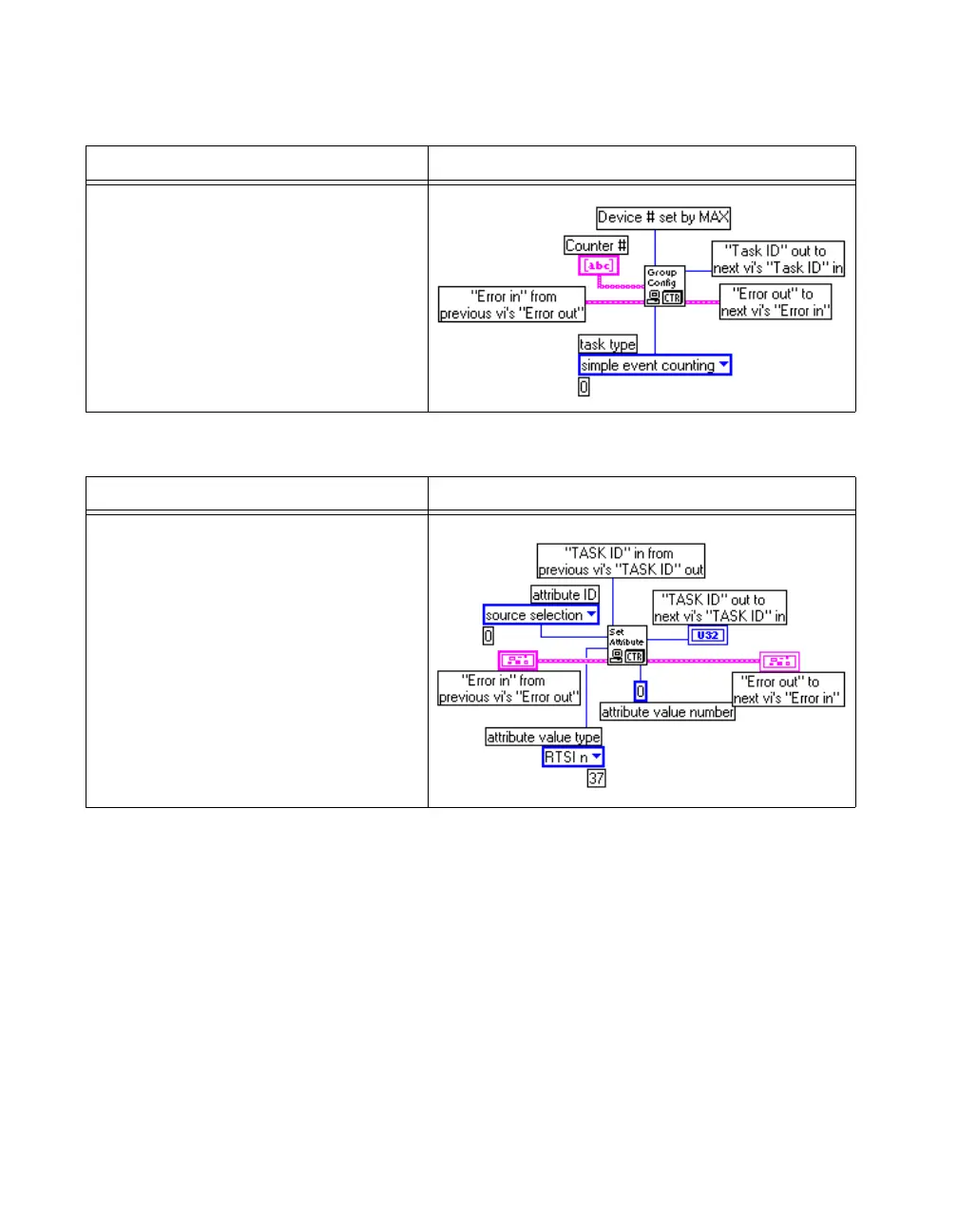

Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call GPCTR_Set_Application with the
following parameters:
deviceNumber: The value set by
Measurement & Automation Explorer
(MAX)
gpctrNum:
ND_COUNTER_1
application: ND_SIMPLE_EVENT_CNT
Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call GPCTR_Change_Parameter with
the following parameters:
deviceNumber: The value set by MAX
gpctrNum:
ND_COUNTER_1
paramID: ND_SOURCE
paramValue: ND_RTSI_0
