c. Route the stable 10 MHz clock on the PXI-6608 onto RTSI line 0.
d. Configure the source of counter 1 to be available on PFI line 35.

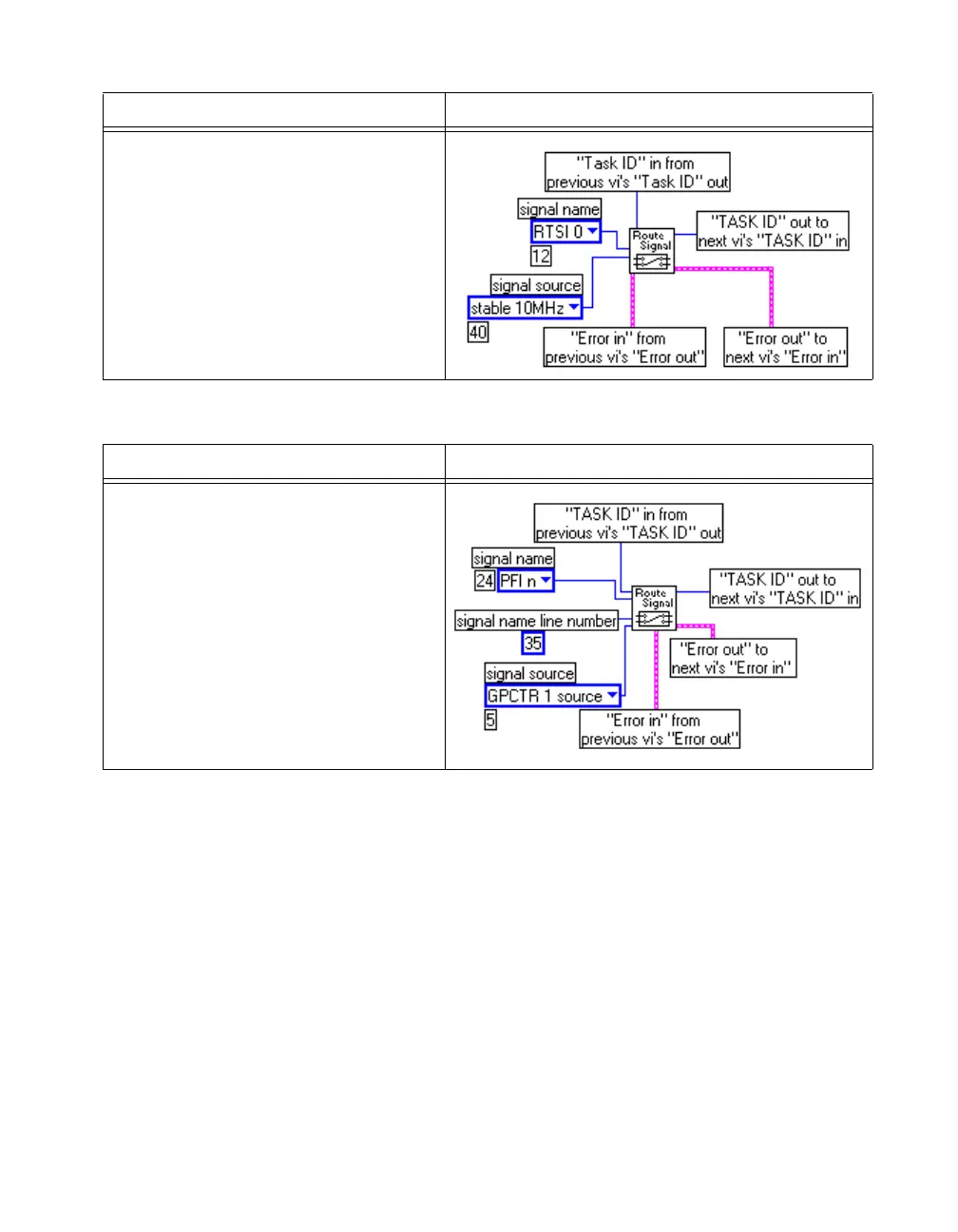

Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call Select_Signal with the following
parameters:
deviceNumber: The value set by MAX
signal:
ND_RTSI_0
source: ND_STABLE_10_MHZ
sourceSpec: ND_DONT_CARE
Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call Select_Signal with the following
parameters:
deviceNumber: The value set by MAX
signal:
ND_PFI_35
source: ND_GPCTR1_SOURCE
sourceSpec: ND_DONT_CARE
