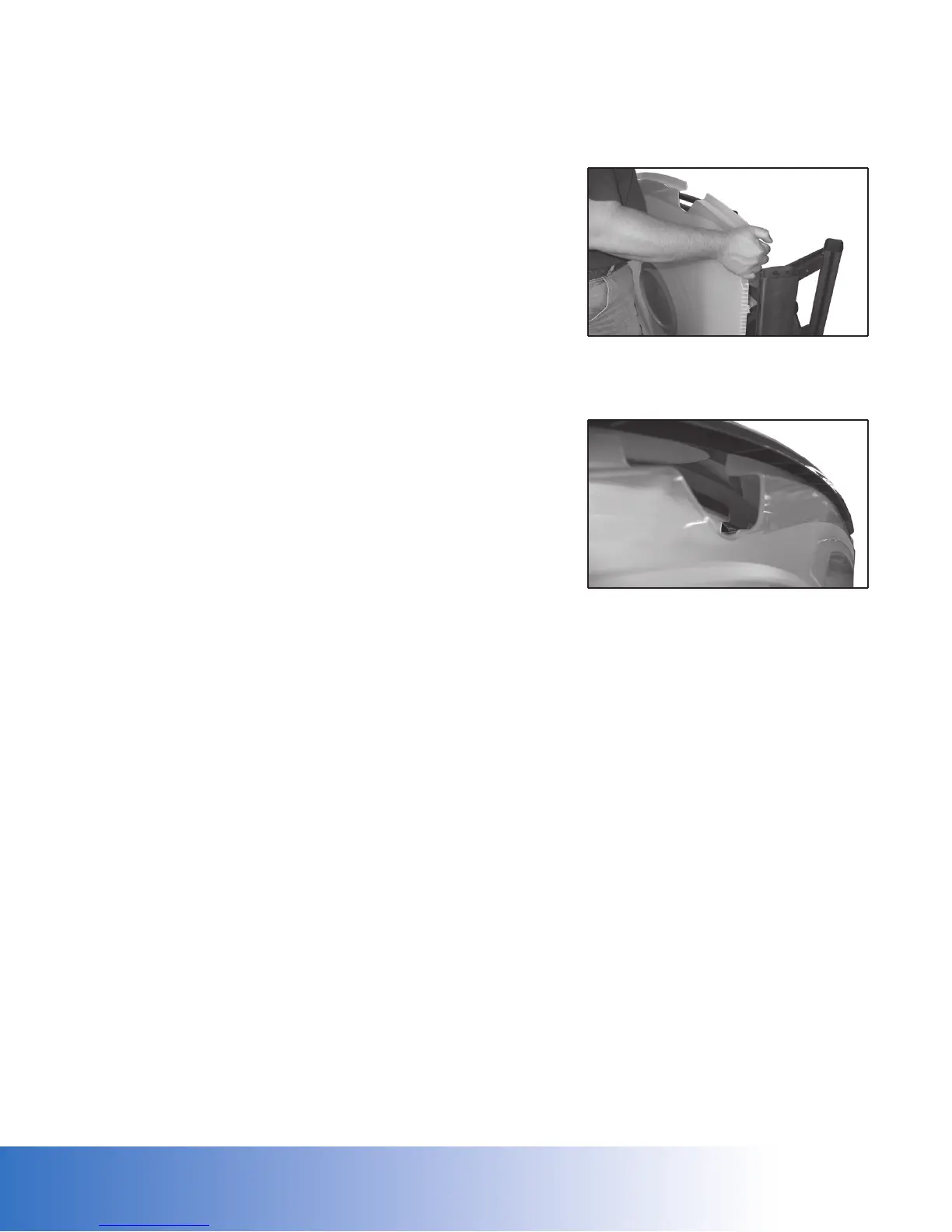

Figure 8
Figure 9
Step 2. Re-install The Outside Shroud
(Figure 5)
2-1 Position the outside shroud against the frame so
that the tabs align with the P-slots;
2-2 Carefully insert both the front and back tabs into
the P-slots;
2-3 Push down on the tabs until they are seated at the
bottom of the P-slots.
Note: when the tabs are properly aligned in the P-slots,
the shroud should drop down into the slots with minimal
resistance. Take care not to force the shroud downward
or the tabs may break off!
Step 3. Re-install The Rear Shroud
(Figure 4)
3-1 Position the rear shroud against the frame so that
the bottom tab aligns with the slot in the frame;
3-2 Secure the shroud to the frame using the (1) 1/4-20
button head screw. Use a 5/32 allen wrench to
tighten.
Step 4. Re-install The Top Cover
(Figures 2 and 9)
4-1 Position the top cover against the side shrouds so
that the front tab aligns with the slot;
4-2 Lower the cover onto the shrouds making sure that
the top edges of the shrouds align with the slots on
each side of the cover;
Note: to ensure the top cover is properly installed, push
inward on the top edges of the side shrouds; the shrouds
should not move inward. If the shrouds can be pushed
inward, lift the cover up and re-align the top edges.
4-3 Secure the cover to the frame using the (2) 1/4-20
button head screws. Use a 5/32 allen wrench to
tighten.
assembly questions? call 800-235-2233 for help.
