INSTALLATION INSTRUCTIONS
Nautilus P3 Handle Position and
Valve Routing Information

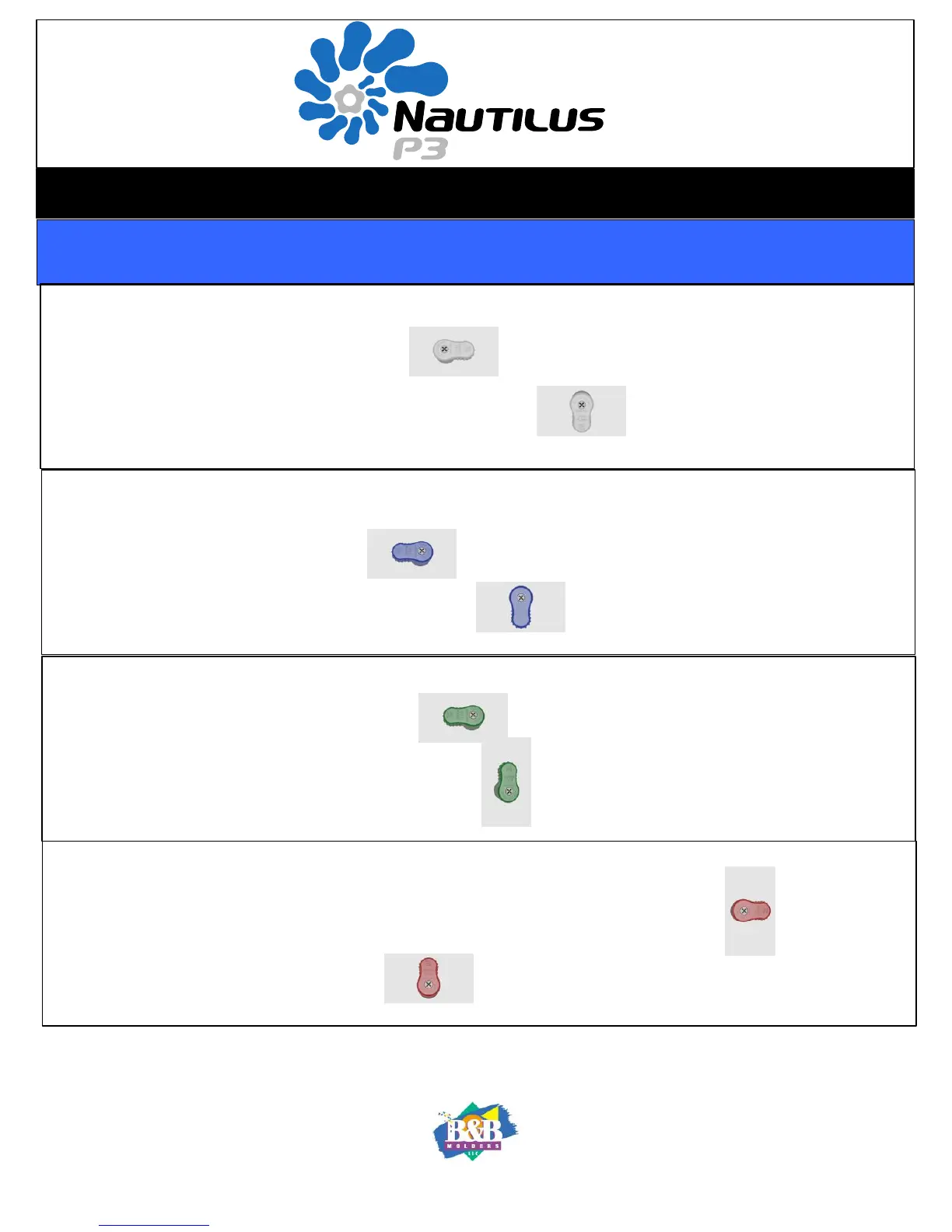

BLUE HANDLE: Receives water from the white handle valve/water inlet on front of panel
Sideways - water goes to fixtures (cold)
Down – water will go to or come from fresh water tank
58471 Fir Road, Mishawaka, IN 46544
Phone: (574) 259-7838 Fax: (574) 259-7939
www.bandbmolders.com
USER INSTRUCTIONS
WHITE HANDLE: Receives water from water inlet on front of panel
Sideways - water goes to pump inlet
Down – water goes into blue handled diverter
GREEN HANDLE: Is an on/off flow through valve that feeds pump from fresh water tank
Sideways - water will not flow through valve
Up – water will go to or come from fresh water tank
RED HANDLE: Receives water from cold water supply line
Sideways - water goes to hot water fixtures without going through hot water heater
Up – water goes to hot water heater
