NA30C
FUSE
When replacing the fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse could
damage the radio.
The NA30C uses one
30 amp ATM fuse located
in-line.

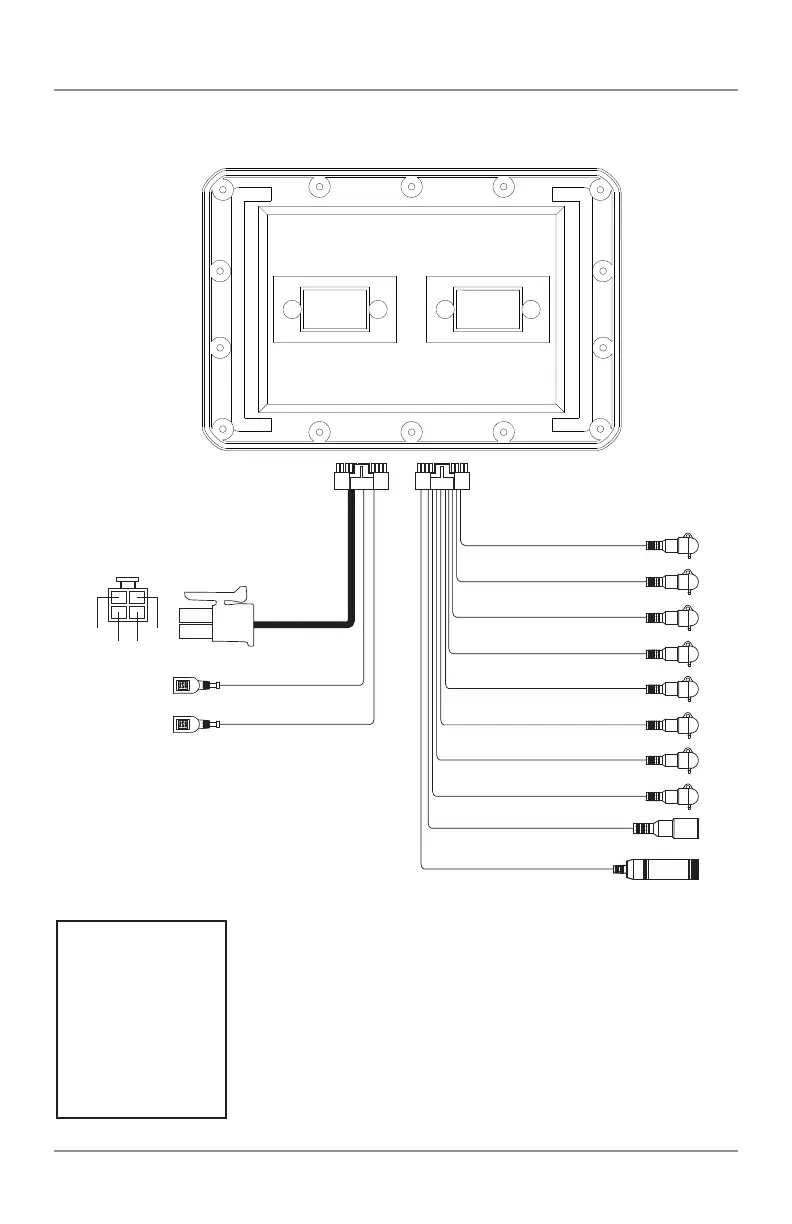

Wiring Diagram
BLACK----POWER CABLE
BLACK /RED----USB CHARGE (ONLY)
BLACK----USB PLAYBACK (ONLY)
BROWN/WHITE----FRONT LEFT CH
BROWN/RED----FRONT RIGHT CH
GRAY/WHITE----REAR LEFT CH
GRAY/RED----REAR RIGHT CH
BLACK/GREEN----SUB LEFT
BLACK/GREEN----SUB RIGHT
GRAY/VIOLET----CAMERA IN
BLACK----DIGITAL OUT
GRAY/RED----AUX IN
BLACK----ANTENNA INPUT(AM/FM )
GND(-)
REVERSE (+) REMOTE (+)
ACC (+)
* Rear view camera is sold separately.
** Digital output is designed to work for all amplied
Navatlas products only.
*
**
To Next Page
