2. Rack Assembly

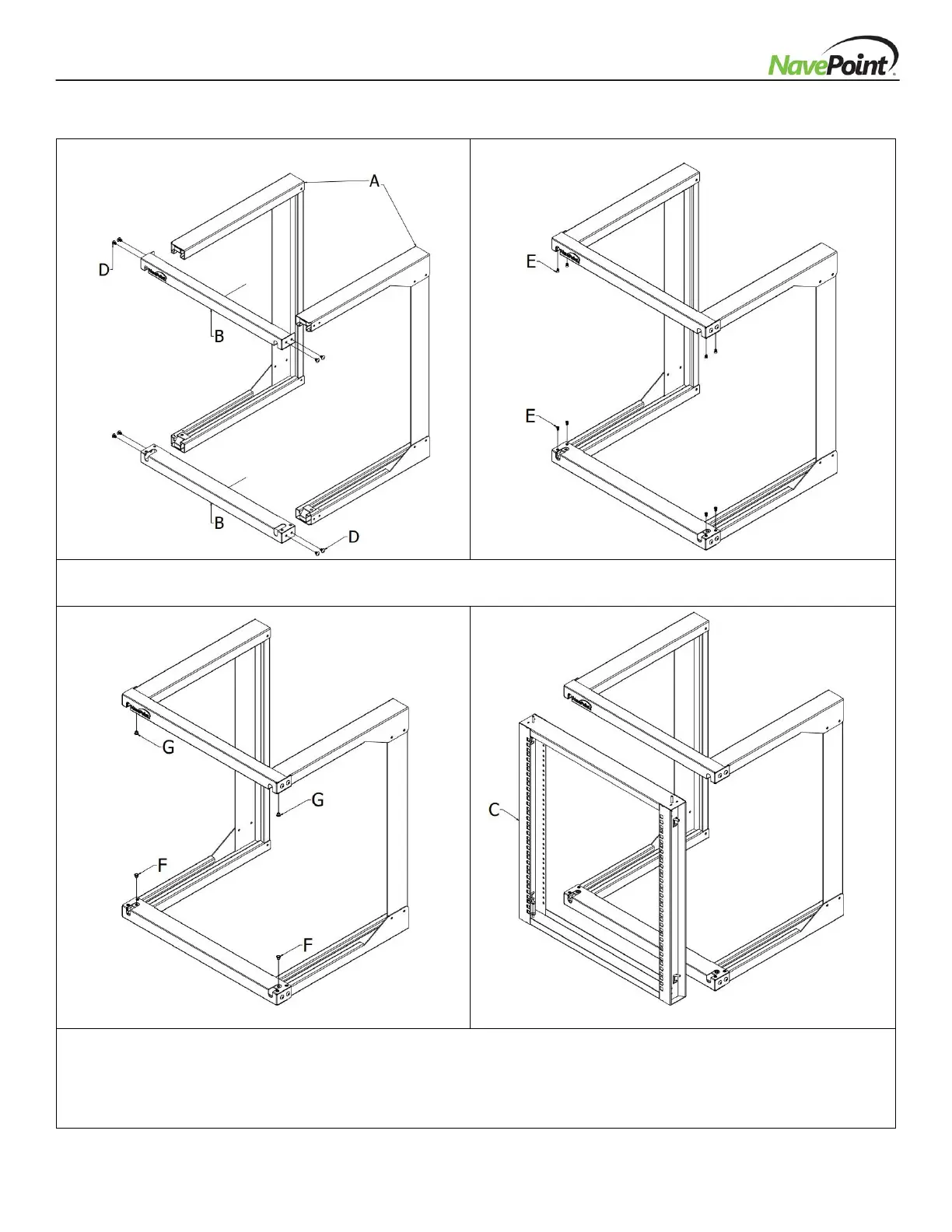

STEP 1. Attach the 2 Horizontal Support Bars (B) to the Wall Mounting Frames (A) using 8 M5 Screws (D).
STEP 2. Secure them with 8 M4 Screws (E).
STEP 3. Insert 2 Bottom Metal Sleeves (F) into the holes on the Horizontal Support Bar (B) on the Bottom
side. Insert 2 Sleeves (G) into the holes on the Horizontal Support Bar (B) on the Top side.
STEP 4. Secure Equipment Mounting Frame (C) to the built frame, make sure the latch pins click into both
top and bottom metal sleeves.
