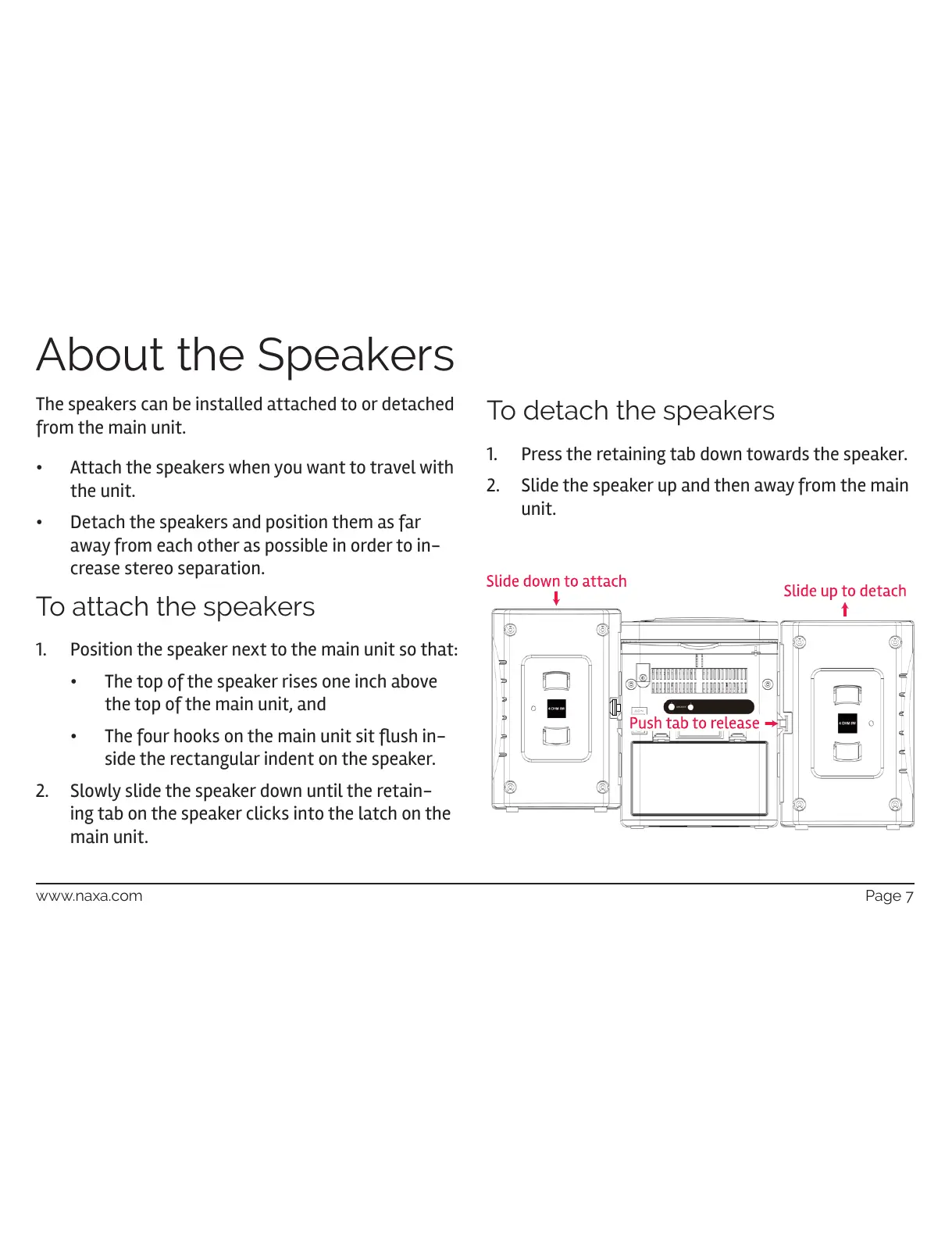

About the Speakers
The speakers can be installed attached to or detached
from the main unit.
• Attach the speakers when you want to travel with
the unit.
• Detach the speakers and position them as far
away from each other as possible in order to in-
crease stereo separation.
To attach the speakers
1. Position the speaker next to the main unit so that:
• The top of the speaker rises one inch above
the top of the main unit, and
• The four hooks on the main unit sit ush in-
side the rectangular indent on the speaker.
2. Slowly slide the speaker down until the retain-
ing tab on the speaker clicks into the latch on the
main unit.
To detach the speakers
1. Press the retaining tab down towards the speaker.
2. Slide the speaker up and then away from the main
unit.
